Switch v2 motherboard issue with right joy-con

Nintendo Questions Nintendo Switch
1

Hello,

Some time ago my Switch fell down and since then the right joy-con won’t be recognised as attached. I thought it was an issue with the joy-con itself, but tried replacing it and then the rail, but the problem persisted. Then I decided to inspect the motherboard and found that there is an open pad where I suspect there should be a component. The motherboard model is the HAD-CPU-01, which I think is different from the HAC one in this regard.

I can’t upload files, but my board has three small components and an open pad below the connector where the right joy-con rail flex cable is attached.

I would like to know if there should be a component over there and, if so, what should it be.

Thank you in advance.

2

v2_BQ
v2_BQ1920×1437 232 KB

where exactly you are missing components/

1 Like
3

upload your image to imgur or elsewhere then link the url here in the format as https:_//xxx(dot)com/xxx

1 Like
4

Here is the picture:

https:_//imgur(dot)com/a/o79k8V3

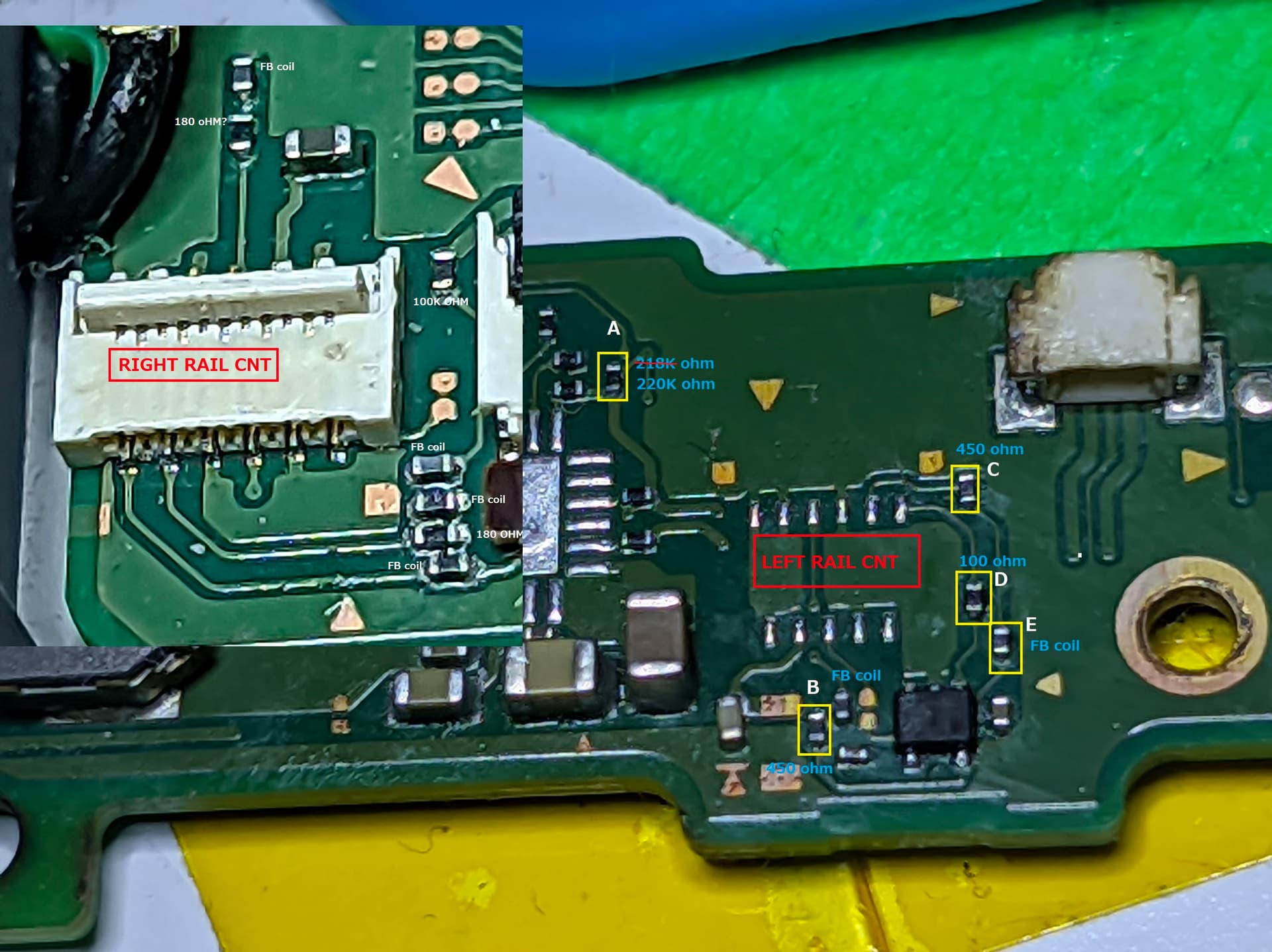

Here’s what I’ve found:

First and second components offer no resistance;
Third one is a 180 Ω resistance;
Fourth one is an empty pad.

5

So it’s an FB coil that I’m missing, thank you!

6

you could just make a blob of solder combine two pads together instead of finding a same value FB coil(unless you have a donor board then NVM)

1 Like
7

Hello again, I’ve made the blob of solder, but now the console won’t turn on. I’ve tested for voltages in the battery (4.1 V) and the PMIC (~3 V). It’s been charging for an hour.

8

picture of your solder work?
does console turn on after you remove the blob of solder?

9

Picture: https:_//imgur(dot)com/a/qOBZkCe

Console doesn’t turn on after removing the blob.
