3,3v and 1,8v standby missing - doesn't start no beep - EDM 010 digital edition

PS5 Questions
1

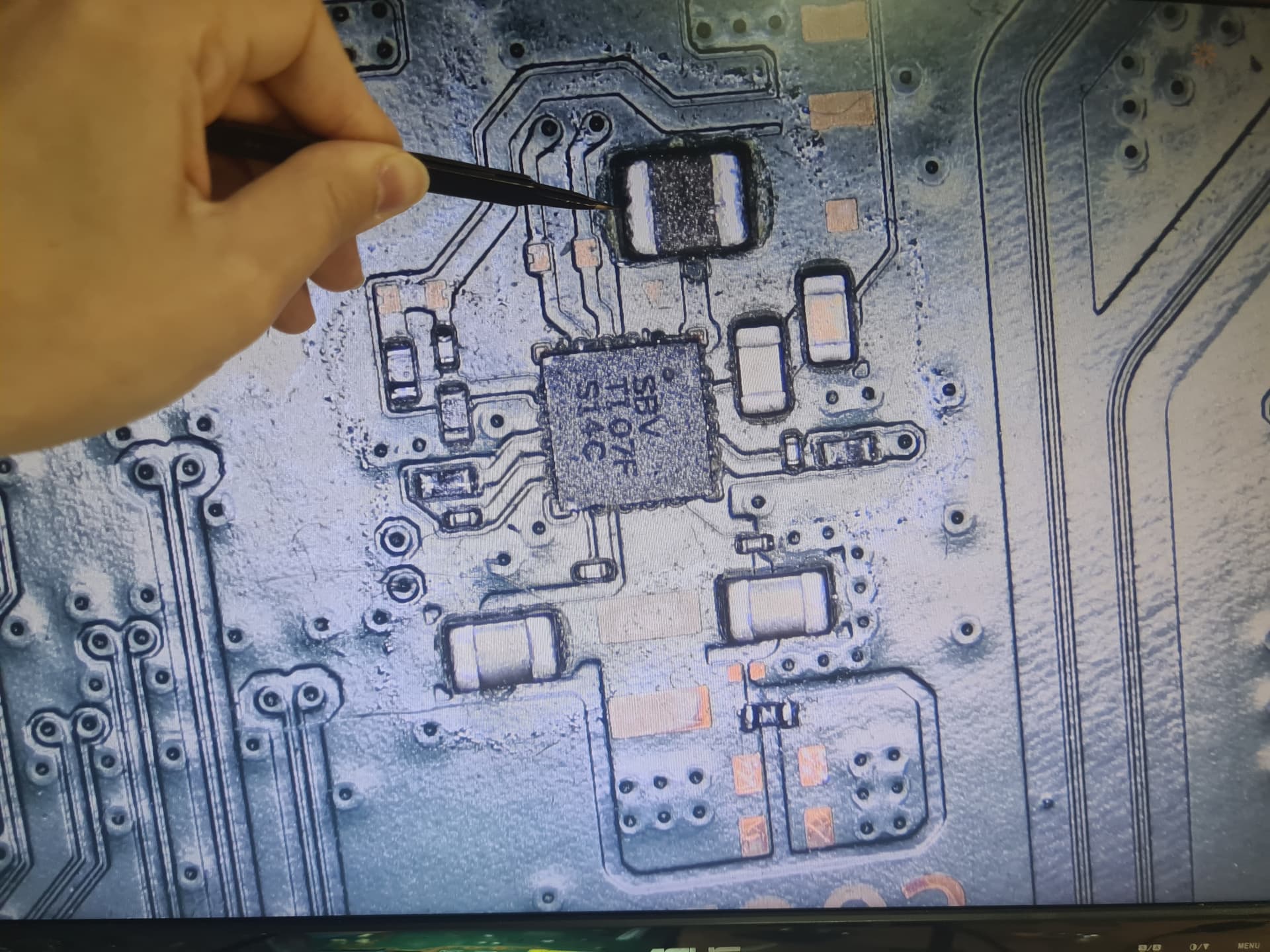

I have a EDM 010 digital edition which doesn’t beep and power up. No shorts whatsoever. F3501 was blown but there was no short on either side of the fuse. 12v is present on both sides. EverY other voltage seem to be present as well. Except it looks like the 3.3v regulator above fuse f7002 doesn’t do its job. 5v input is present but the 3.3v output isn’t. Am I right that the ic on the following picture generates 3.3v?

20240906_173450
20240906_1734501920×1440 308 KB

No 3,3v present where the tweezer is pointing at.

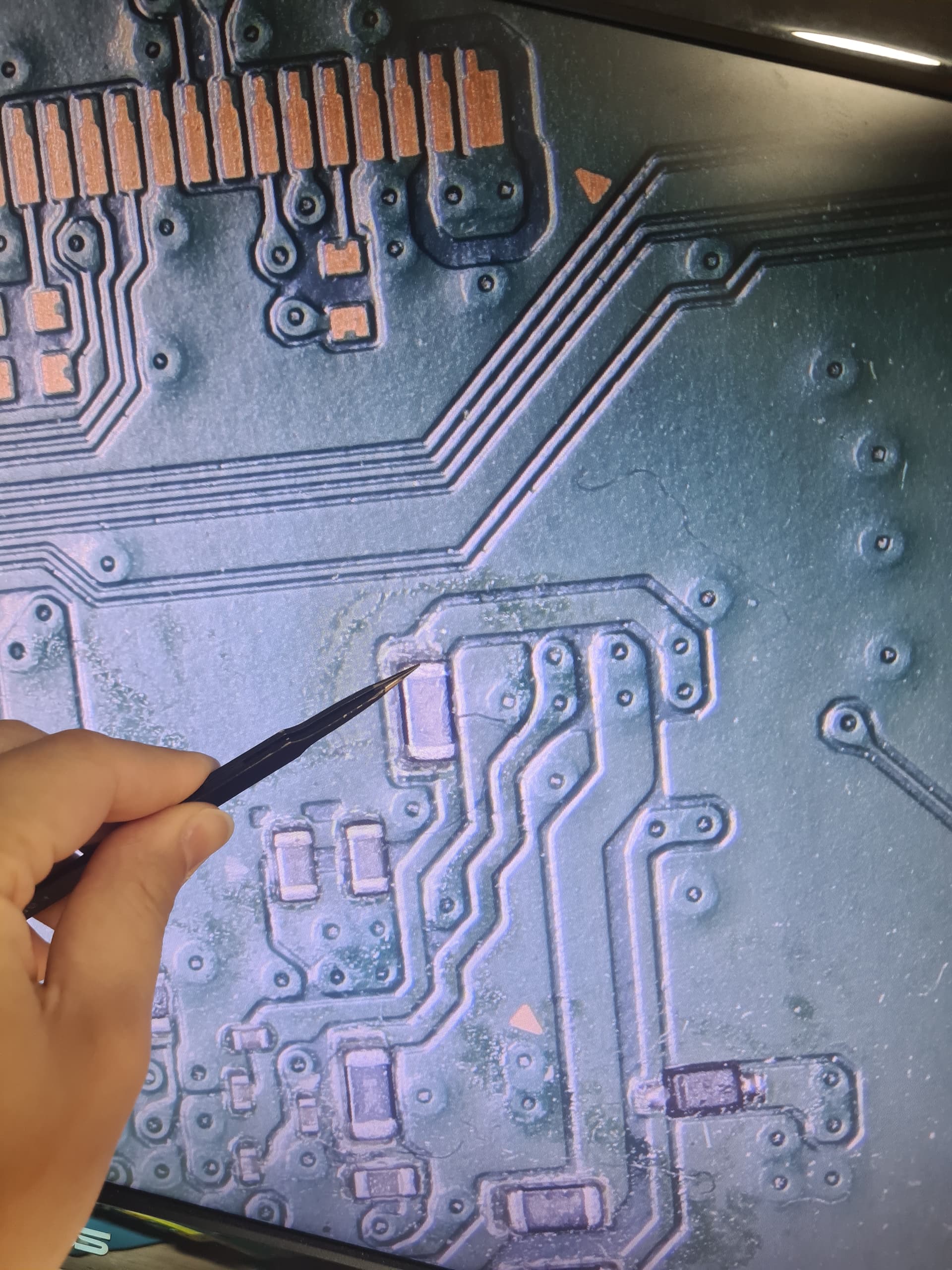

Also I am missing 1.8v standby.

20240906_175311
20240906_1753111920×2560 547 KB

On another thread I red that on EDM 020 board 1.8v is also generated above fuse f7002 is that correct?

If yes, replacing the ic above 7002 might fix this PS5 I guess.

Thx very much!

2

Yes, EDM-010 board SBV chip / TLV62090 generates 3.3v standby on the coil you pointed.

Yes, EDM010 and EDM020 has different stepdown ic and different location for 3.3v standby and 1.8v standby. So DO NOT simply thinking f7002 is always the 3.3v place generates.

**Only on **EDM010**

3.3v generates above F7002 from SBV chip
1 Like
4

In another thread I asked you about a missing component. Soldering that 100k resistor back in i have 3,3v and 1,8v now.

2 Likes
5

Hello, could you tell me what the other post is please?
