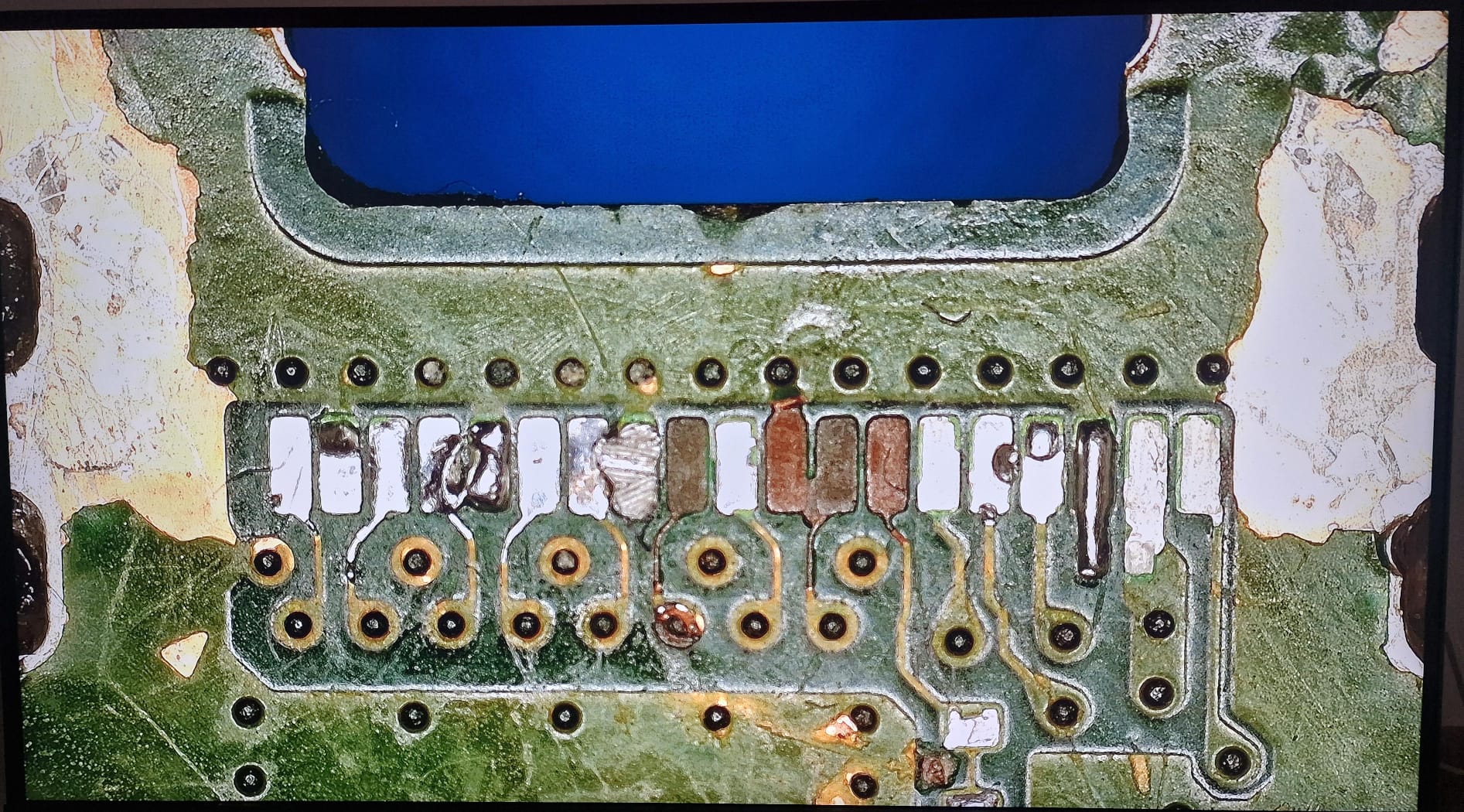

How do you reduce an HDMI port like this? Did they rip it out with pliers?
Suggestions?
Surely UV masking, then cleaning the solder and rebuilding the pad?
Or do I use an HDMI flex repair?

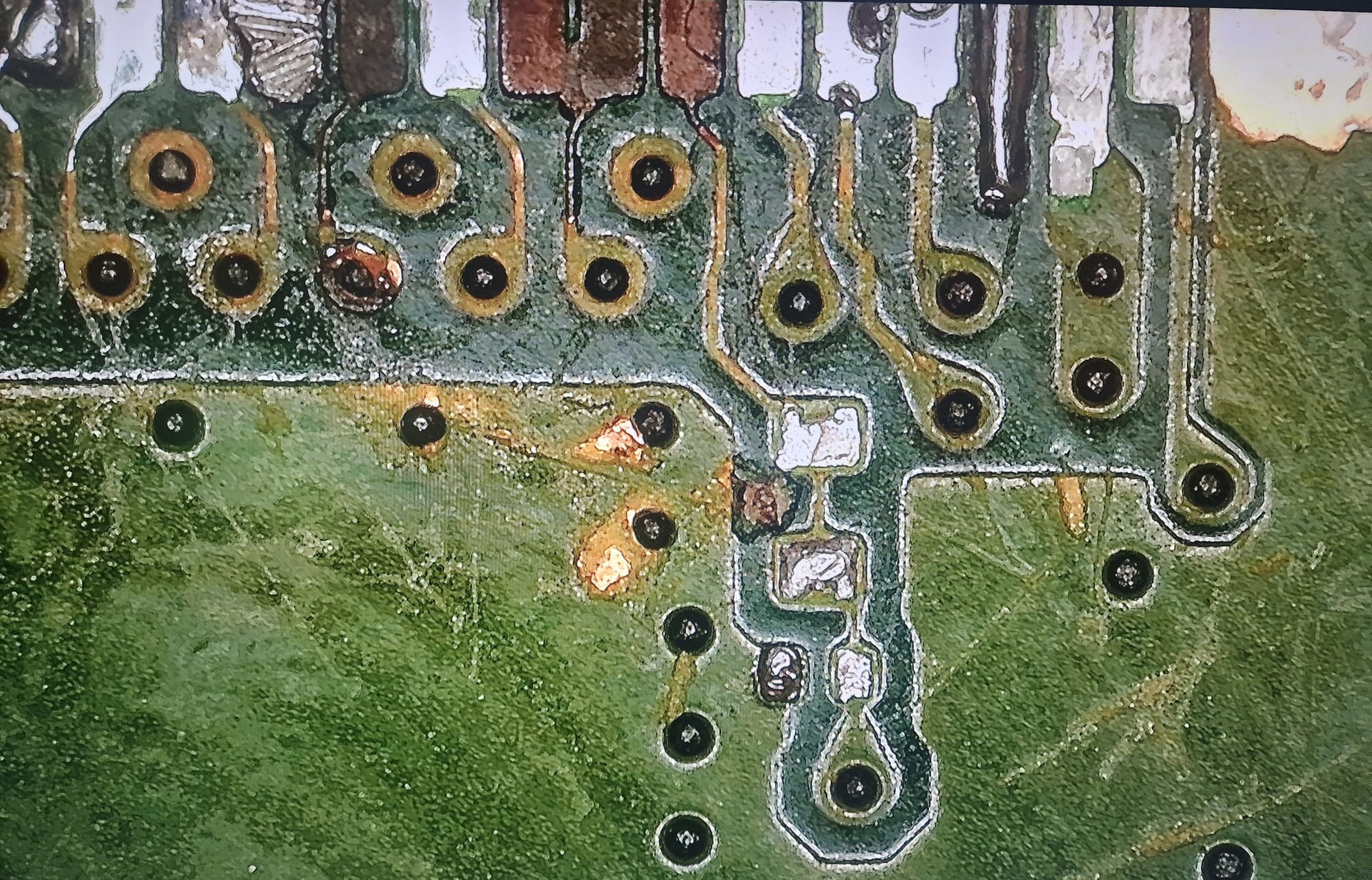

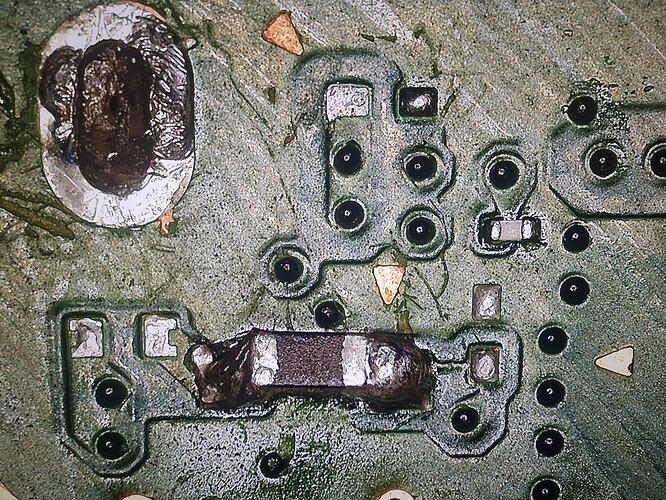

It’s an EDM 040, the capacitors are missing, everything is missing!
It doesn’t look like a diode to me, but I might be wrong.
Can you tell me the values of the missing capacitors/resistors? It’s an EDM 040

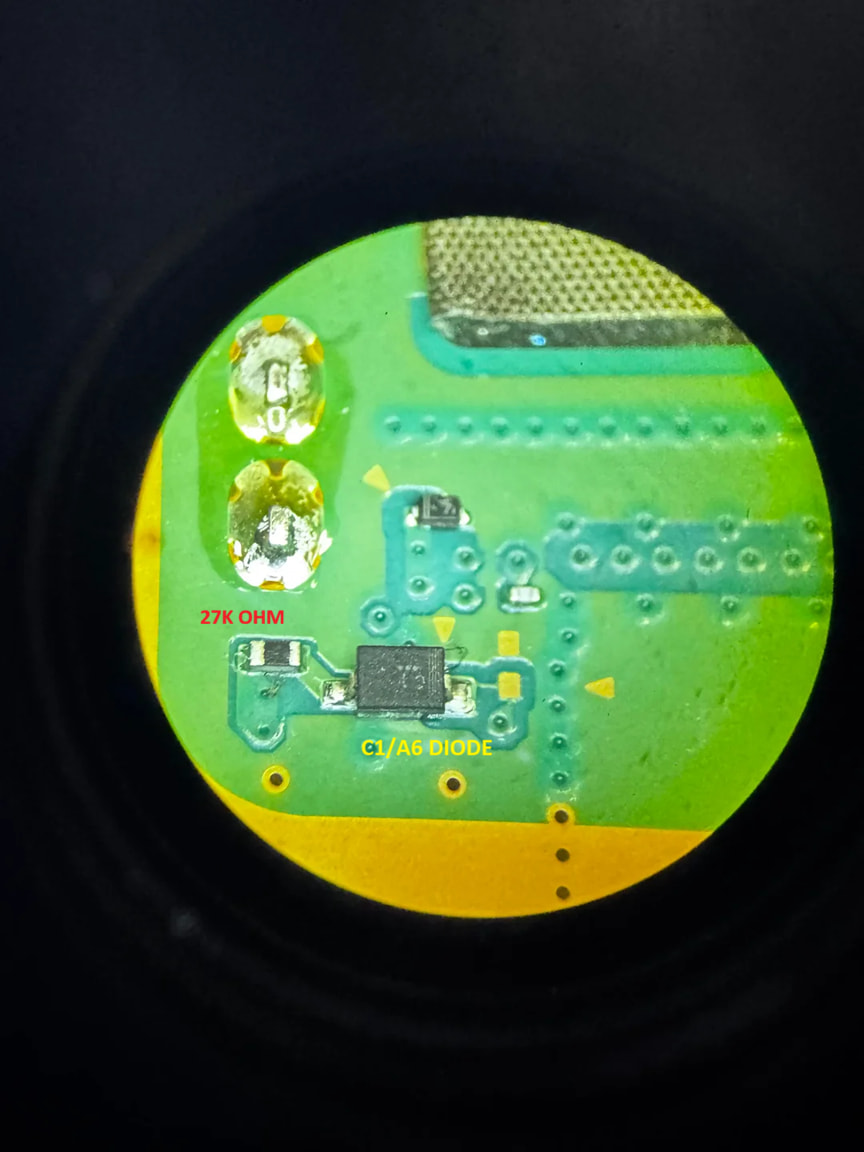

The big diode should be “C1” or A6 label not a resistor over there
All components part number can be found in this thread

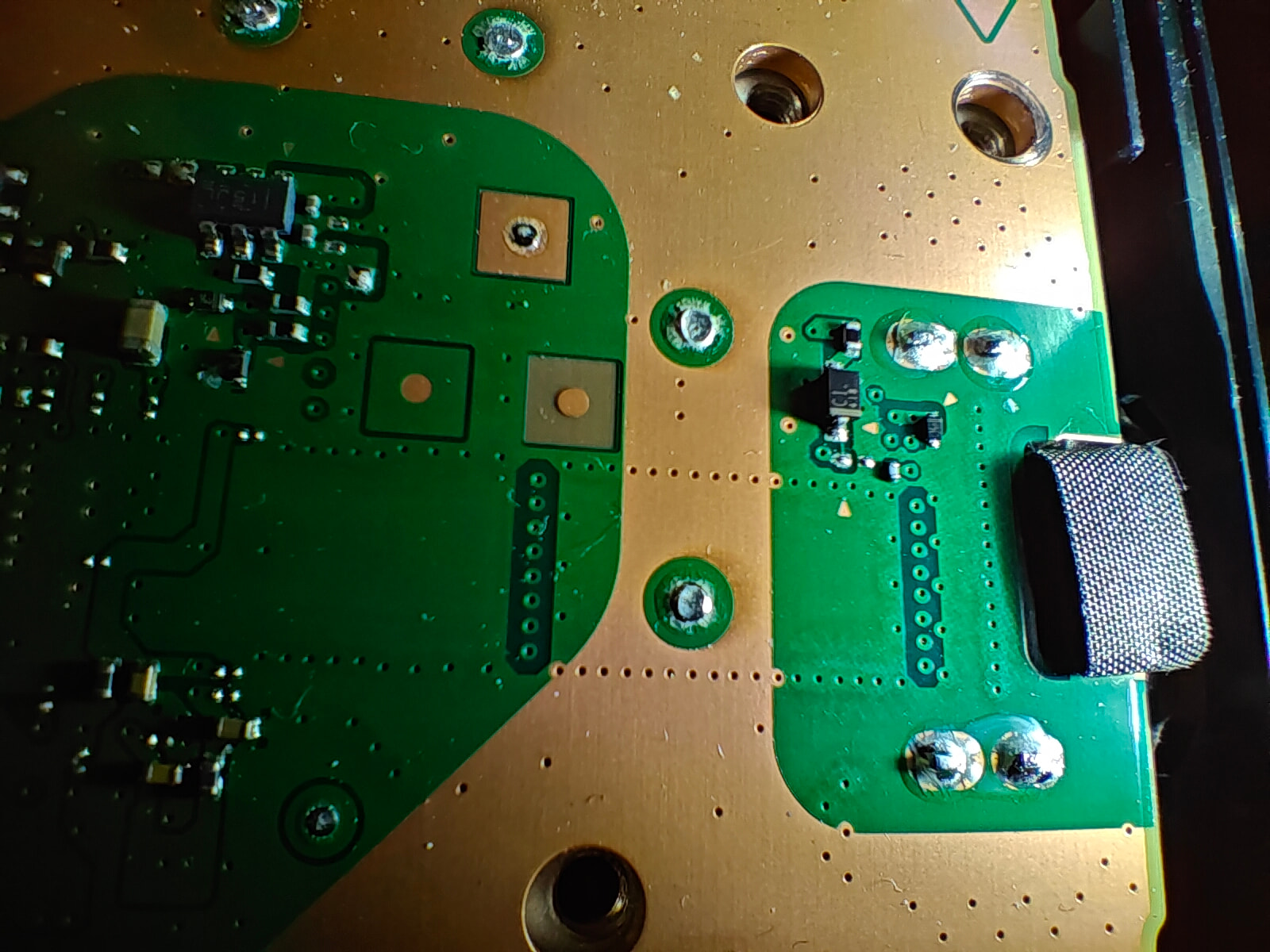

If you have a photo of an EDM 040, could you send me the HDMI part? This way I don’t make any mistakes in positioning
Thanks! If I understand correctly:
Side A:
1 x CDZT2RA5 5.6B Rohm Zener
1 x Diode C1 DZ2705600L
1 x 27K resistor
1 x 100pf capacitor
Side B:
1 x 100nf capacitor
Correct?

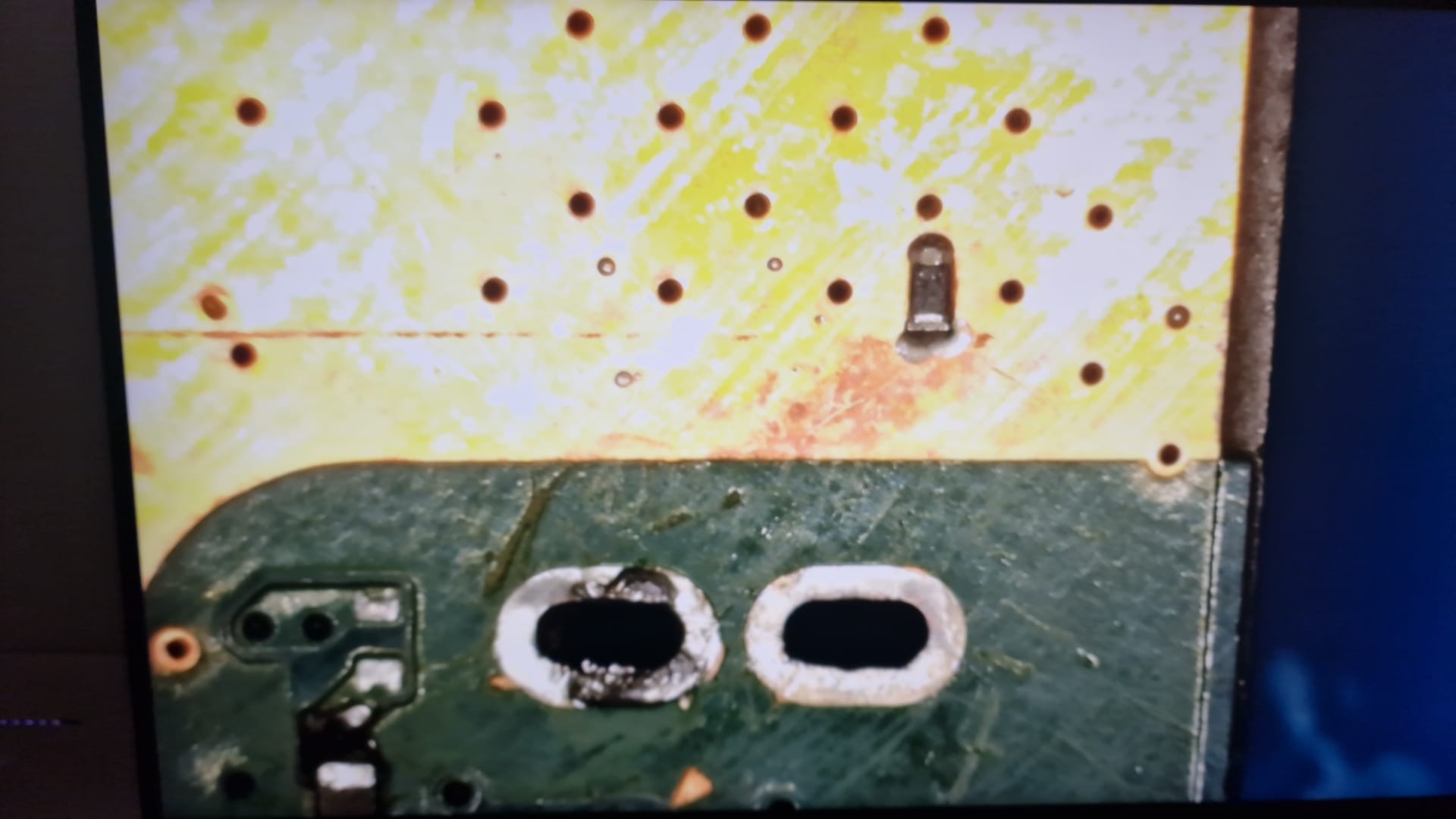

In the meantime, look what I found!
But how did it get there? It’s soldered!!
correct, you prob found the 27k resistor ran into the playground
