I knocked it off replacing retimer.
I think its 100nf but after replacing with this value the retimer slowly died again so I need to verify before swapping TDP again.
Please help.
I knocked it off replacing retimer.
I think its 100nf but after replacing with this value the retimer slowly died again so I need to verify before swapping TDP again.
Please help.

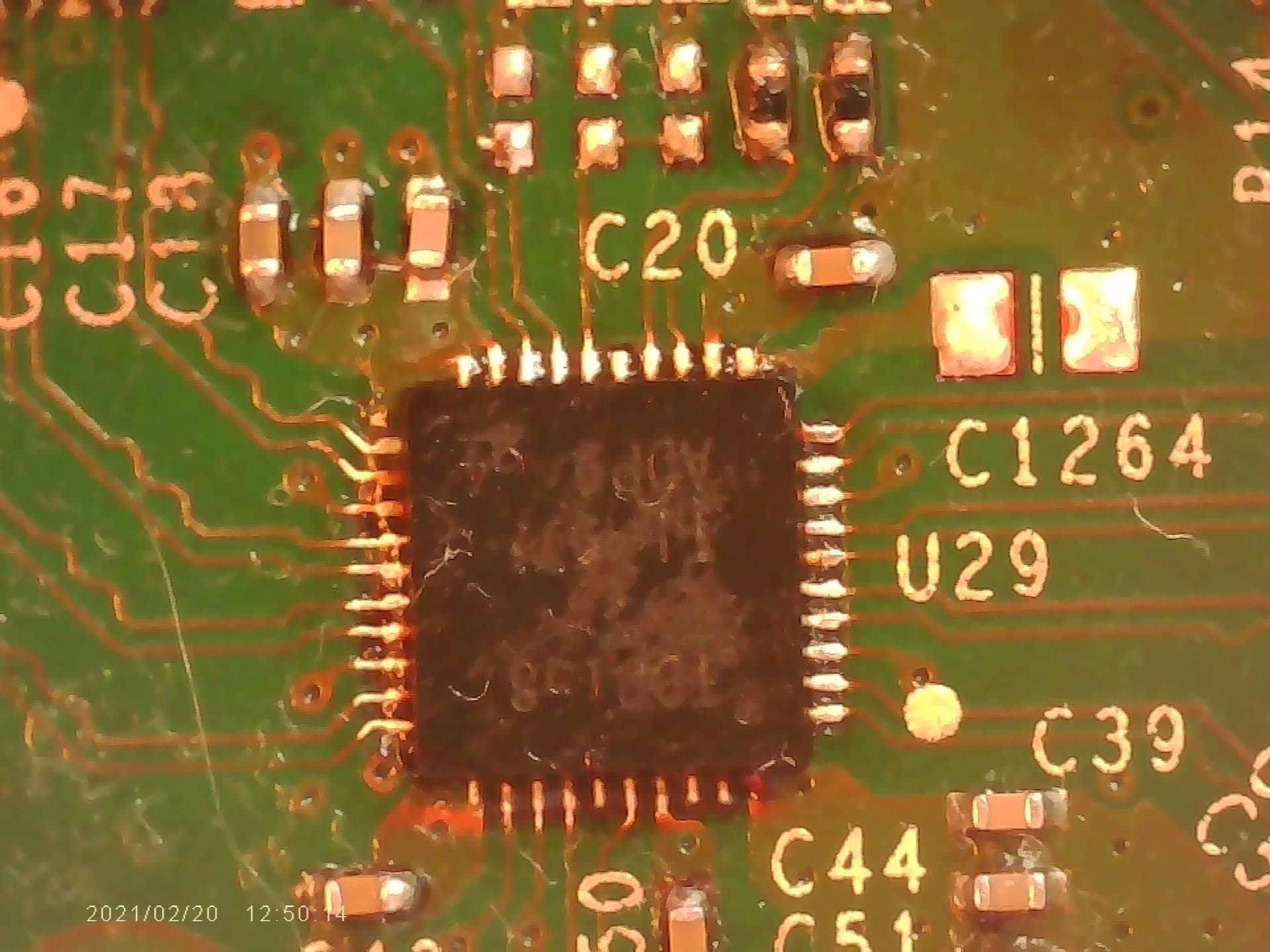

Im a dummy. Looking for C18 by retimer
The title is all wrong
Help please
According to my jottings C18 is 1nF.
HTH Stan.
Fixer.
Thank you so much.
I have 2 donor boards if anyone else needs basically any other value or part. I just got into the one X repair.
Getting this wrong could also explain why the Timer slowly died.
Fixer
Do you check in circuit and if yes what equipment do you use?
I have something cheap I can only check out of circuit and it misses lower values.
Okay I started ripping parts off of a donor board to map out the caps better. Again thank you Fixer.
C16 = 100 nf
C17 = 10 nf
C18 = 1 nf
And to round out the post title
C20 = 100 nf
Let me know if other values are needed.
I fried the HDMI out on the first replacement tdp158 with the 100 nf. It worked for about a week. I have confidence this ones going to stick.
Anywho new timer with c18 1 nf
You rock Fixer!!!
Hi Fixer,
I need all 4 of those capacitors as the heat gun ruined the connections on them all.
Iām just about to order replacements, but wanted to check what Voltage rating they should be?
