Does anyone know what smd components go here? (HAC-CPU-20)

Nintendo Questions Nintendo Switch
1

Managed to rip 3 SMD components under the APU and can’t find what those are anywhere.

Can’t embed media in post, not sure how am I supposed to show it.

2

Upload a picture at a hoster (for ex. imgur.com or similar) and add a character in front of the link and post it here.
_imgur.com/42lpVSR

3

I can’t include links to.

4

I guess you missed a part :slight_smile:

5

000https://i.imgur.com/XdxqoI6.jpeg

000https://imgur.com/oC4G0Ig

000https://imgur.com/hvvpEPu

6

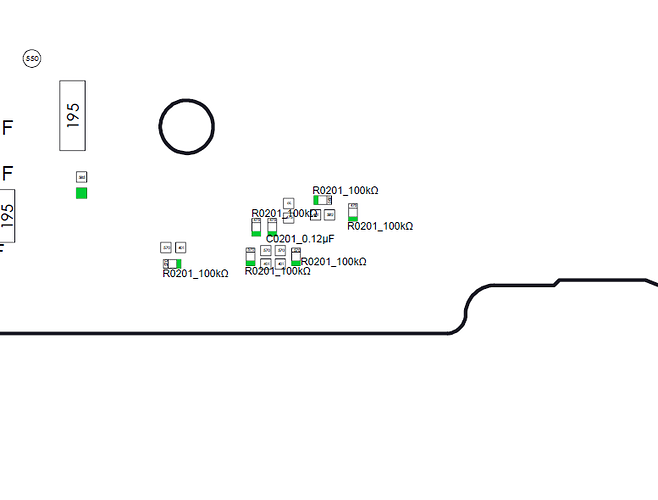

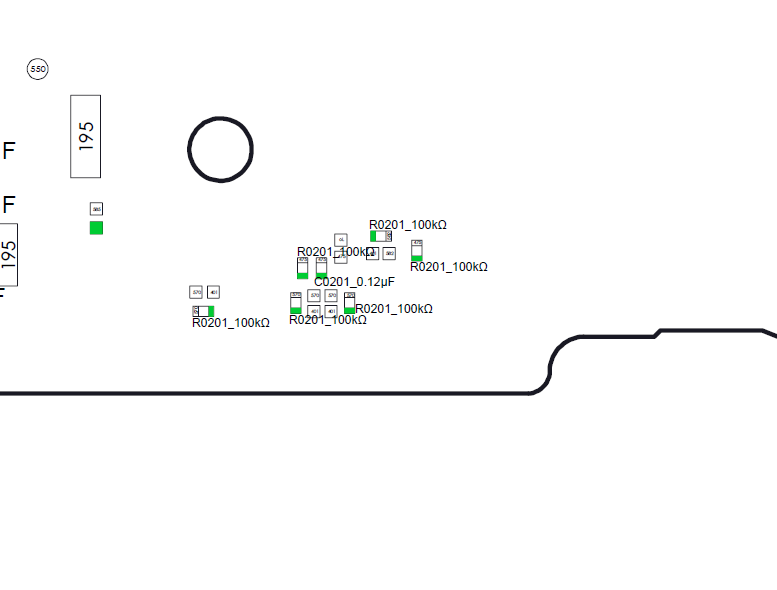

resistors
resistors777×590 13.2 KB

7

Thanks! Did you measure those yourself or is there a fully mapped out file I can download?

8

Before XZZ made Switch boardviews which were leaked, I made myself a patial diode mode map from the HAC-CPU-010 board to have some values to compare and get an idea which parts are connected. And start adding some values for resistance and capacity.

Here I post the both sides: https://imgur.com/a/diode-mode-readings-values-sk8fTIX

The cap readings 0.12 µF will be a 0.1 µF cap

9

I see. Well, I thought I wouldn’t find an answer few days ago and ordered a parts board for 10$ from Aliexpress.
