Edm 040 : 80801f12 => c810303 => 8081001

PS5 Questions
1

EDM 040
1 sec. BLOD
UART: 80801F12 => C810303 => 8081001
Missing 3V Standby on PIN 13 HDMI (not shorted)

2

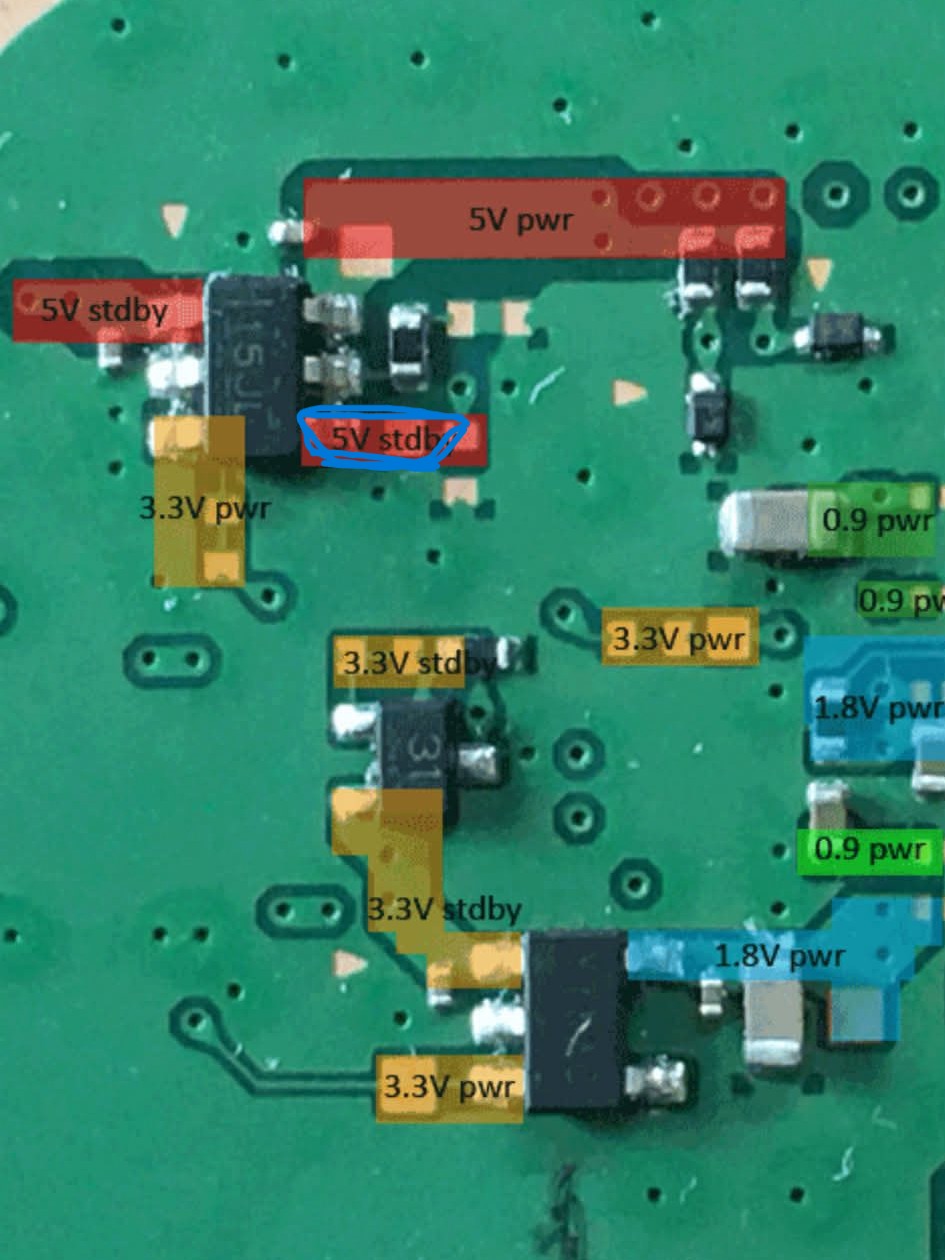

Standby and power-on voltages are OK except for the circled one:
4.65V steady

628339240_26094468160242137_8589700079778145879_n
628339240_26094468160242137_8589700079778145879_n945×1260 163 KB

3

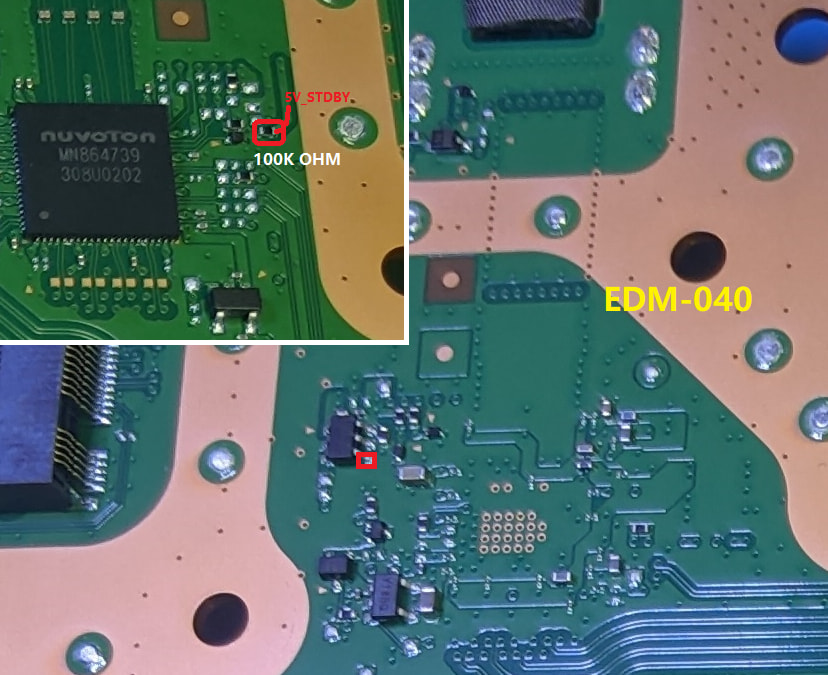

5V on PIN4 from “15JL” is sourced from 5v_standby through a 100k ohm resistor next to HDMI encoder chip circled in red

image828×675 139 KB

4

Left side 4.65V, right side 5.13V
what do you think?

5

I have a second EDM 040 for testing and the same value is found on this one too.
Resistor left side 4,65V , PIN4 15JL 4,65V

6

how much resistance measure across the resistor? I measured 5.13v from 5v_standby on the right, and 5.0v on the left

7

99.1Kohms across the resistor
(the second board has the entire HDMI part destroyed, both the pads and capacitors/diodes are missing, so the measurement is distorted, I will not take it into consideration)
