Finding shorted capacitor value

Hello Everyone,

I recently just found a shorted capacitor that I just removed and wanted some help in locating it.

Unfortunately I do not have a donor board that I could grab it from. If someone could please help me locate it or measure it, I’d really appreciate it.

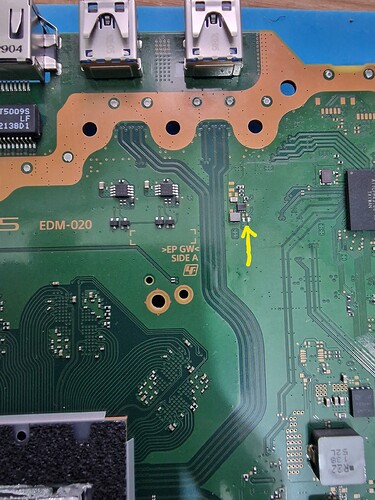

I have attached pictures of the area where the capacitor was placed.


If the the IC datasheet (on the IC right next to it) doesn’t make it clear I’m gonna bet 1uf - place your bets :smiley: I’m probably wrong :wink: (I genuinly don’t know)

1 Like

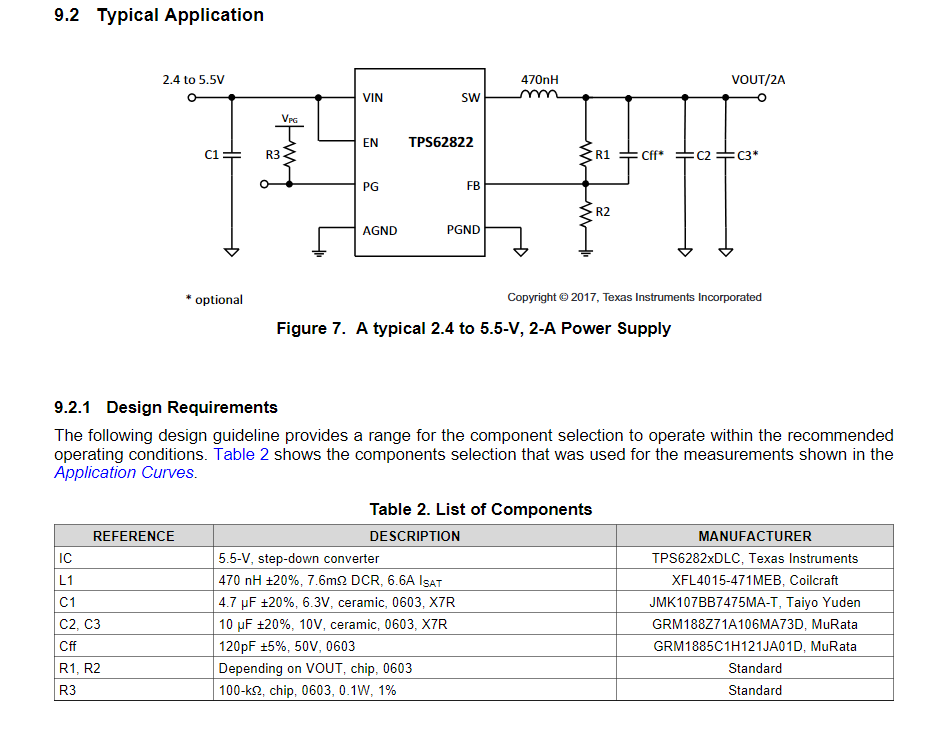

4.7uF on Tps62822 datasheet


damn, almost a factor of x5 … glad I didn’t wager anything :wink:

1 Like
