HAC-CPU-01 Shorted caps around max77812

Nintendo Questions Nintendo Switch
, ,
1

I was asked by a friend to fix their switch.It won’t power on and I see no signs of life. After watching a few NorthridgeFix videos I’ve done some diagnosing.

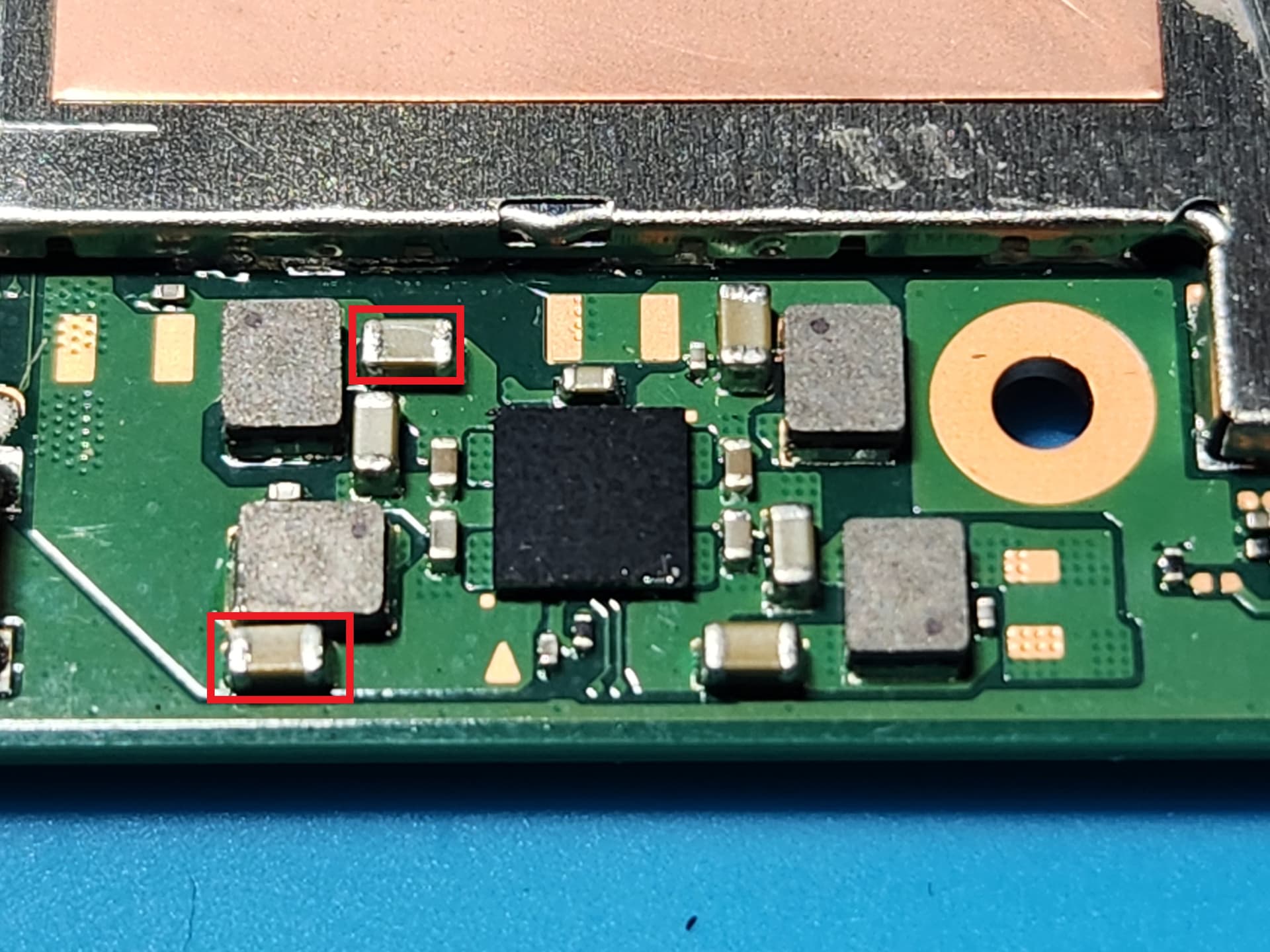

The capacitors in red around the max77812 are shorted.

20230405_173337
20230405_1733371920×1440 242 KB

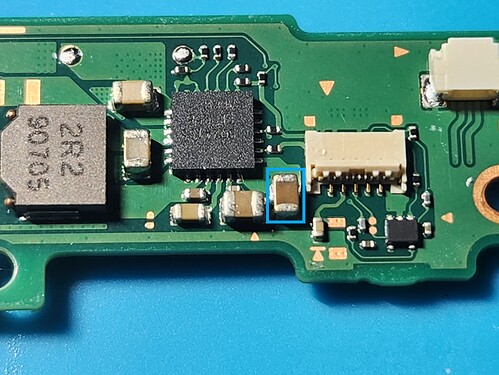

There is also a capacitor in blue around the BQ chip that has a voltage drop of 1 volt.

20230405_182054
20230405_1820541920×1440 219 KB

I believe my next step should be replacing the MAX77812 chip but I wanted to see if anyone had any other suggestions first.

2

I would take the two red marked caps out and check on which side the short is. SoC or Max ic.

3

Likely not actually shorted.

I’d search the forum instead of watching videos :slight_smile:

That all being said. It does look like someone has been to rough with their probes
