This Xbox series X turns on and then it can shuts off immediately or works some time. I took it apart and found overheating component on sb board. Unfortunately I couldn’t find it on diagram so I am looking for its part number to replace it. Can anybody help to identify it please?
This board looks different than mine. I can not see this component on it. I have some photos but I could not upload them

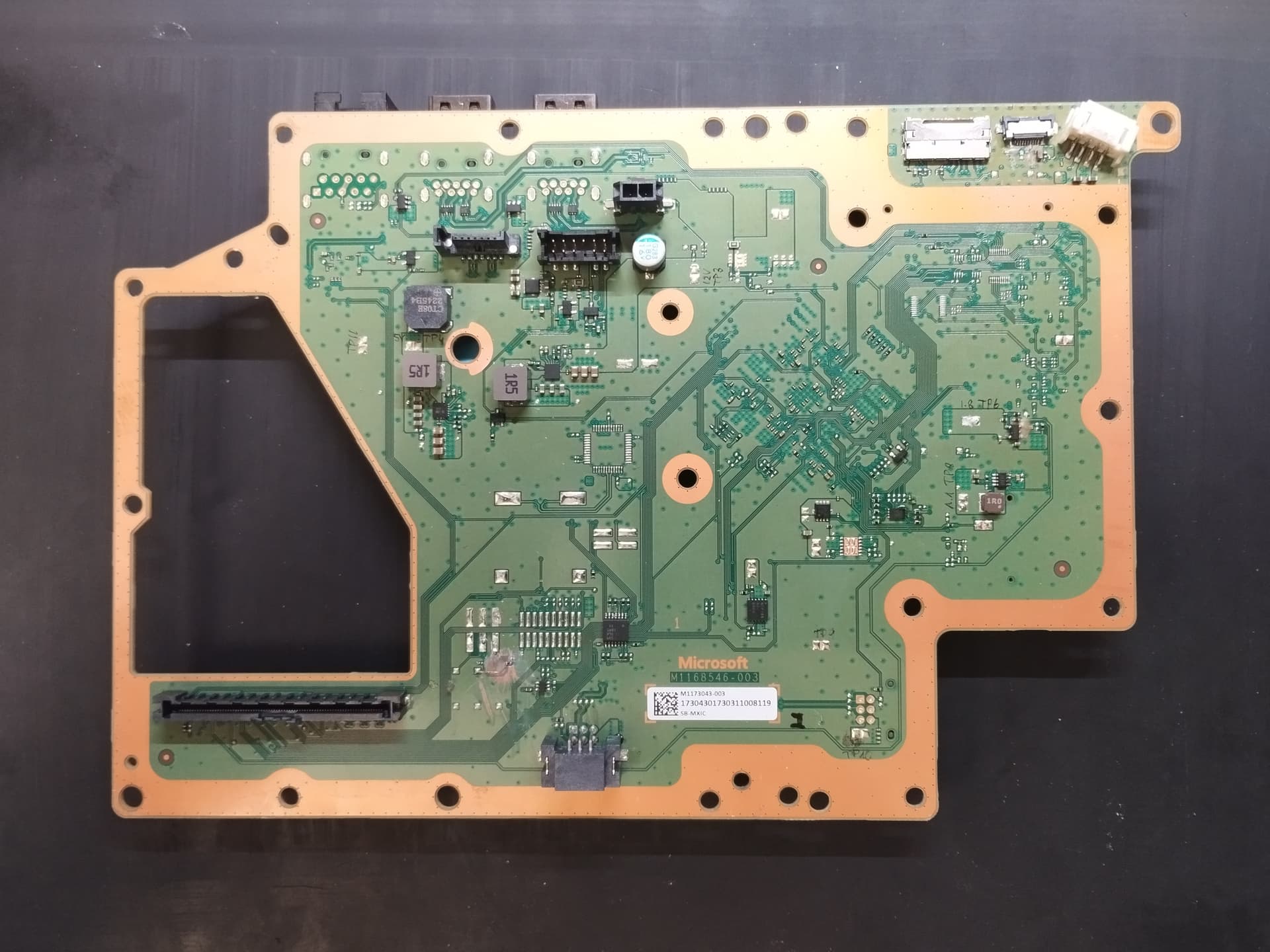

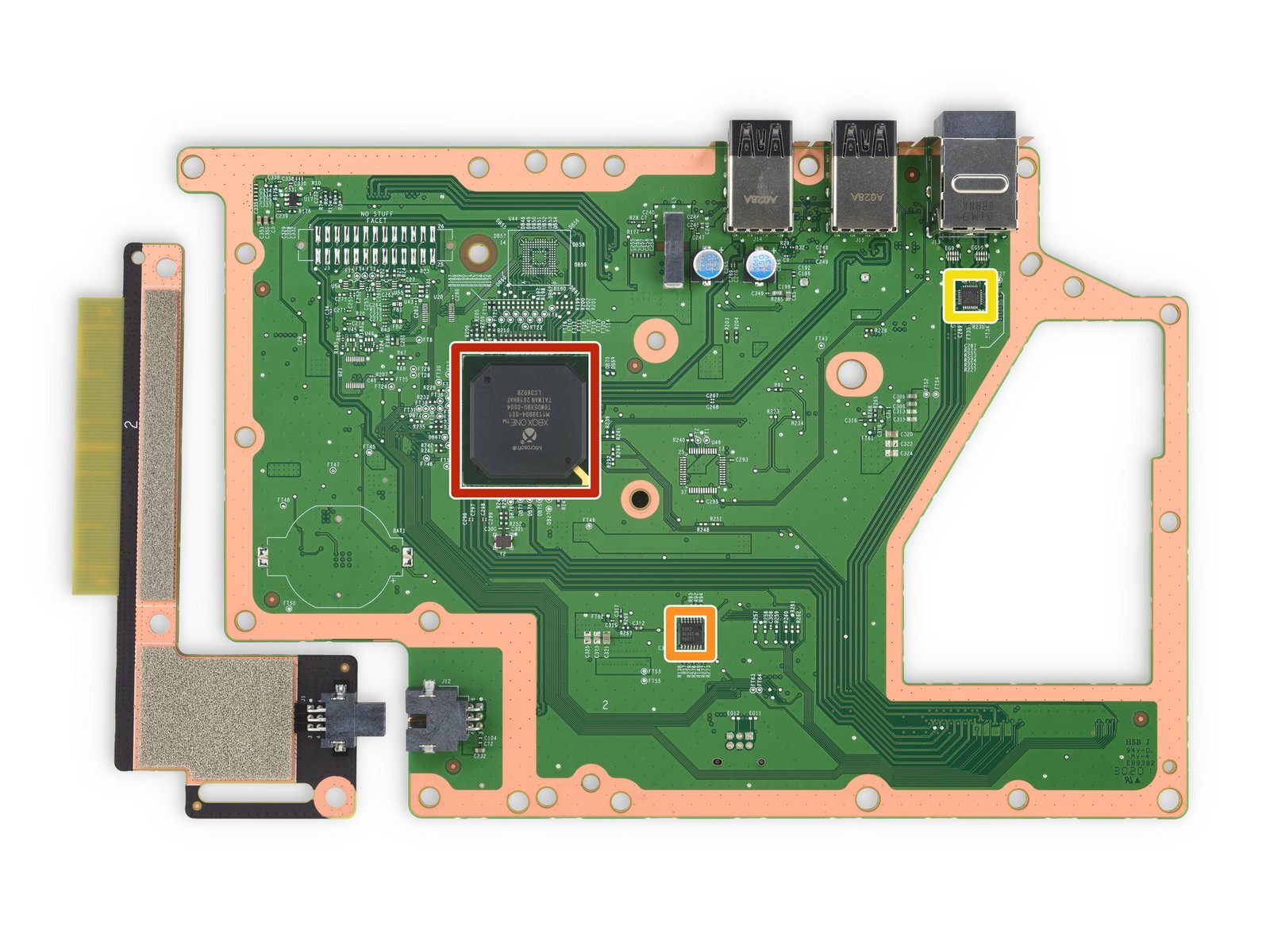

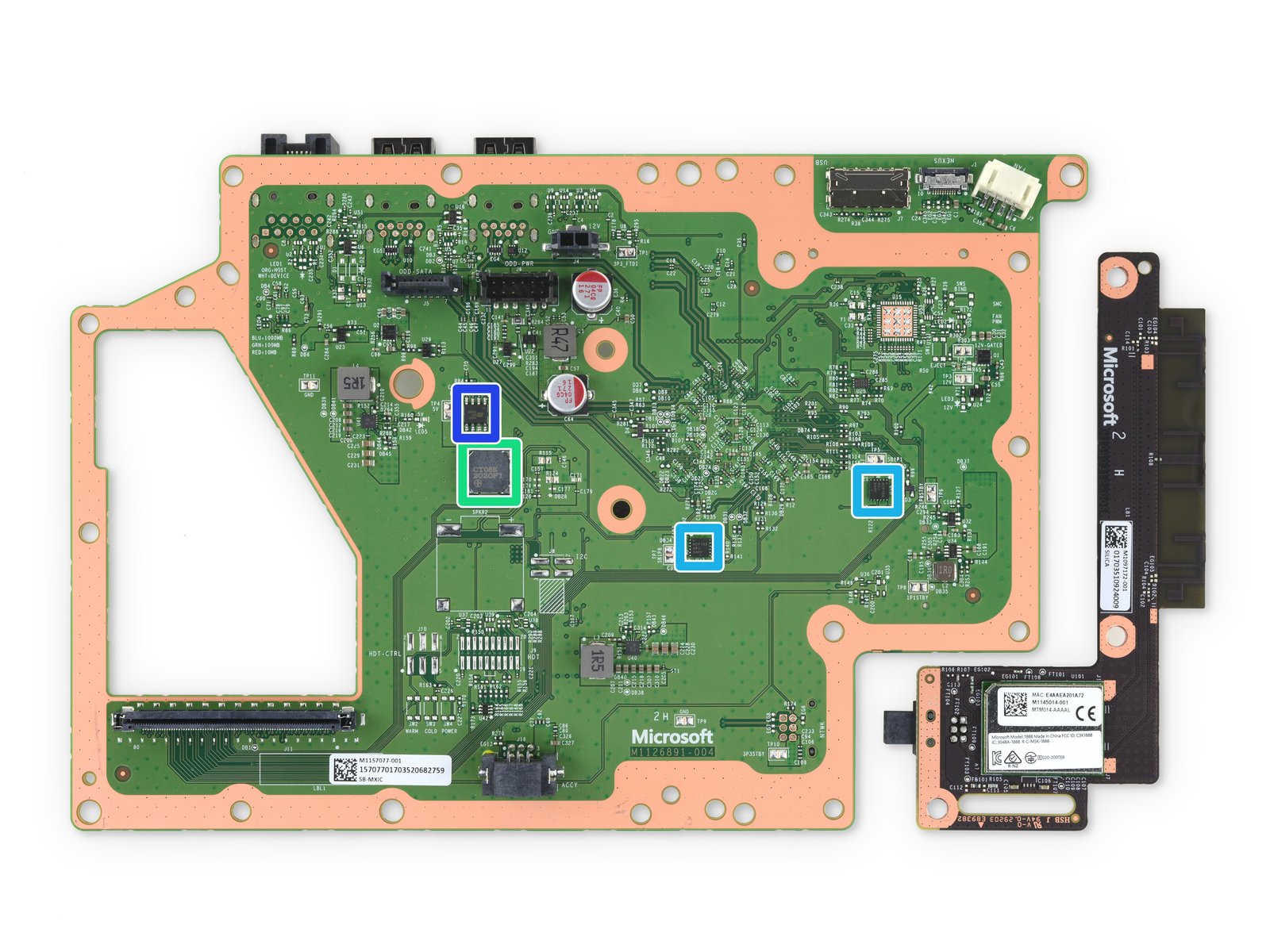

so you have a V2 board
Why can’t I upload any photos?

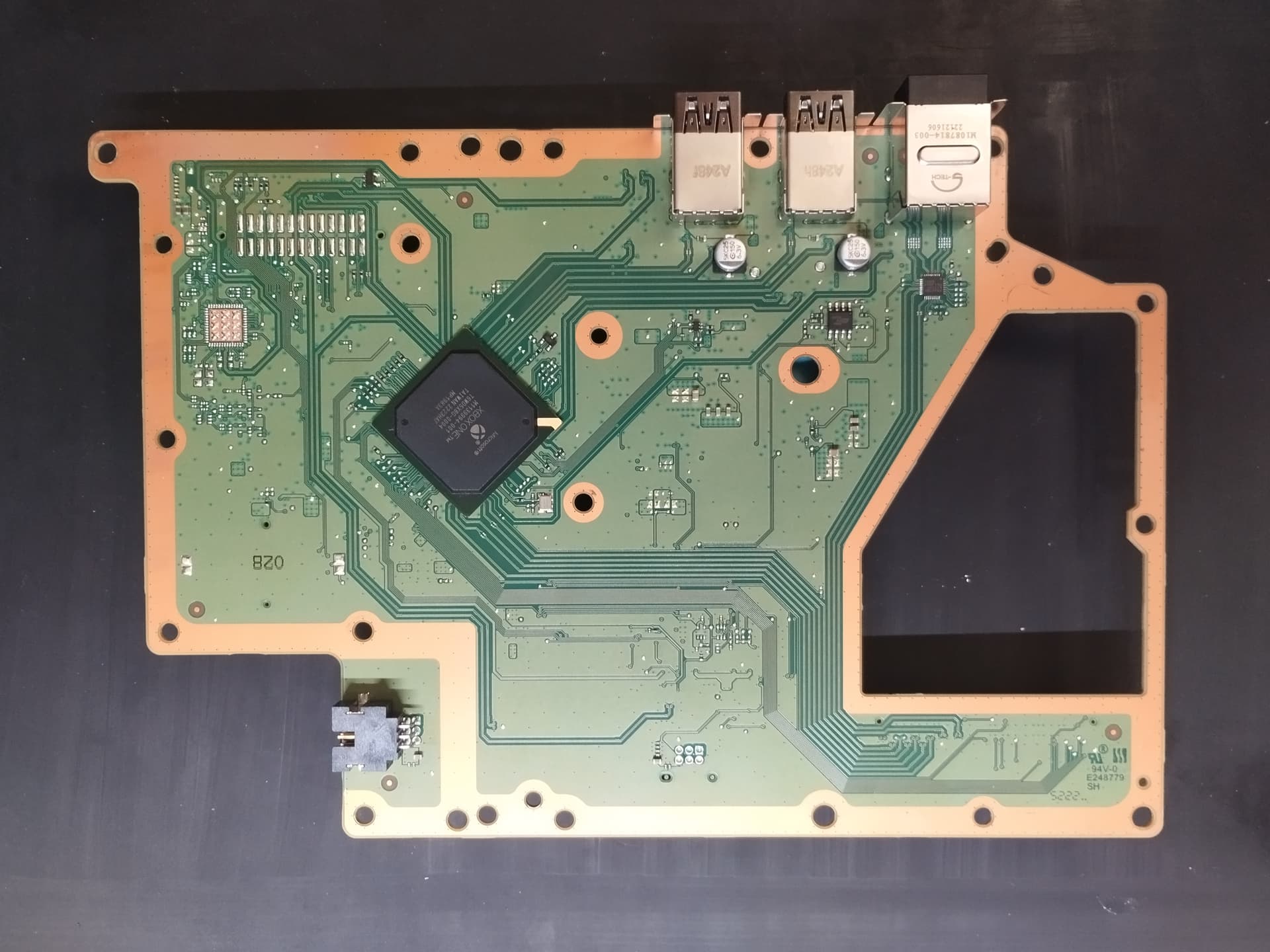

Yes. I have this one

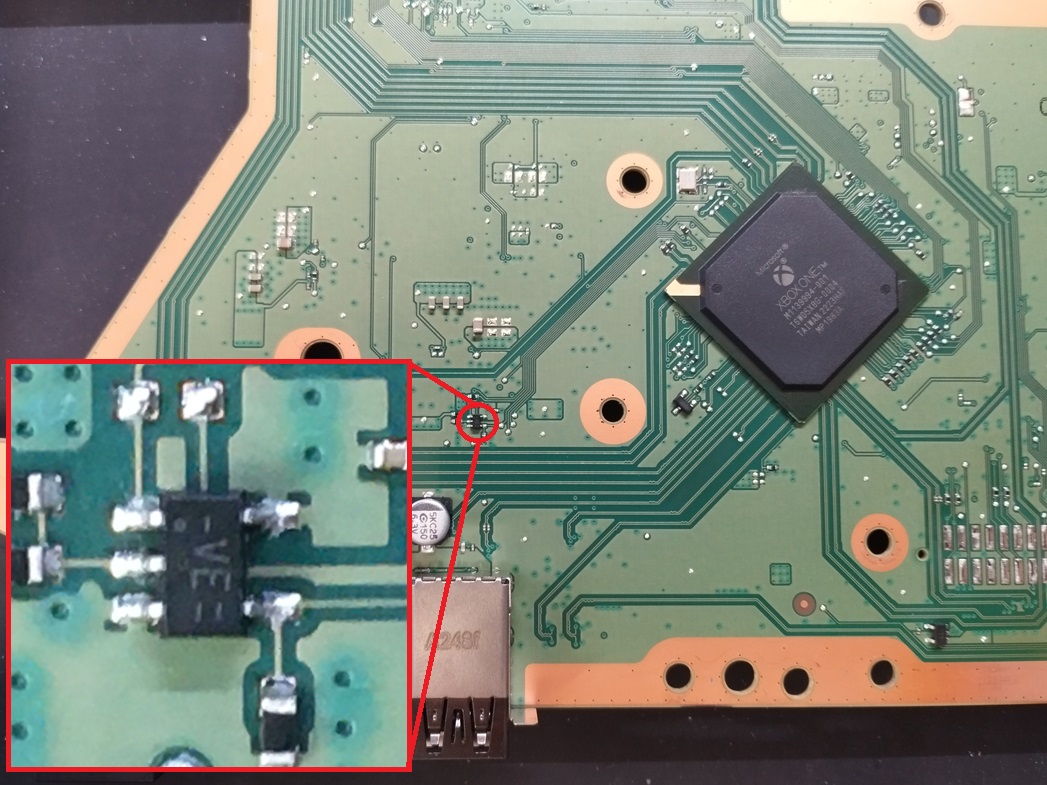

It is located on second photo, closest small 5 legs component to Xbox big chip, under left USB port. Sorry for description
yes, this component that I am looking for
It is 74LVC1G08 from Nexperia.
1 Like
Thank you so much for the help
I have replaced that component but the problem still there. What can affect on it? Thank you in advance
I guess the southbridge is the issue. You can lift pin 5 and check if the short is gone at the five legged chip. I had a similar case.
If you want to replace the whole southbridge board, make sure to read the NOR and save the data and copy it to the replacement board.
Have you found what makes a problem in your case?
