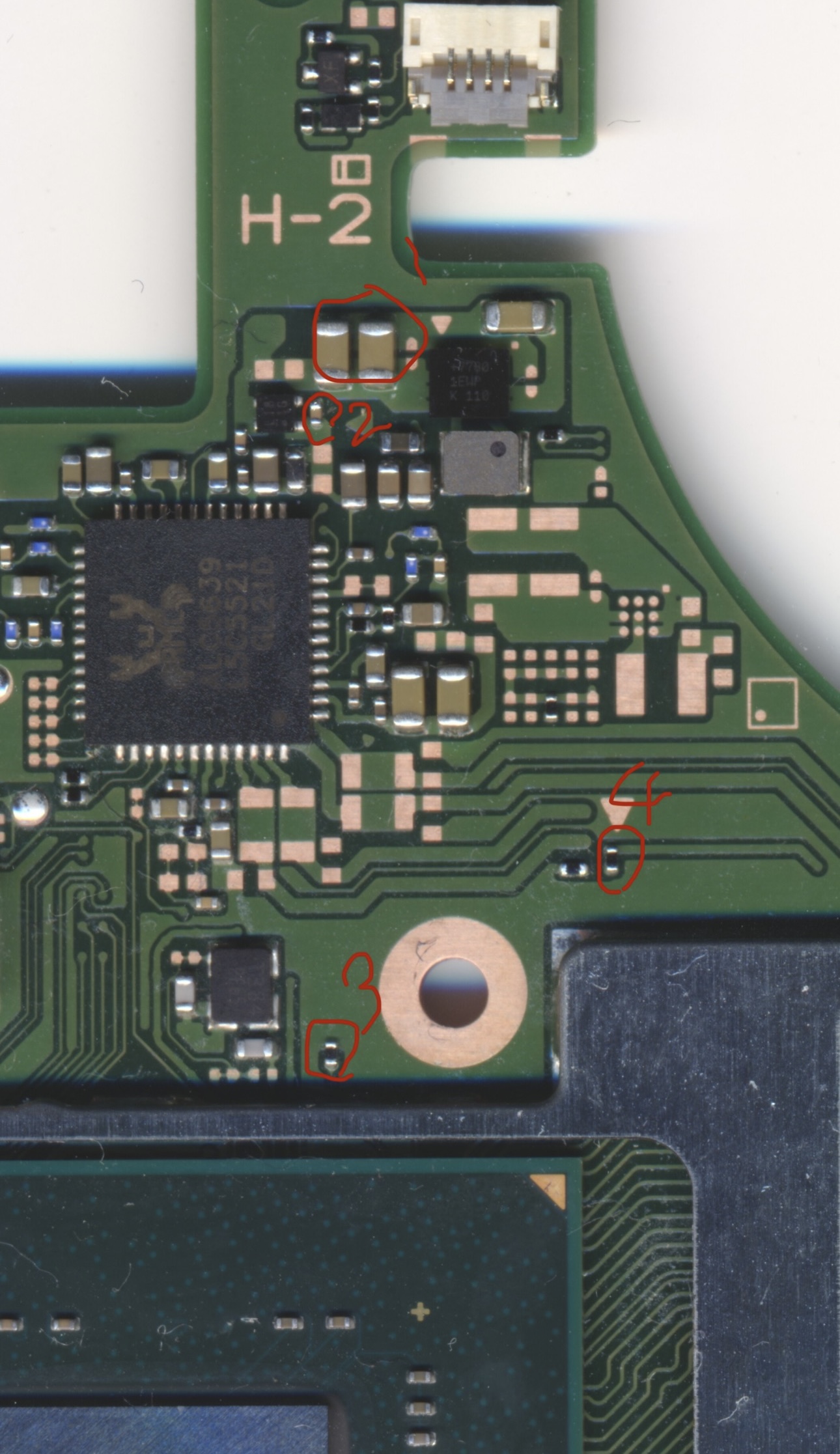

I want to know the capacity and size of the parts marked in the picture!
The high-res component-labeled OLED board image shows these as being 15µF, on the original switch they were known to be 22/20µF… Unsure which is more accurate.

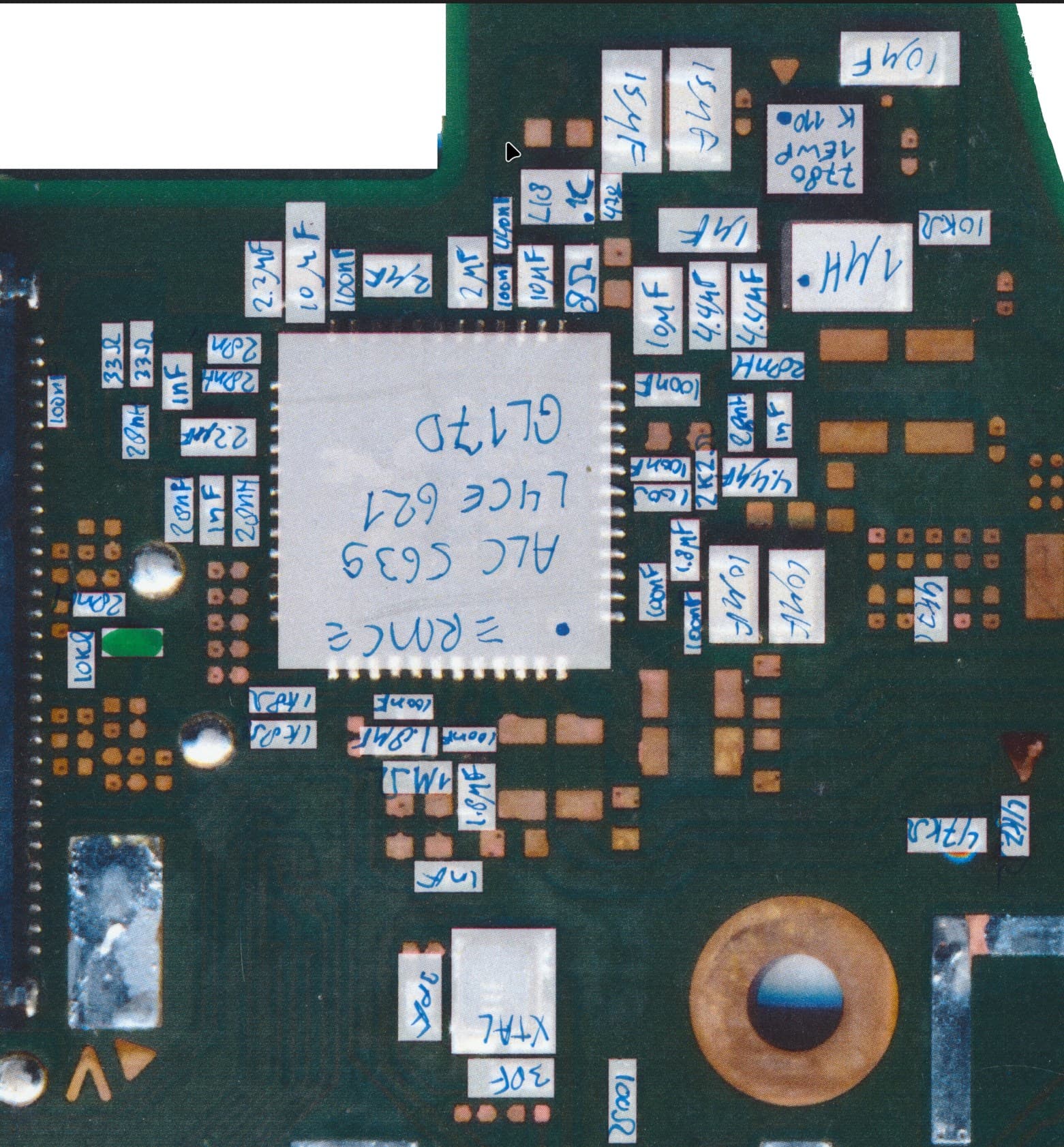

If we’re going by the labeled component diagram for the OLED:
Source: https://files.zzattack.org/img/console/switch/oled/Components/top.jpg
- 2x 15µF 0603 6.3v capacitors
- is a 47nf 0201 6.3v capacitor.
- is a 100Ω 0201 6.3v resistor.
- is the CMD resistor usually near the ‘A’ Point, and is a 4.7kΩ 0201 resistor.
