I bought a switch to repair that has all the pads busted. The person who tried it made a lot of trouble.

I also had the pcb broken on one side, but I joined it with a cable.

I charged the battery and it didn’t turn on, so I changed the PU13USB.
Now it turns on.

I wanted to know which pads are essential for the console to charge, so that I can only connect those and always use it in portable mode.

Greetings.

2

h**ps://ibb.co/Tcz5d63

3

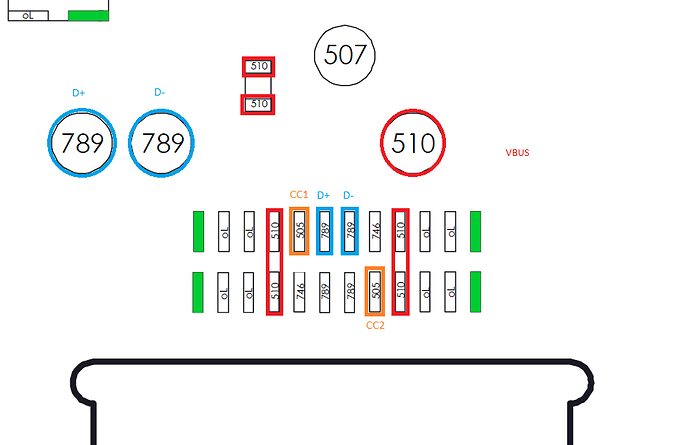

VBUS and the CC pins are needed to charge with 15V.

USB C USB DD
USB C USB DD950×614 22.2 KB

Maybe this is asolution for your board: https://www.rippedtraces.com/
Here I soldered the flex myself: https://www.youtube.com/watch?v=MdeUnc5mH64

2 Likes
4

Wow!
I didn’t know that solution, it’s incredible.
I will evaluate it as a definitive solution.
thanks Calvin
