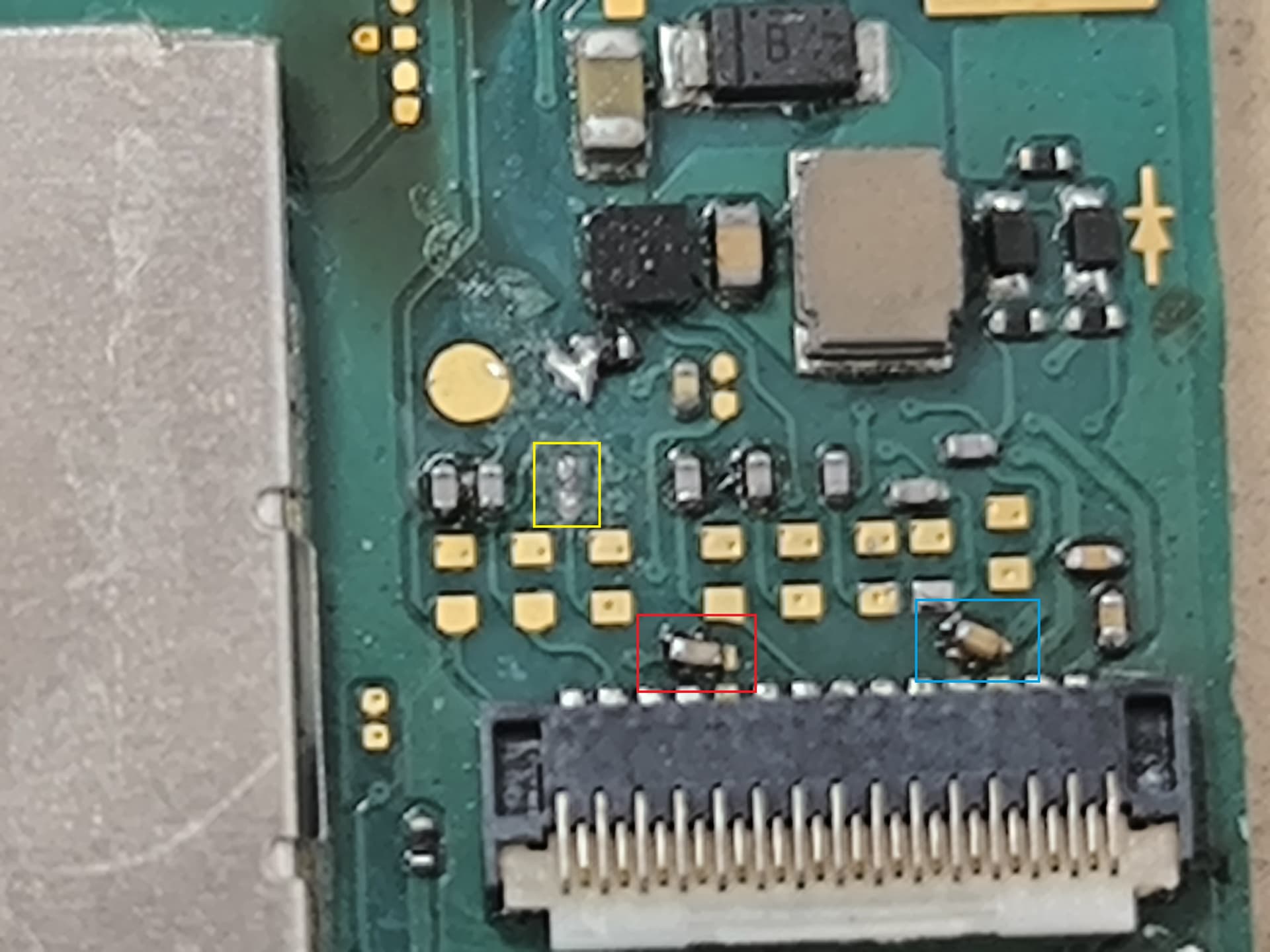

Hi there, I’ve messed up changing a broken 29-pin FPC in the switch lite, some near components have fallen and some is missing. I would like to try to replace them.
https://imgur.com/a/b1v1Y0x
I have been looking for info in this forum some days but I can’t find information about those three.
Any information or tips are pretty much appreciated, thank you.
they are all 100nf 6.3v 0201 caps
I thought that the red one was a resistance according to other responses I saw online, just didn’t have clear what was the value, I was reading 150Ohm in another working lite.
Thanks for the answer, is very helpful.
oh, my apology, the red circled is indeed 150 ohm resistor

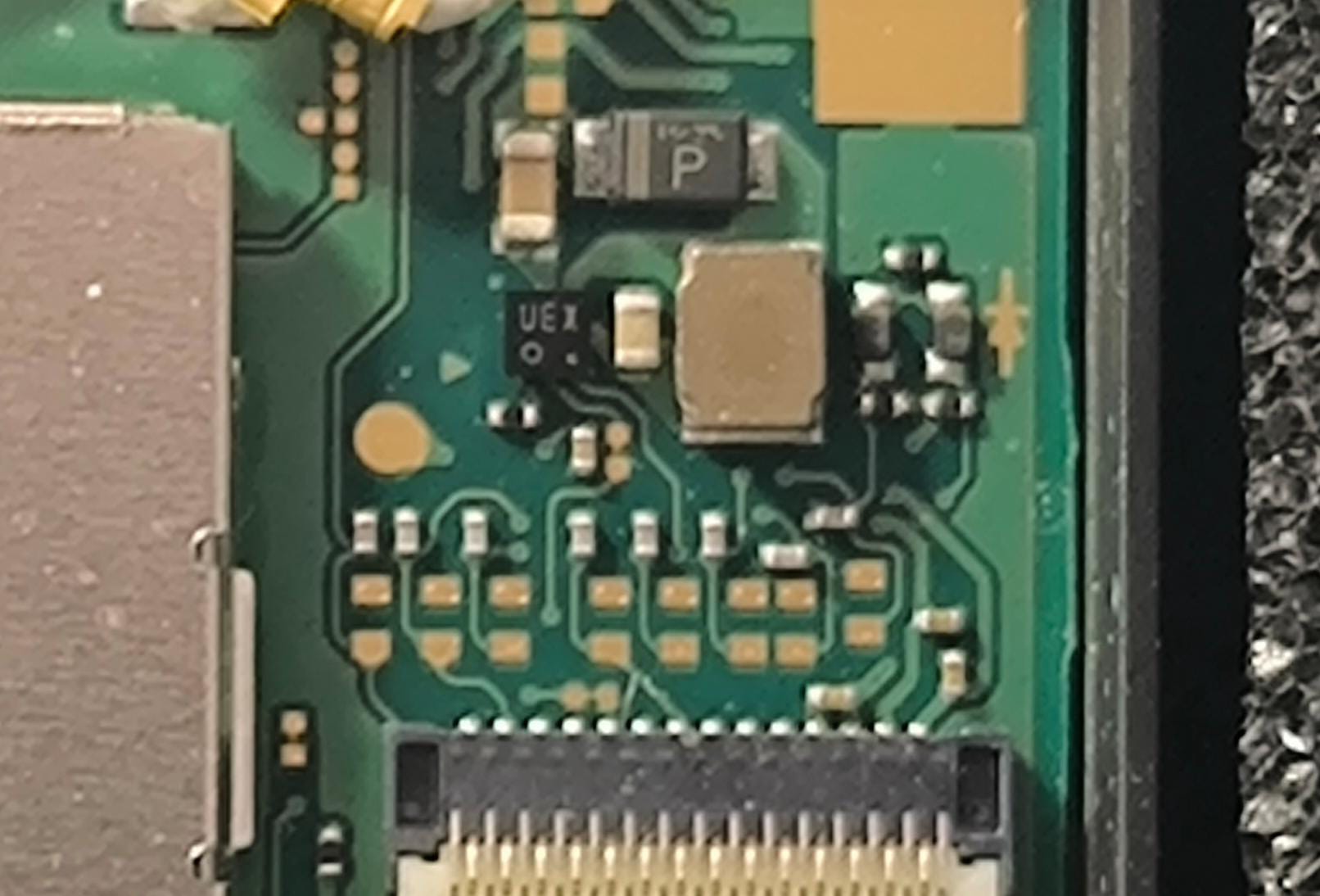

Yesterday I was with another new lite, that was never opened before. I noticed that the 150Ohm res was not there.
Just posting it because seemed interesting, guess it is just another hardware revision.
150 OHM in some model is directly bridged(straight connected), like the picture shown from your post. They are just there for limiting current draw when pressing volume and power button, no big deal.

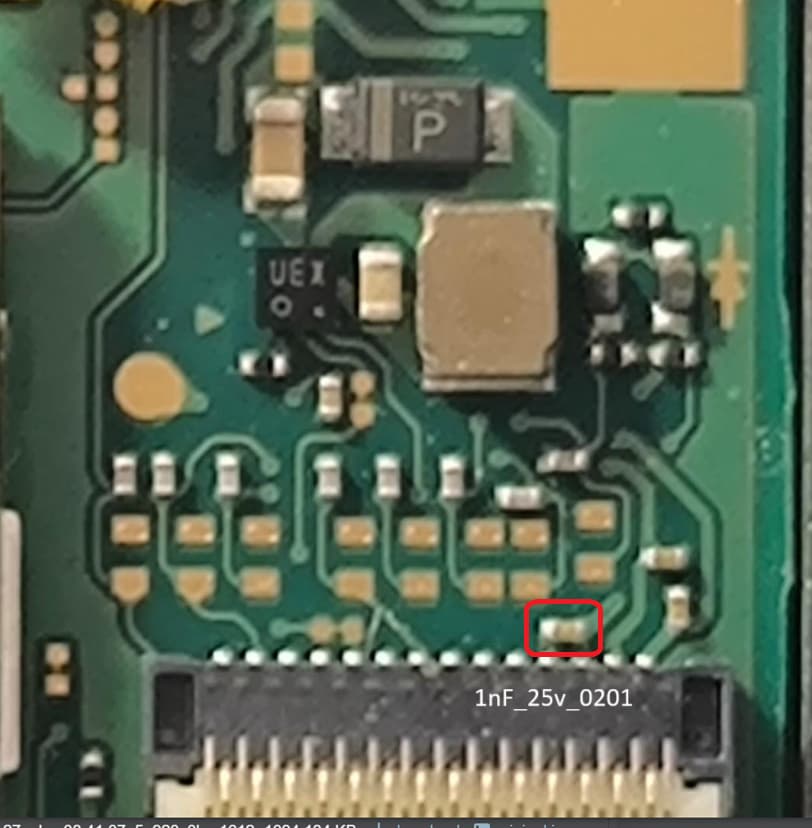

Hi! So what kind of capacitor is this? in another post, you wrote that it was 1.1 nF 25v. But in thes therad, you say that they are all 100 nF, 6.3 V. size 0201. Could you please clarify?
I will double check again when switch lite comes in again, 100nF(Blue circle one on the 17v backlight rail so 25v rated recommend) wont go wrong since its common used to filter the impedance from the trace and connector in the rail
