Need help repairing a switch with lifted battery connector to the pads

Hi all, Anyone has the schematics to the battery connector to the switch.

I have a switch with 4 out of the 5 joints are gone. Thanks

Here are the pads/pins the battery is usually connected to:

Omg. Thanks a lot Calvin.

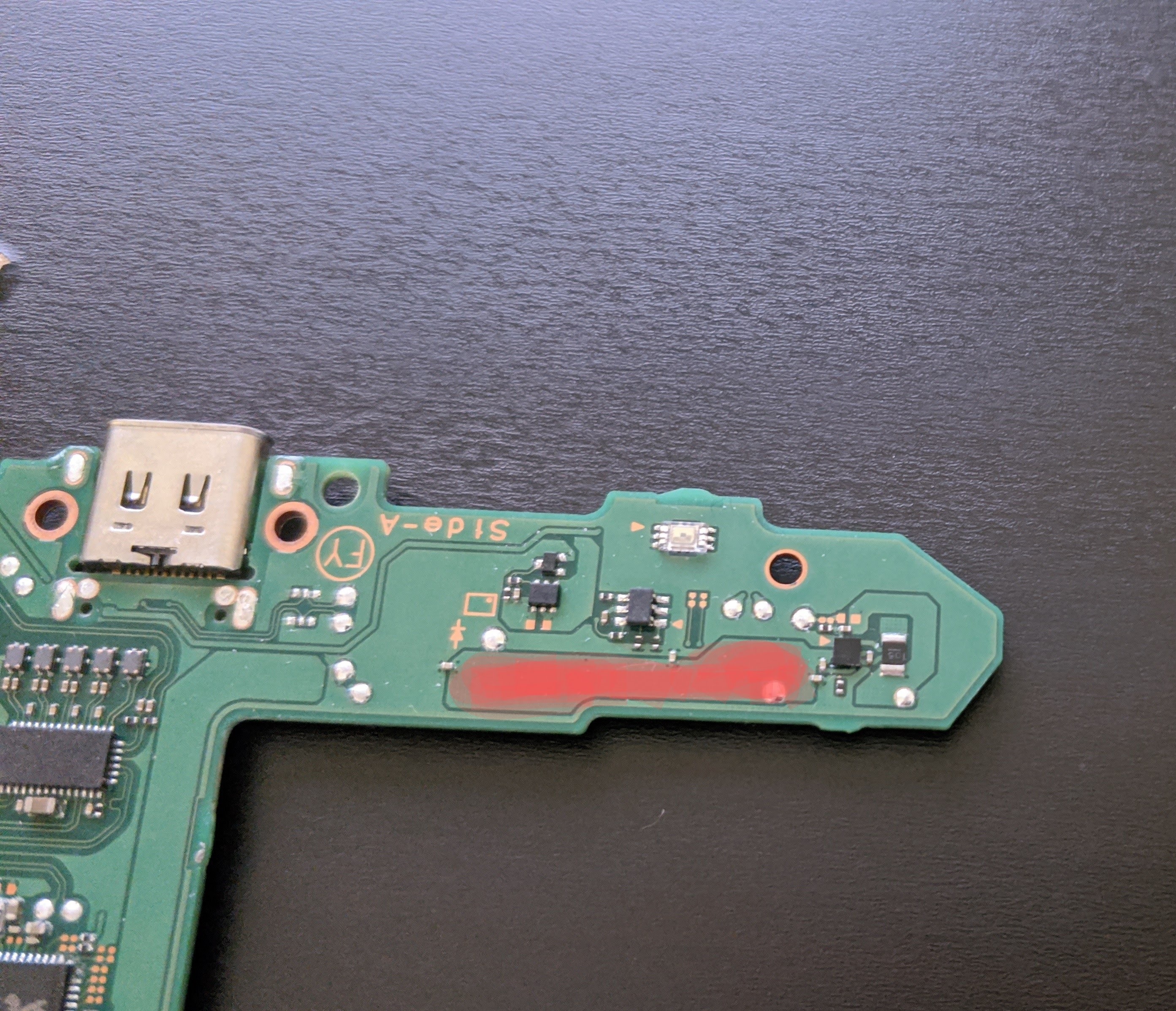

FYI the Bat+ connector can be find from back side where the pic marked on red.

BTW really like @Calvin pcb layout, what is the name of this software?

I made it with SolidWorks. But the main program of SolidWorks is not practical for making pcb layouts.
