Nintendo OLED SWITCH turns on but won't charge

Nintendo Questions Nintendo Switch
1

Hi i’am from Germany. I have a OLED SWITCH that won’t charge. No shorts near the Power IC m92t36.

I changed the Power IC but it powers on and still no charge. If i have pluged a charger on the SWITCH it Shows 0.00 A!! The Power IC is tested on a working Mainboard.

Anyone a idea what ist is?

2

Have you checked that the fuse is working ?

3

Thank you for the reply. The fuse ist OK…

4

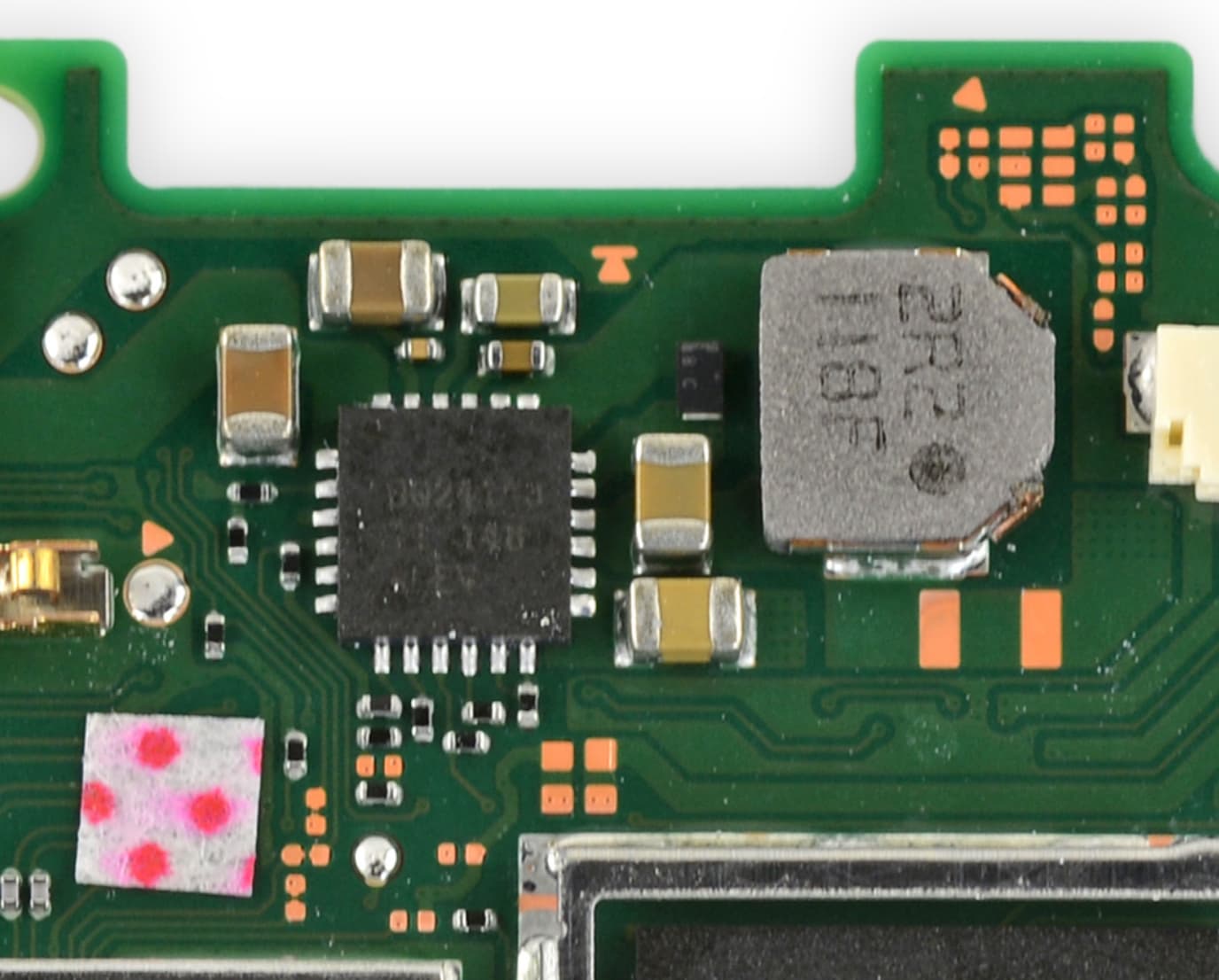

image1376×1106 111 KB

You check out the bq chip and its surrounding passives? believe this is what is actually responsible for charging.
