Nintendo switch Is there a missing compenent

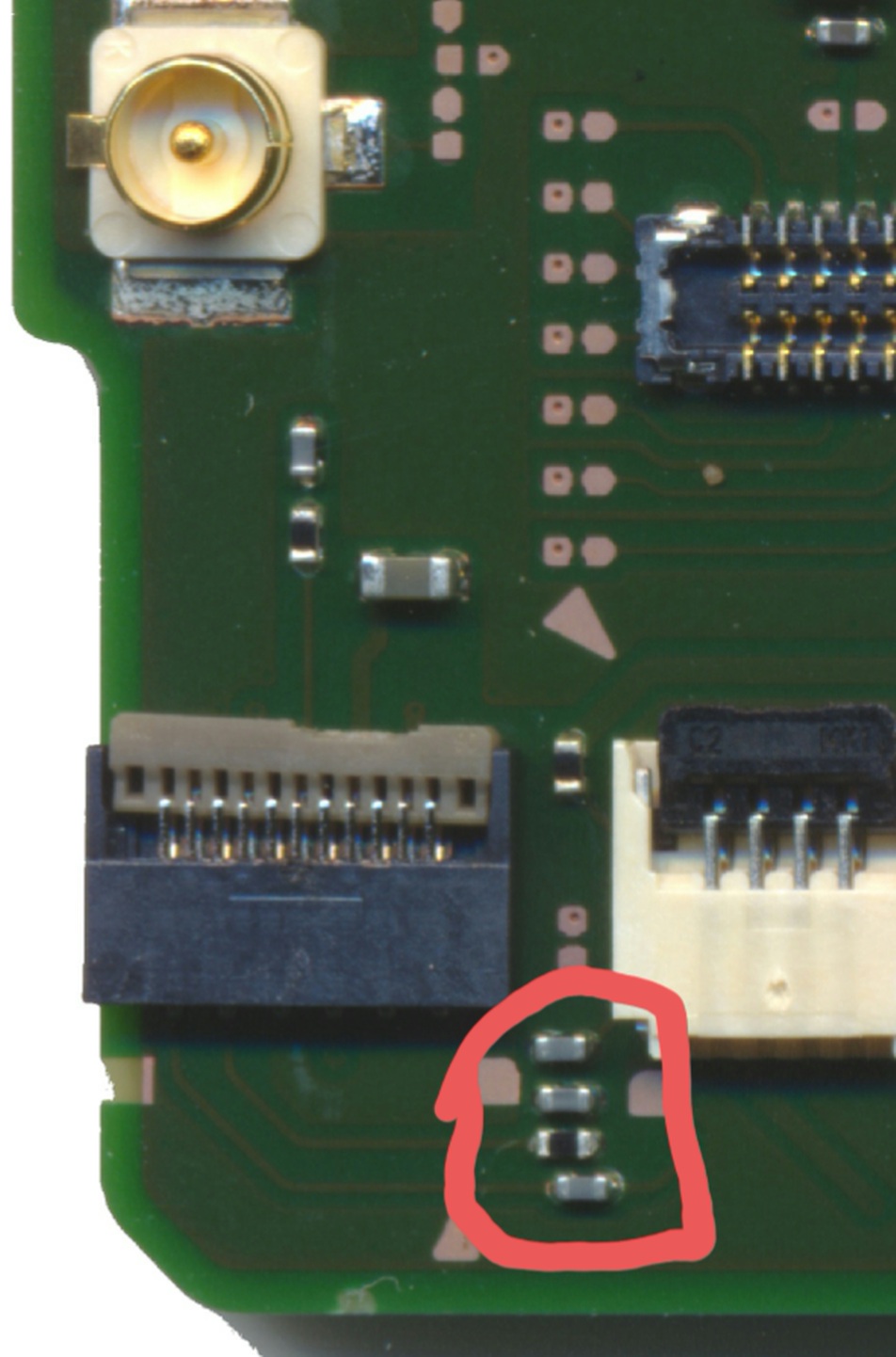

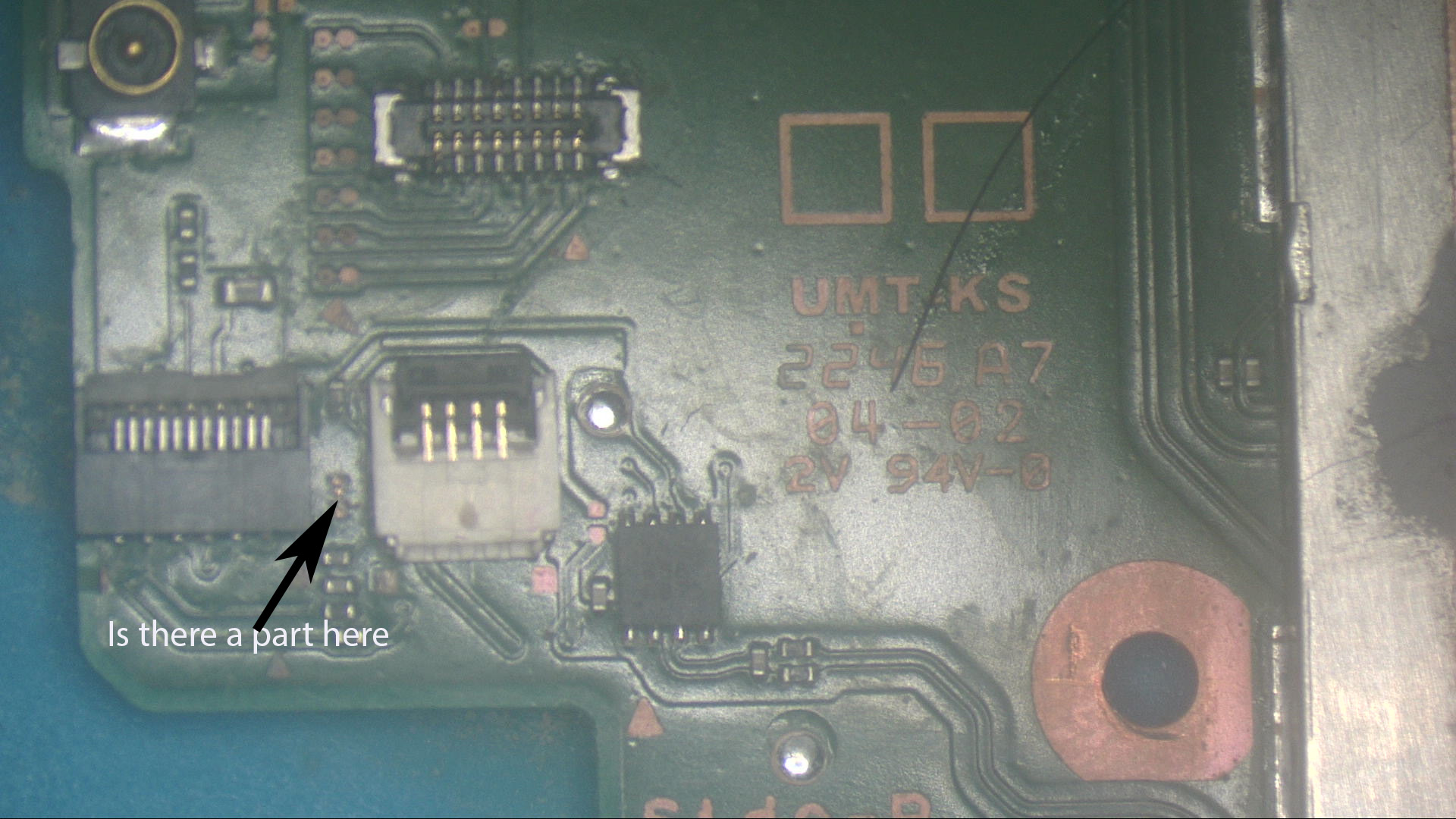

From the images should there be a component there. Both pins are connected to earth.

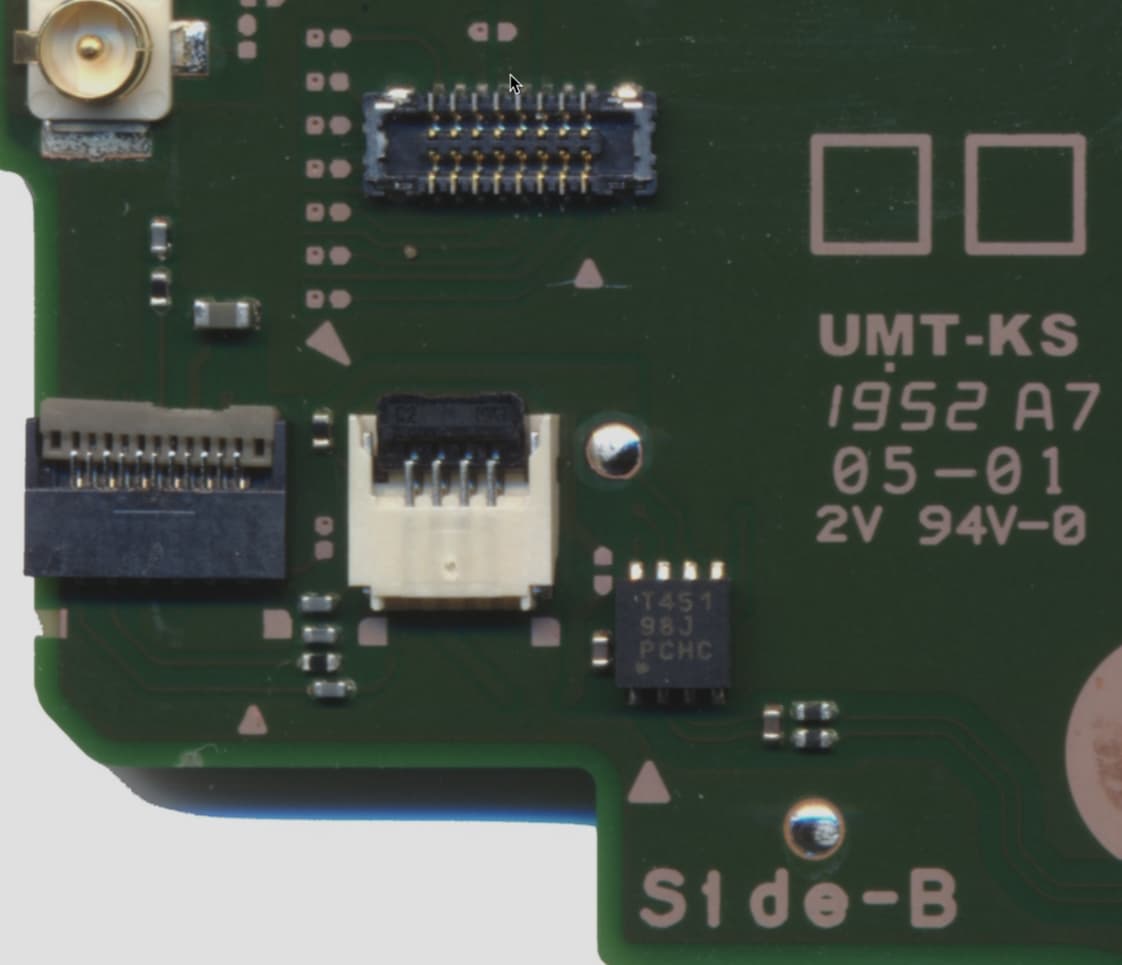

Update for compenent It is an V2 board

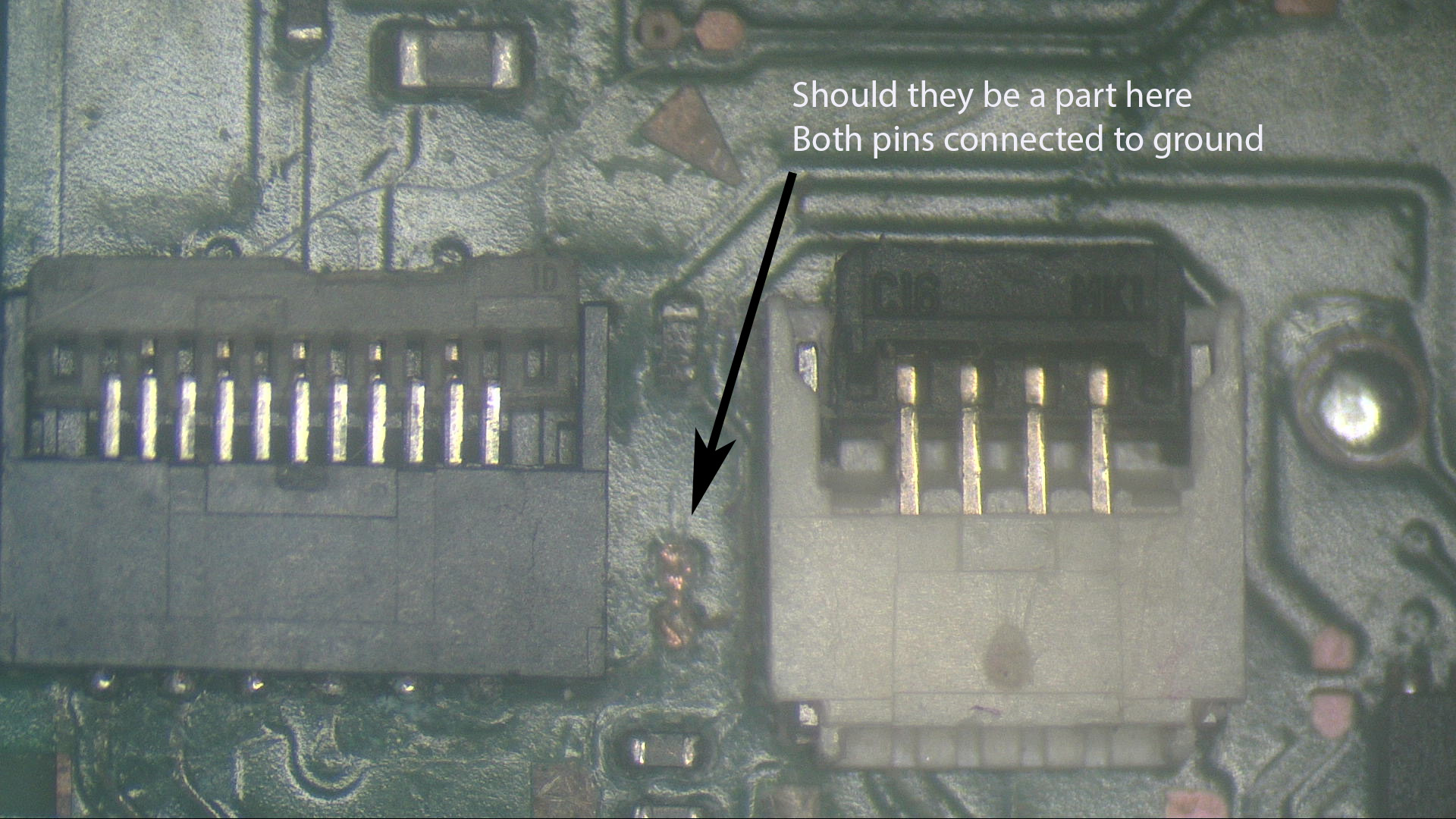

There does not appear to be. Just surface level test-pads/No-Stuff. No vias underneath either.


1 Like

thank you I was not sure

Where did you manage to get the diagram Can you get them for the rest of the board - Thanks

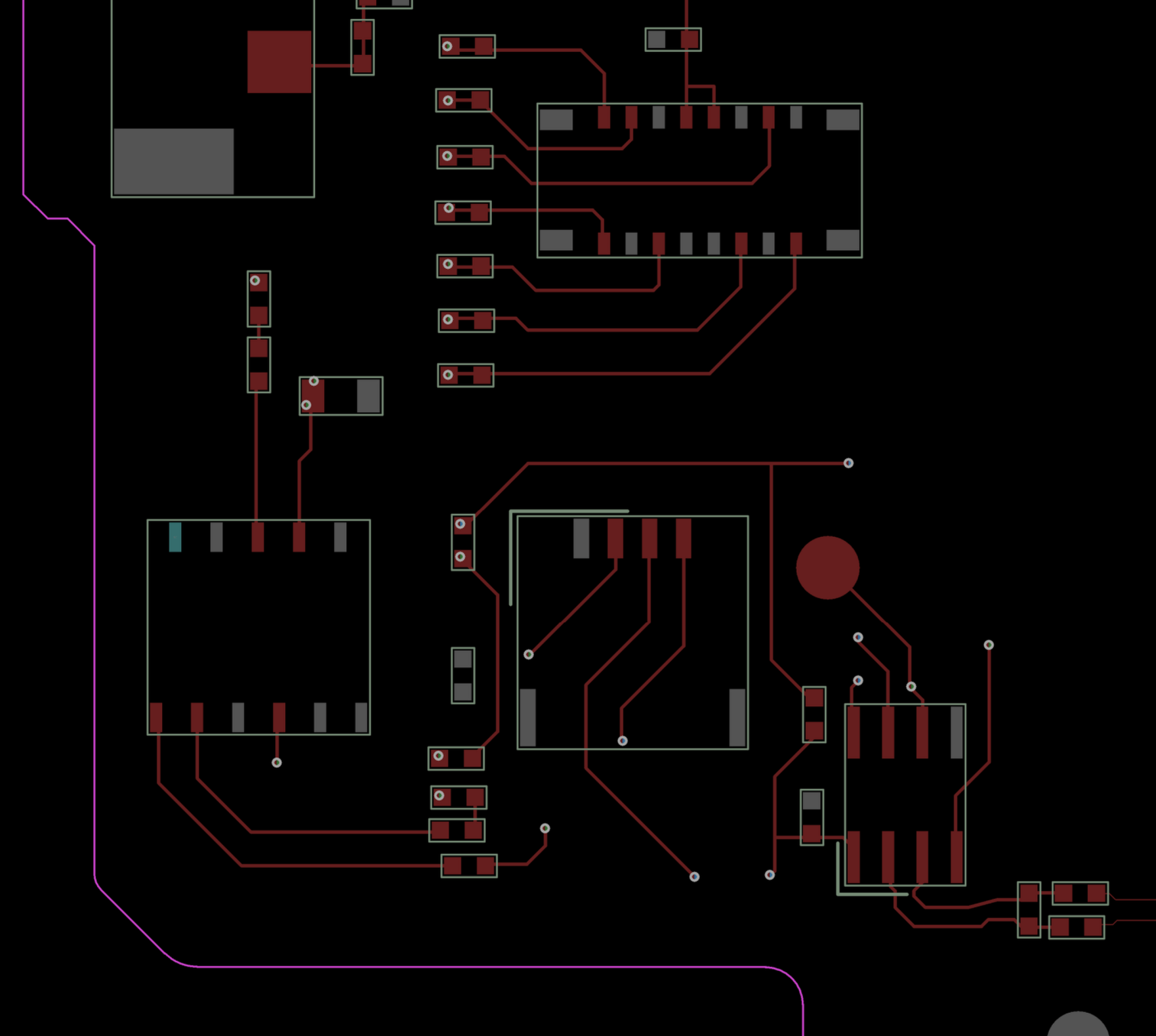

The board layers, and other resources, have been made available on a publicly accessible web directory:
https:// files.zzattack .org/index.php?dir=img%2Fconsole%2Fswitch

Be warned, it’s a small/slow server, so be prepared to browse slowly and downloads (You’ll definitely want to save to local storage, vs going back to the site) to take a while. I’m looking at various options on making these more usable. I’ve got a small rough C++ program I’m working on that works for investigating parts and whatnot, but it desperately needs optimized and is currently a glorified script for eating RAM (large images…). Would like to be able to build out a similar feature-set to the interactive one for the erista, lite, and oled at balika011.hu

1 Like

thank you very much Some great detail there
