Nintendo Switch Lite missing capacitor (?) near USB

Nintendo Questions Nintendo Switch Lite
1

Hello :slight_smile:

I got Nintendo switch lite with a problem. When I bought it, it does charge with only 5v and 0.2A only with one side usb connected, when I rotate it, it doesn’t charge. I can see that somebody changes usb, so I make it once again. I didn’t connect to charger, because I see one missing element, and one rotated. Can somebody help me to identify and tell me what I should order? It’s located backside, under usb, in 5mm line, there is probably an fuse and capacitor.

I don’t have probably enough posts here to to add an photo :frowning:

2

Please? :roll_eyes: Anybody? I looked almost everywhere, found some people with same as mine problem, but without any answer :frowning:

3

Please, upload an image at a hoster and share the link here. Edit the link, so you can post it here.

For example: https://_imgur.com/

4

https://_imgur.com/a/A9ohHSa

Thanks for get Your time :slight_smile:

5

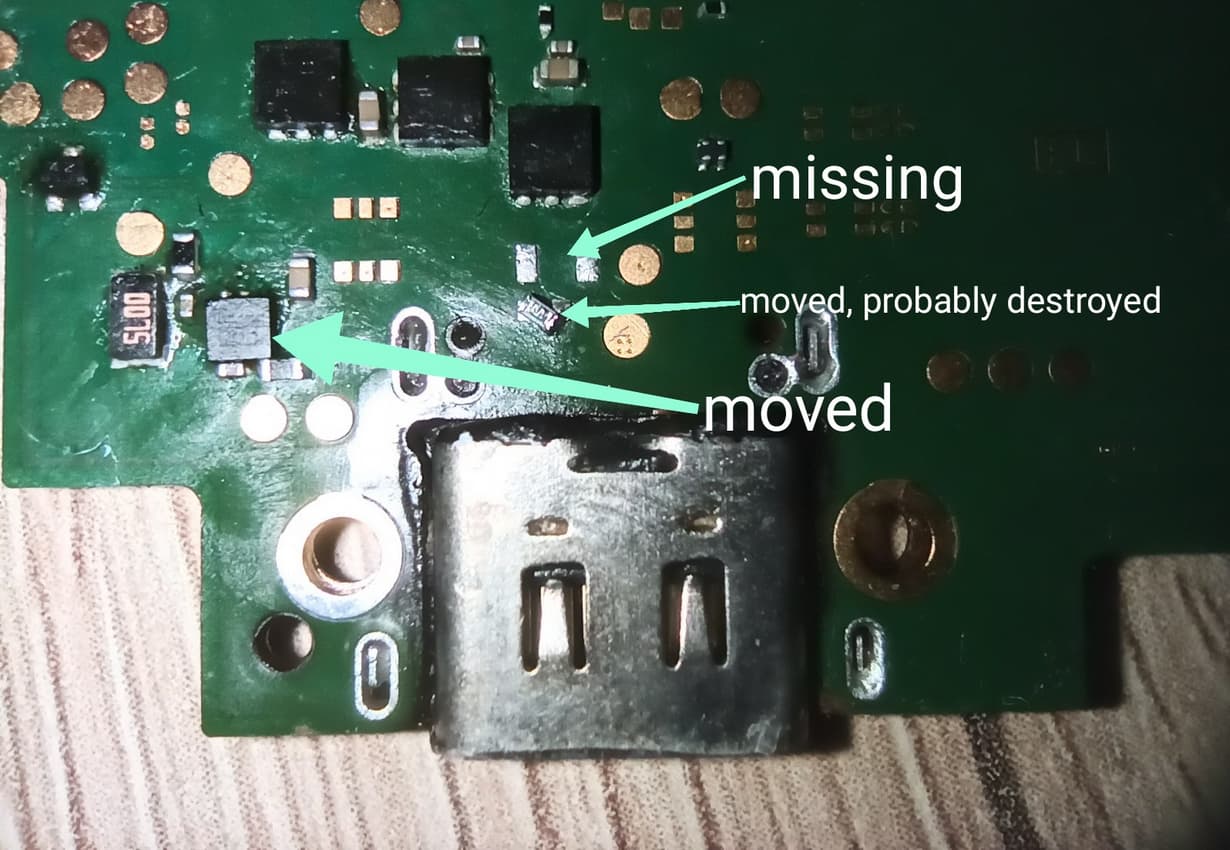

missing parts
missing parts1230Ă—850 110 KB

  • The USB C port looks melted inside beside the ground holes are not propper filled with tin.
  • The missing part is a 0805 10µF cap. The Switch will turn on without the cap. But should be there in regular use.
  • The little moved part is a fuse. If continuity is given the fuse is still ok.
  • The moved square shaped part is the fuel gauge chip with 3x3 BGA. Without prooper connection to its pads the Switch will not turn on.
1 Like
6

About that USB I know, I already ordered it :slight_smile: Somebody did bad job here, I desoldered it to check if all soldering points are on place and soldered it again without soldering ground points, just to check that it works. About all parts which are moved, I will try to correct them, and order cap which parameters You give me :slight_smile:

Big thanks!!

7

Today package arrived, so I immediately sit for it. Job done, but… it doesn’t powered on, I checked fuse and it doesn’t have continuity :frowning: New USB-C and cap soldered.

https://_imgur.com/a/5We3ktV

8

So the fuse now is blown?
Do you have a short on the m92t36 side?

I would reball or change the fuel gauge chip to be sure its nine bgas are fine.

9

Yup, I take out that fuse. Need to order new one. Tomorrow I will check that chip :slight_smile: I think that somebody changed or reflow it before, there was flux in multiple places on board when I opened it. Do You know what is that fuse to order it?

10

I would use a 0402 3A fuse.
For testing you can bridge the fuse with a little wire.

11

I can’t find polyfuse 3A with 0402 size, only fuses which blows, minimal size of polyfuse are 0603. Do You think that 0603 can sit there, or it’s better to use one time fuse 0402?

12

I don’t think it is a polyfuse. I would use a regular fuse.

13

Alright, so, I bought already m92t36, BQ chip too, and damaged flex 29 pin socket.

After I placed new USB c, fuse, socket, I managed to replace M92t36. I mounted it, Switch turned on, but… without LCD. Sound was working, backlight too, but without screen. I tried to clean all, nothing works. I plugged in ampere meter to usb, and it takes 5.26v and exactly 0A, on both sides. I replace M92t36 to next one, this time with BQ chip, and main board after I plugged only it, without screen, battery etc. takes 5.26 and 0.06A on both sides. I mounted everything, but now console isn’t even turn on xD

While battery plugged it doesn’t even takes that 0.06A.

For now I will try to find any shortages, but today I hate this little nightmare, I spend around 7 hours to put it away again non fixed.

14

I seen that some people get damaged m92t36 from AliExpress. Is there any way to find that mine is working or not when it’s not mounted?
