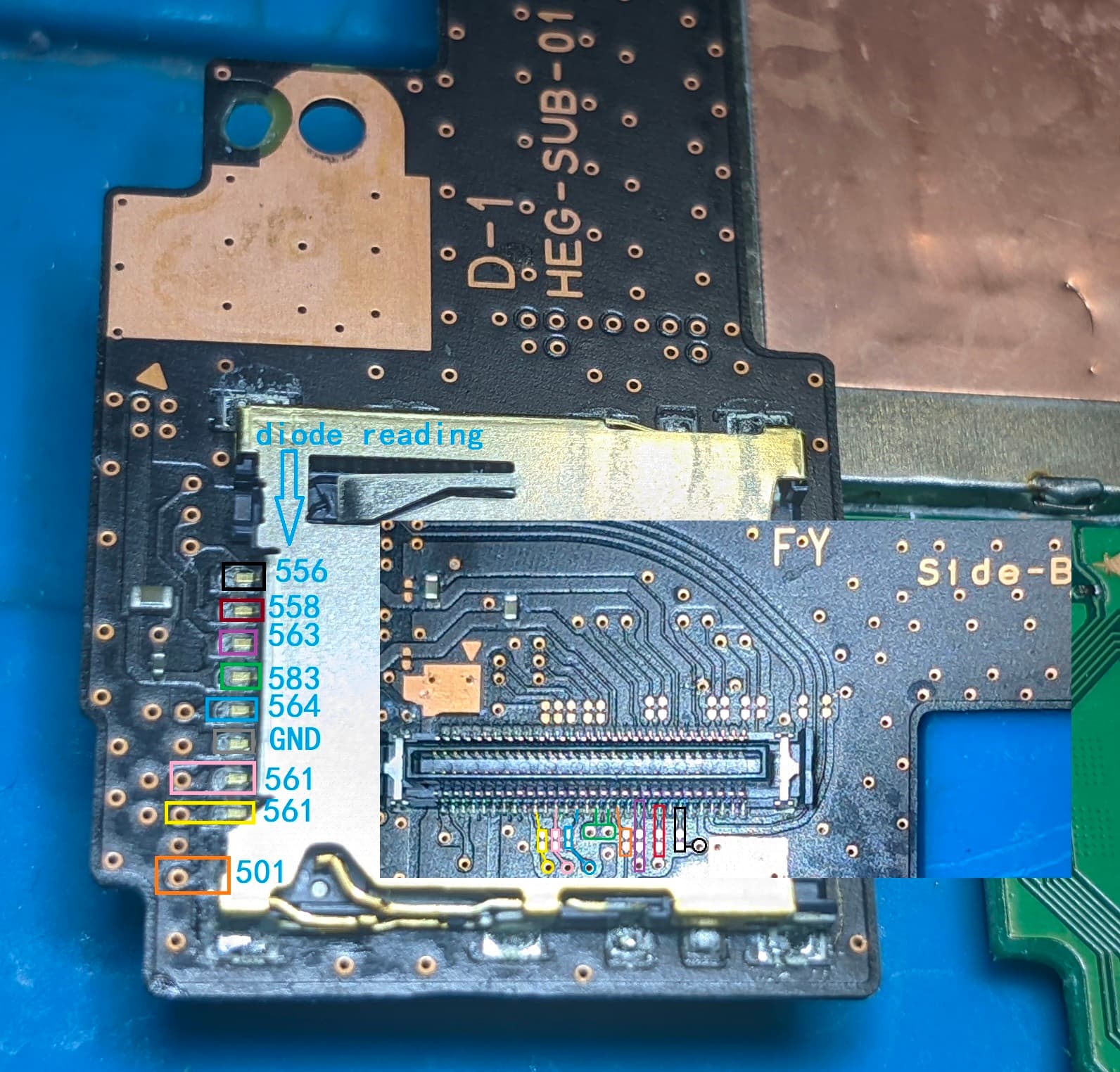

Not sure if you managed to fix the sd reader. I recently got a OLED water damage came in,and just spent some time pinout the sd reader. Here is my pinout and diode reading
I actually ended up selling that switch. Thank you for the reply though! What program do you use to make these diagrams?
I usually just use windows paint (built in software)
