Picfofly FPC USB broken help 🙏🏻

Nintendo Questions Nintendo Switch
1

Hello i have buy an picofly for Alie
And the fox are broken , I remove it’s and I want wired the usb but I don’t know the good usb ground usb + dat + data -
When I can soldering my wired ?
Thanks
Sorry iam French

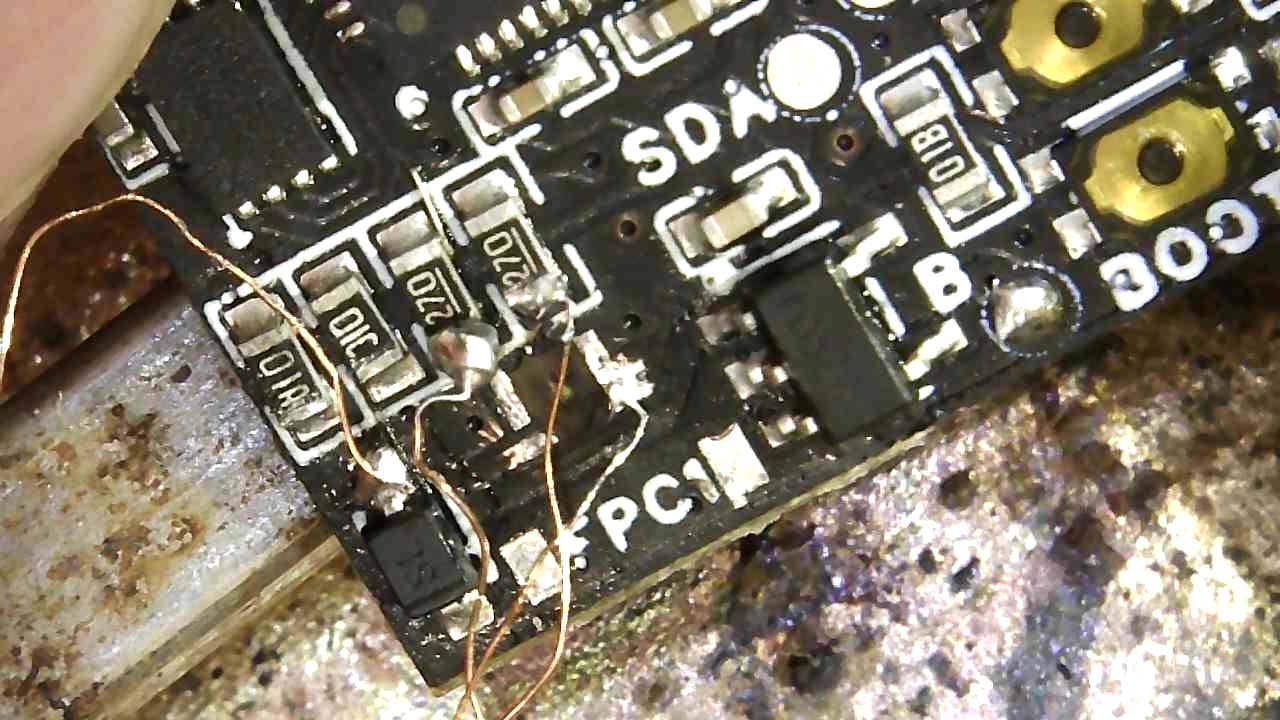

IMG_1486
IMG_14863024×4032 2.27 MB

2

Do you have idea where is data + data - ? Thanks

3

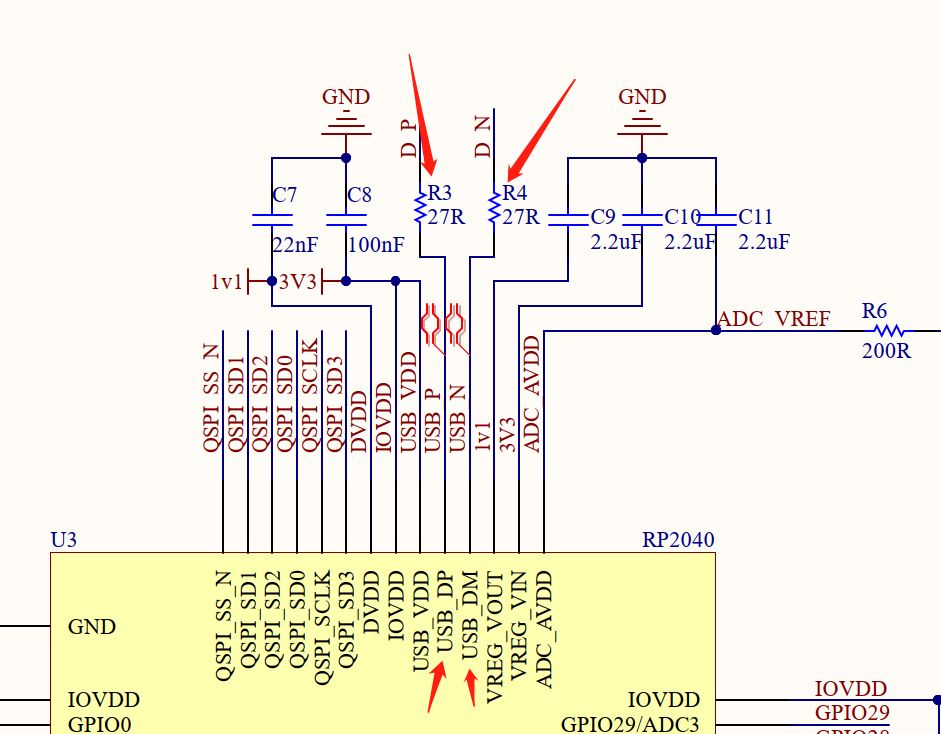

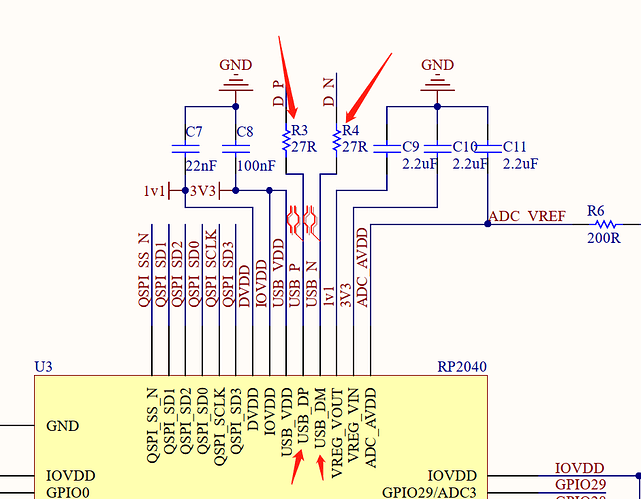

image941×734 94.9 KB

4

“270” goes to rp2040 chip pin47 is D+
“270” goes to rp2040 chip pin46 is D-

5

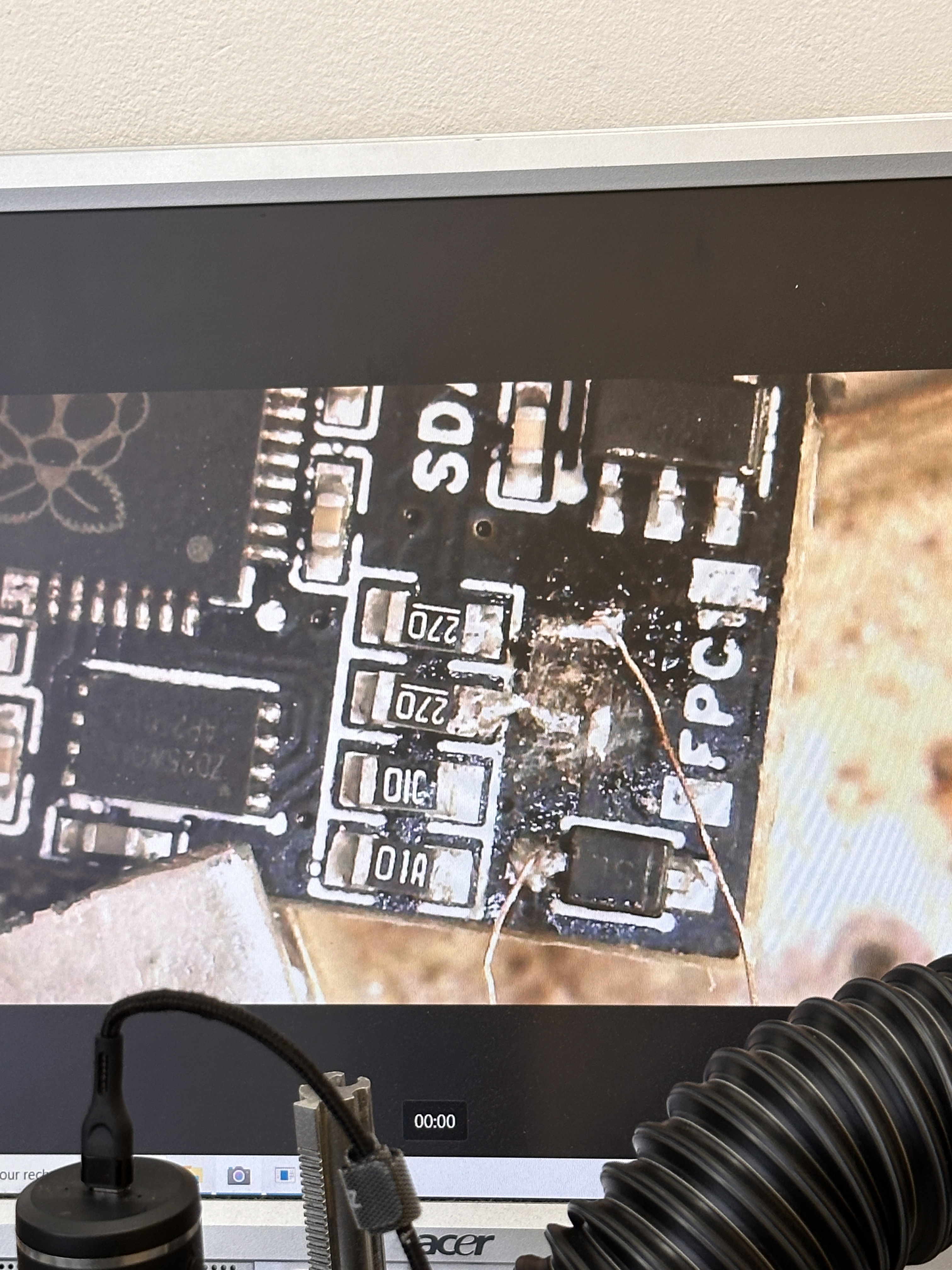

Hard to tell by the picture. I would expect four pads at the missing fpc connector.

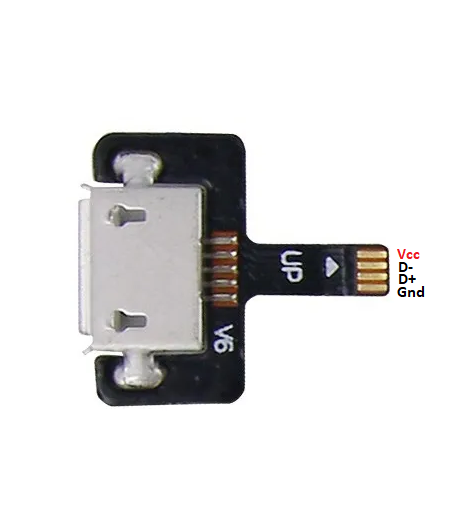

picofly_usb_pinout
picofly_usb_pinout467×526 70.8 KB

6

Thanks you so much I try it tomorrow

7

you need to use flux so the soldering isn’t so terrible :+1:

8

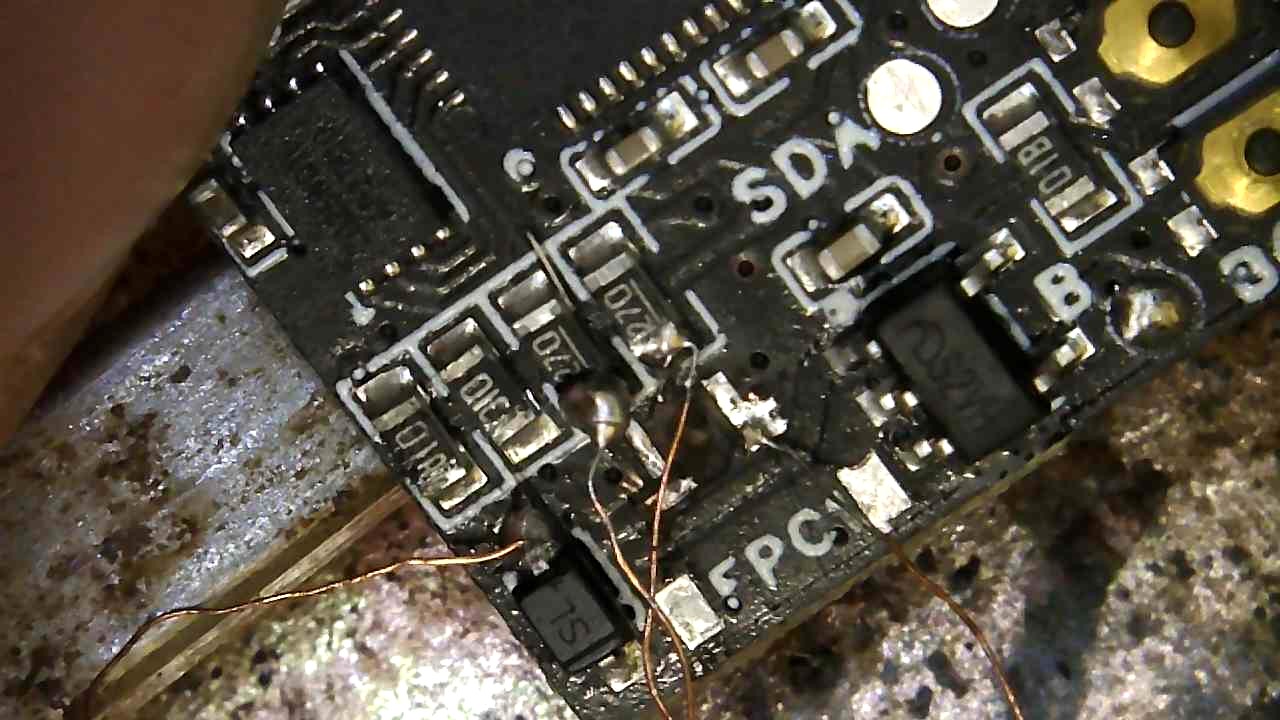

I have soldering data + and data - but no storage masses appeared on windows

I have color of picofly blue and yellow when I connect and don’t touch the boot button

But when I press boot button and connect
Nothing happen :sweat:

WIN_20230710_12_20_31_Pro
WIN_20230710_12_20_31_Pro1280×720 162 KB

WIN_20230710_12_21_04_Pro
WIN_20230710_12_21_04_Pro1280×720 127 KB
