It won’t turn on anymore. I tried changing the power supply, but it doesn’t work.
How ignorant!

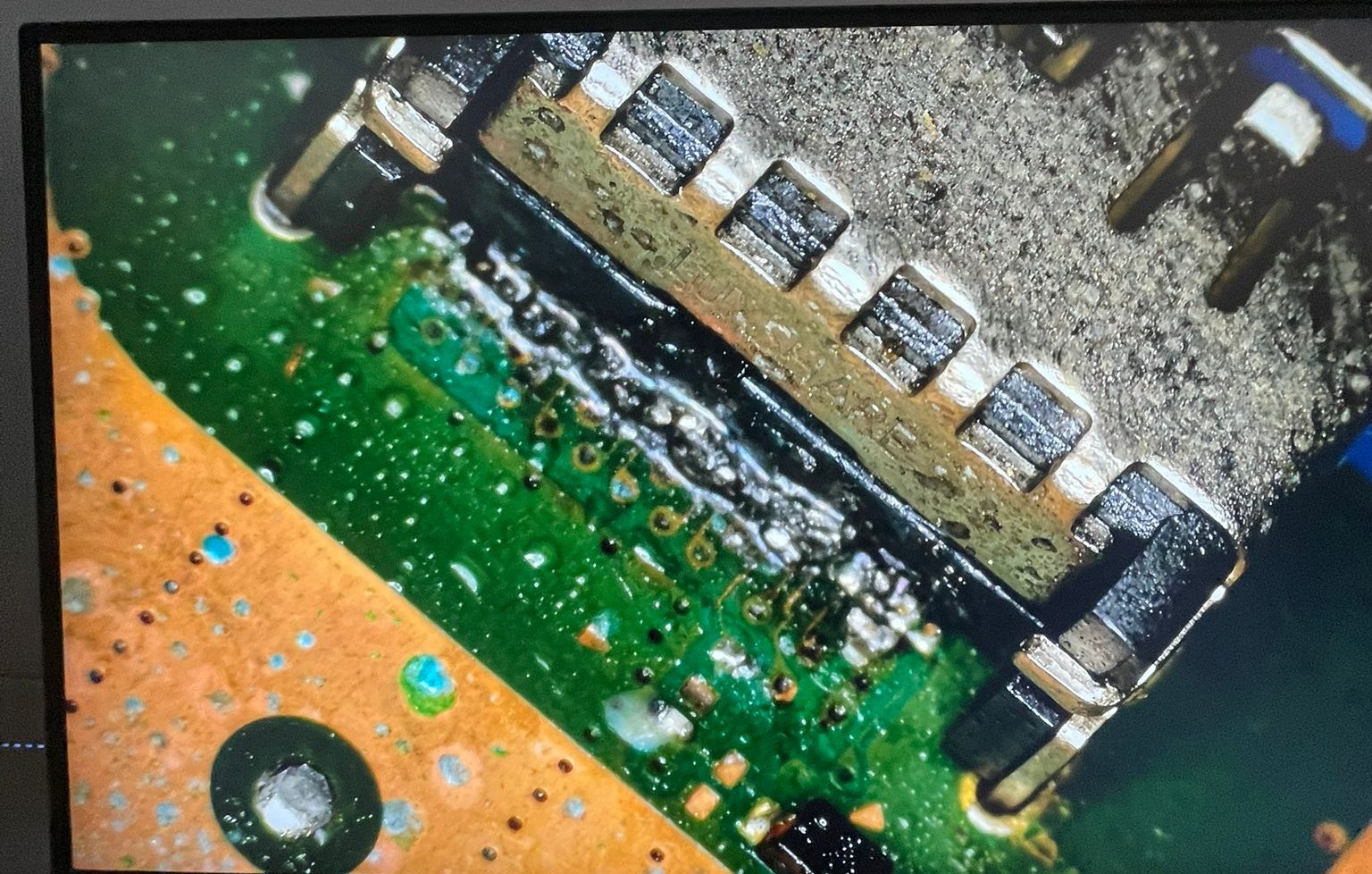

I removed the port, cleaned everything, and there are two torn pads.
Before putting it back in, I’m doing a check, and it’s giving me shorts in several areas.
Variable boot sequence 102-90-118 milliamps
Short in:
F7502 area
F7003 area
F7002 area
Area under the USB ports
Where do I start?
Fuses OK
3.3 missing

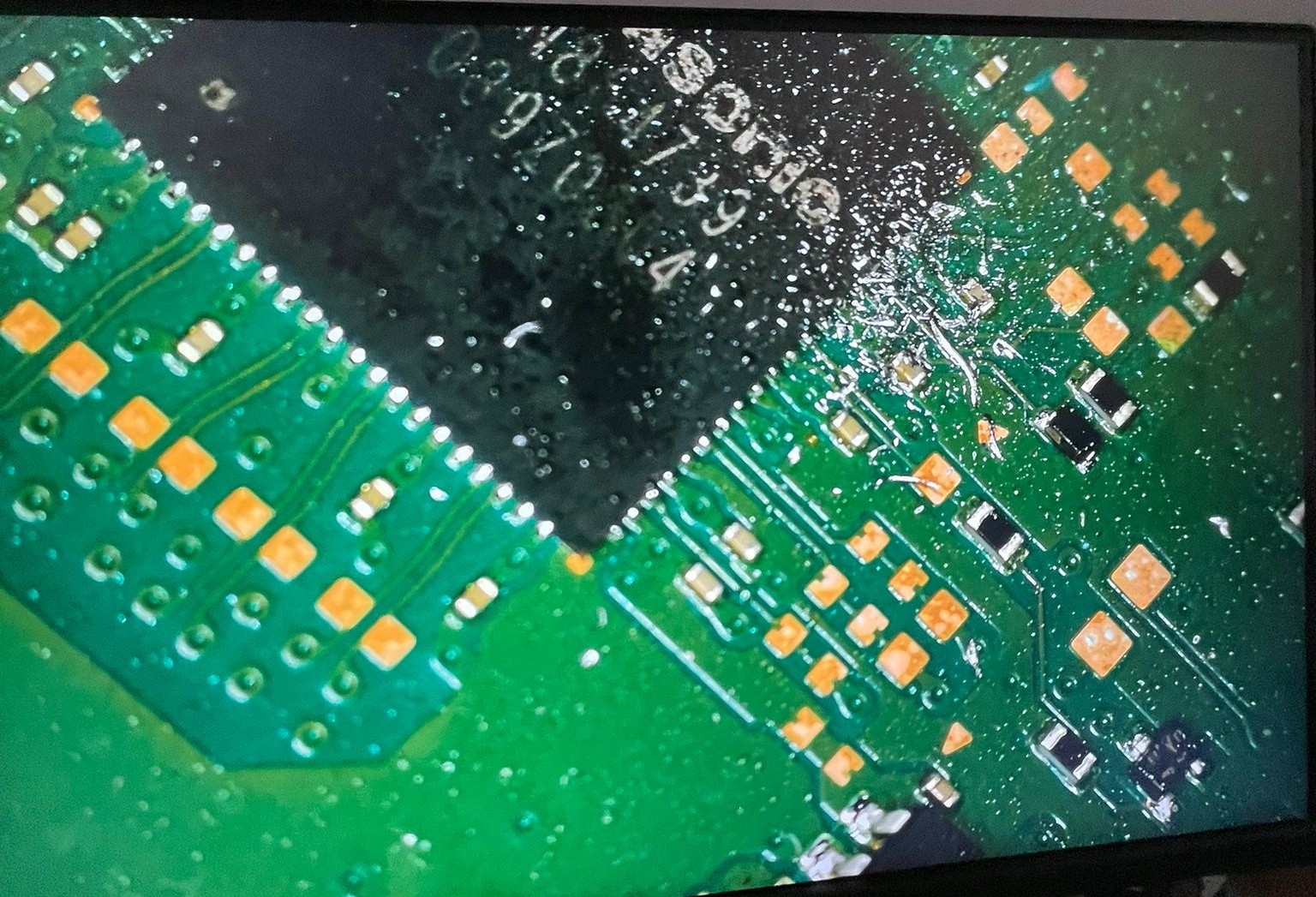

Panasonic
SB
They seem fine (no shorts in the area)
If you have dead short to ground I would inject 0.5V and see what gets hot.
Okay, the first short has popped out… look at this shit!
The capacitor is cracked, but there’s some weird solid stuff inside, and to make matters worse, there’s a ball of solder underneath!
Okay, the first short has popped up… look at this shit!
The capacitor is cracked, but there’s some weird solid stuff inside, and to make matters worse, there’s a ball of solder underneath!
Do you know the capacitor’s value and the name of the IC?
IC7008 is TPS2553DDBVR , the cap on the left is 0.1uF_6.3v_0201

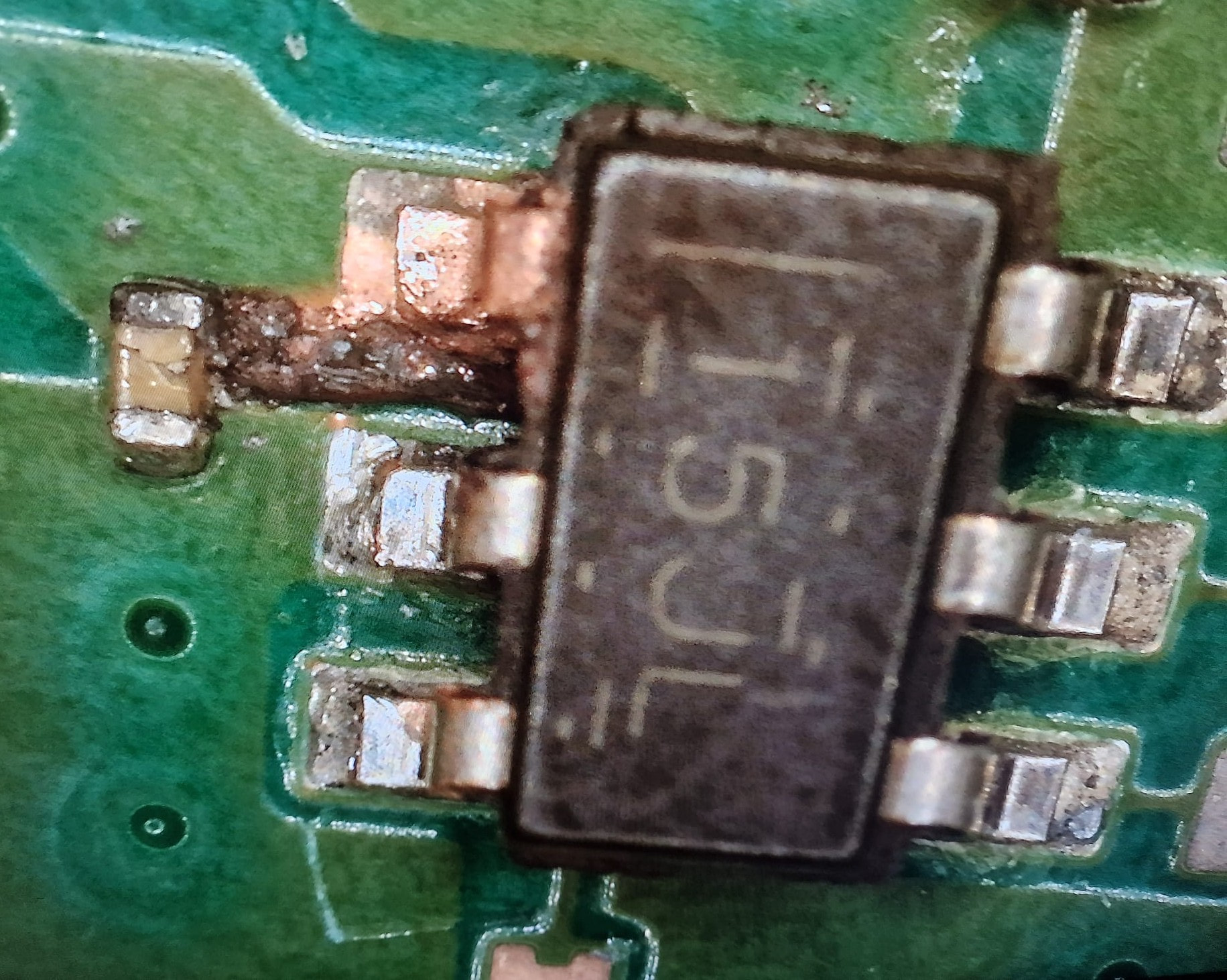

You have a quite large burn-in mark on the pin1(5v_standby) rail under this “15JL“(TPS2553DDBVR) IC, I would suggest you remove the ic and grind off the burn mark to see if any layer got carbonized

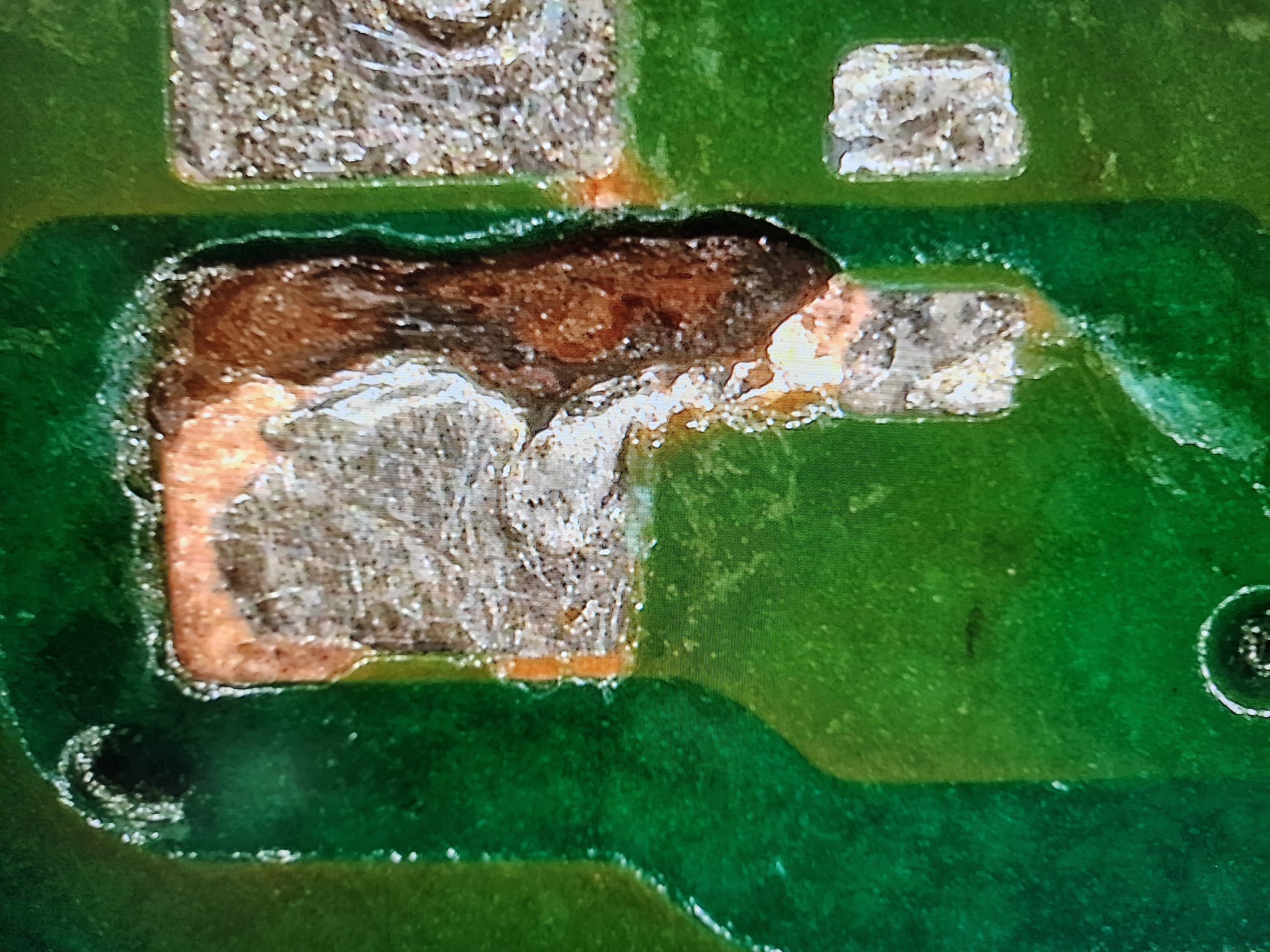

Removed, this is the situation.
I don’t know if it’s some kind of cover, it looks like pin 1 is exposed to the capacitor and they covered it.
According to the boardview, they’re connected if I’m not mistaken.
What do you suggest?
Meanwhile, the short has disappeared on the entire 5V line, and it’s also gone on the 3.3V line.

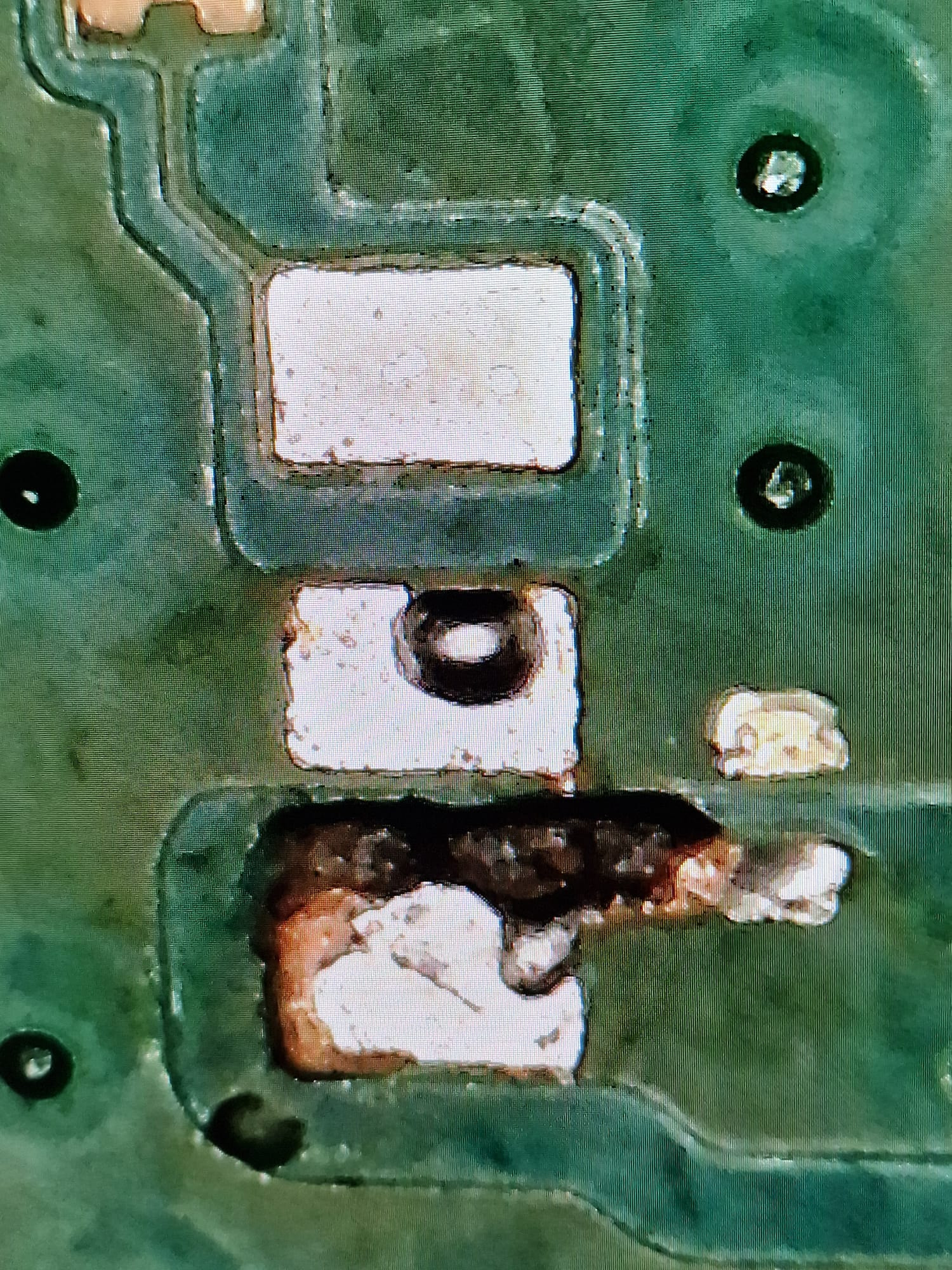

yes, the small 0.1uF cap is on the 5v /pin1, I would grind a bit more until all black/carbonized part gone and put solder mask to cover up the hole.
That’s a good news
Cleaned and replaced 15JL, the console boots with white light. I can’t find a replacement 1uf 6.3V capacitor but just 1uf 16V X7R 0603 should do the same right? 16V is the max voltage limit right ?
