Ps5 edm-010 wlod

PS5 Questions
1

Hello,

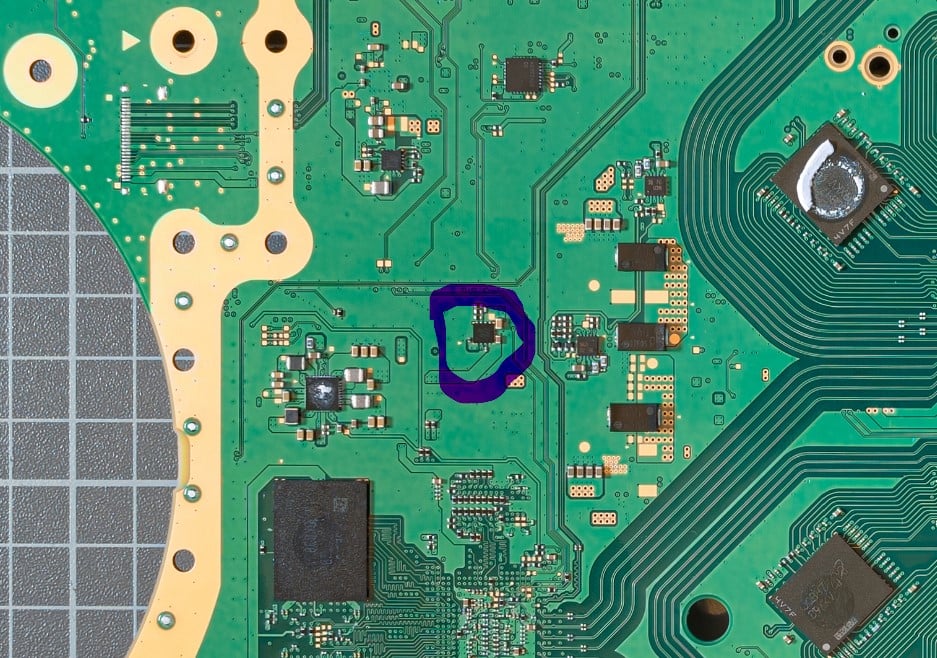

I am looking for some guidance with this PS5 that i’m struggling to get working. It was a no power issue that has now turned into white light no video. I fixed the power supply then got single beep no power, replaced the encoder due to shorts around the chip and got white light no video. I then replaced the HDMI port and another encoder and still have the same issue. I used a thermal camera and 2 things are getting hot on the board. A chip labeled m022 504x and 5 leg connector near hdmi labeled y18k6. I checked the voltages of the Y18K6 connector and voltages are fine. No shorts around either chip.

Any help or any troubleshooting tips would be greatly appreciated.

Tagging @jkyoho bc is a beast.

ps5hot
ps5hot1200×1600 330 KB

Screenshot 2024-01-10 153624
Screenshot 2024-01-10 153624937×658 170 KB

2

forgot to add the temps.

The m022 504x is getting to 65 and the Y18k6 is getting to 50 degrees.

3

Show the area you worked on, not just random picture online.
I assume you checked all 19 pins diode reading on HDMI port?

4

Sorry did not have access to the pictures when posting. will update later.

Yes I checked all 19 pins diode reading on HDMI all normal.
checked all readings on encoder all normal.
Cannot find any shorts on top or bottom of board around HDMI area.

5

I have the ps5 which is doing the same

6

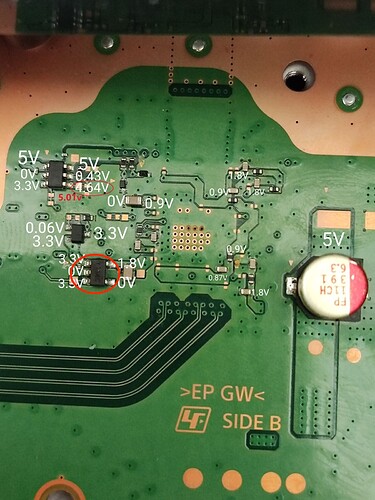

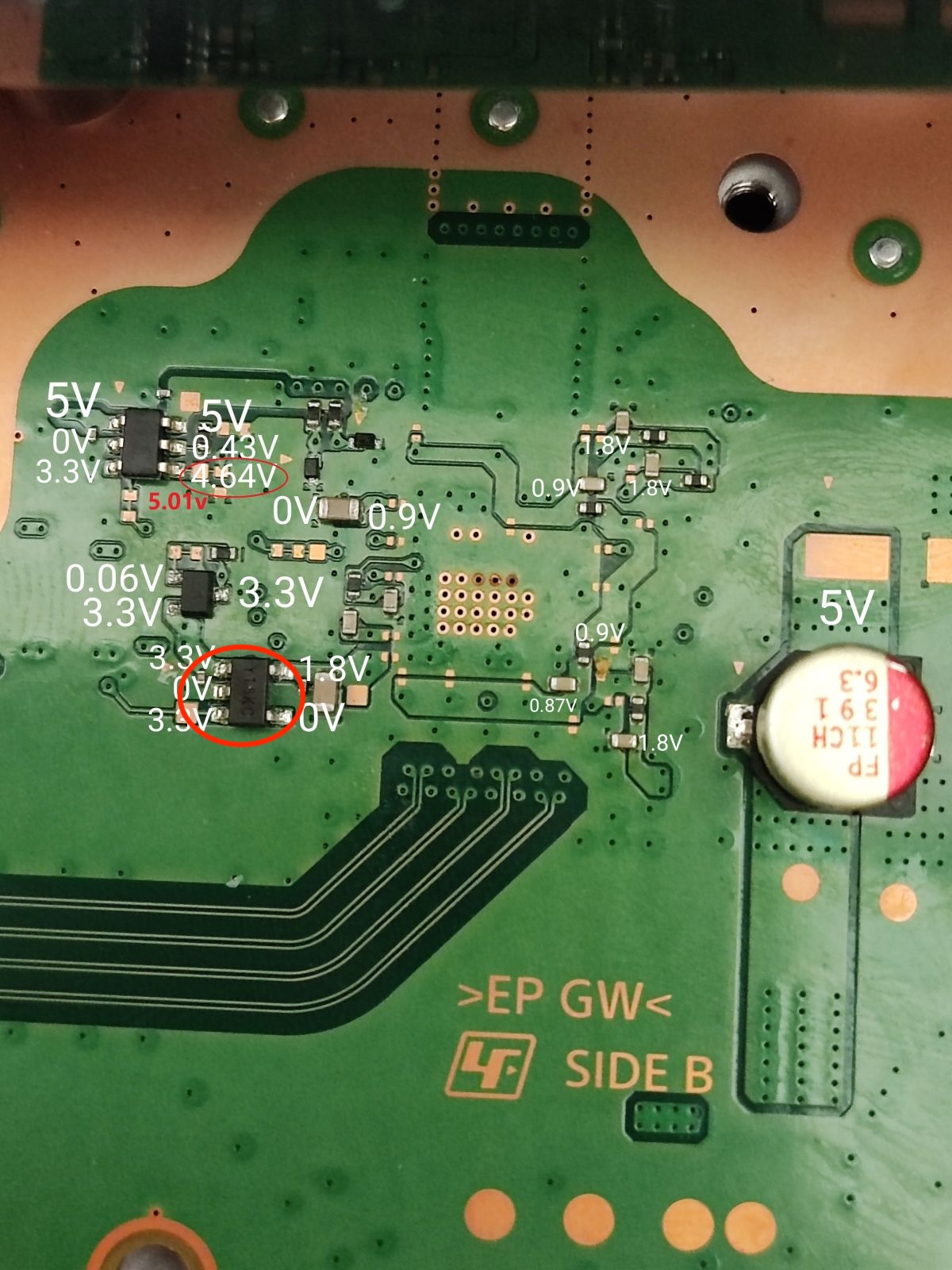

Could you help me identify the chip circled in red. I ordered and replaced it with TLV75509PDBVR but it causes no power beep. Original chip does work with white light no video. This chip is getting significantly hot when powered on.

7

Isn’t that ic you ordered output 0.9v fixed? And from Picture 1 you could tell output should be 1.8v no?

8

I cant believe I overloooked that. I pulled the part from another post. Thank you.
