PS5 EDM-020: Specs for 0603 capacitor behind RT5126 / DA9065 (5V line)?

PS5 Questions PS5
1

Hi everyone,

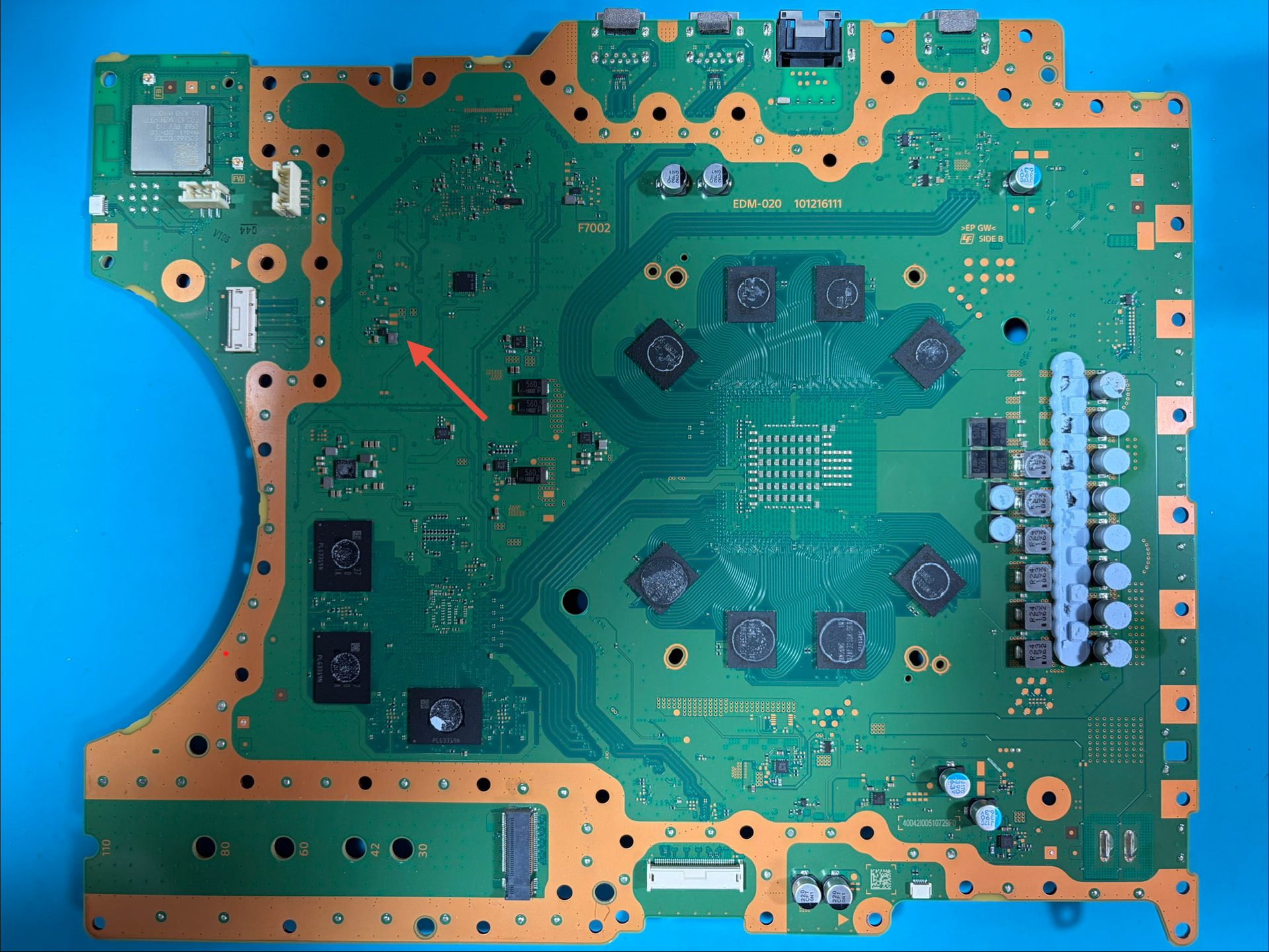

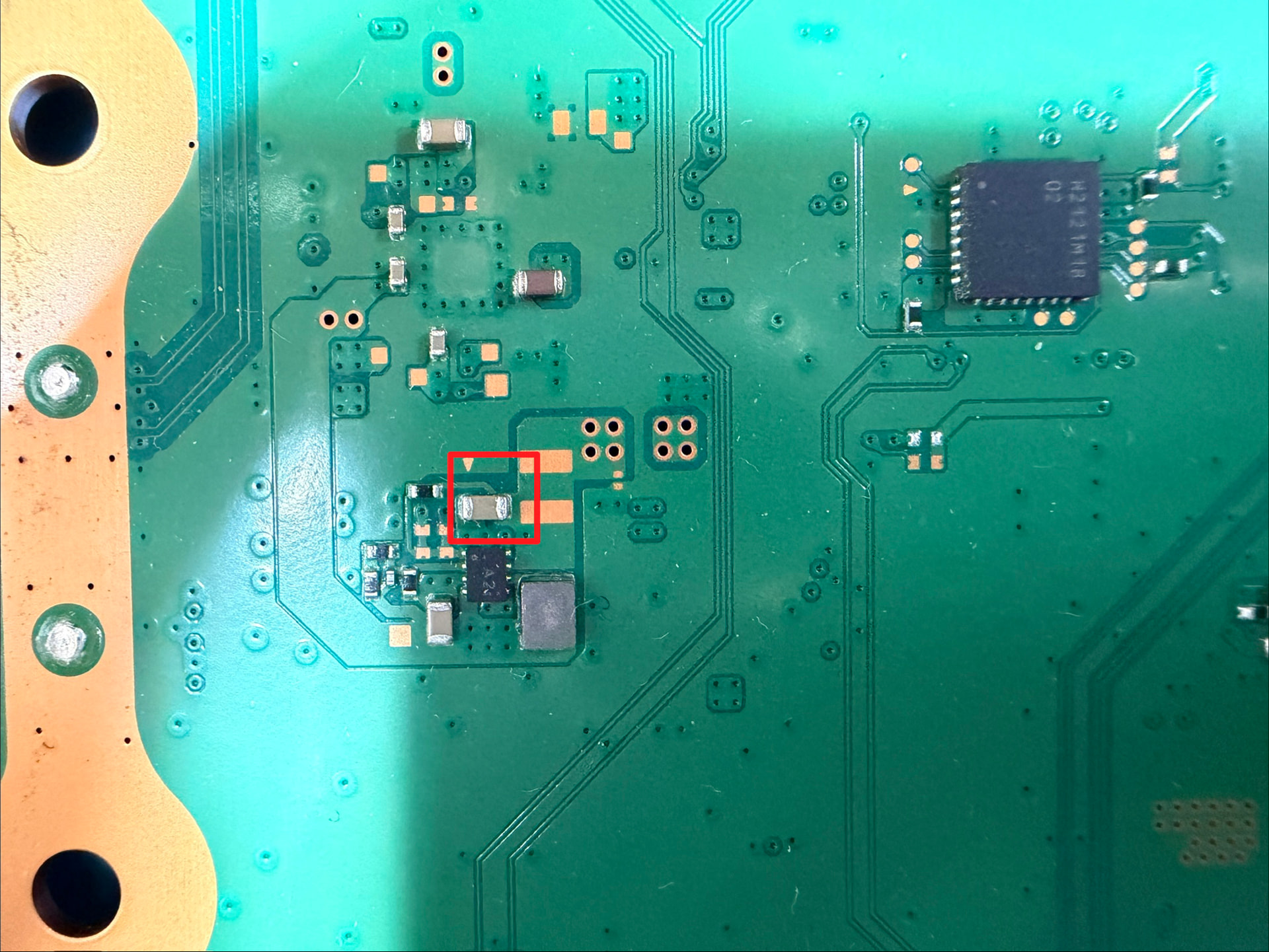

I’m repairing a PS5 motherboard (EDM-020) with a 5V standby issue. I found a shorted SMD capacitor directly on the backside of the RT5126 (or DA9065 on some board revisions) PMIC.

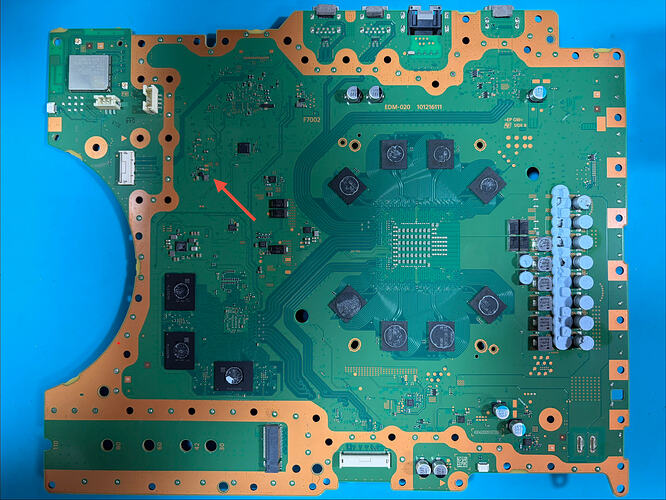

微信图片_20260725161243_77_3
微信图片_20260725161243_77_31920×1441 805 KB

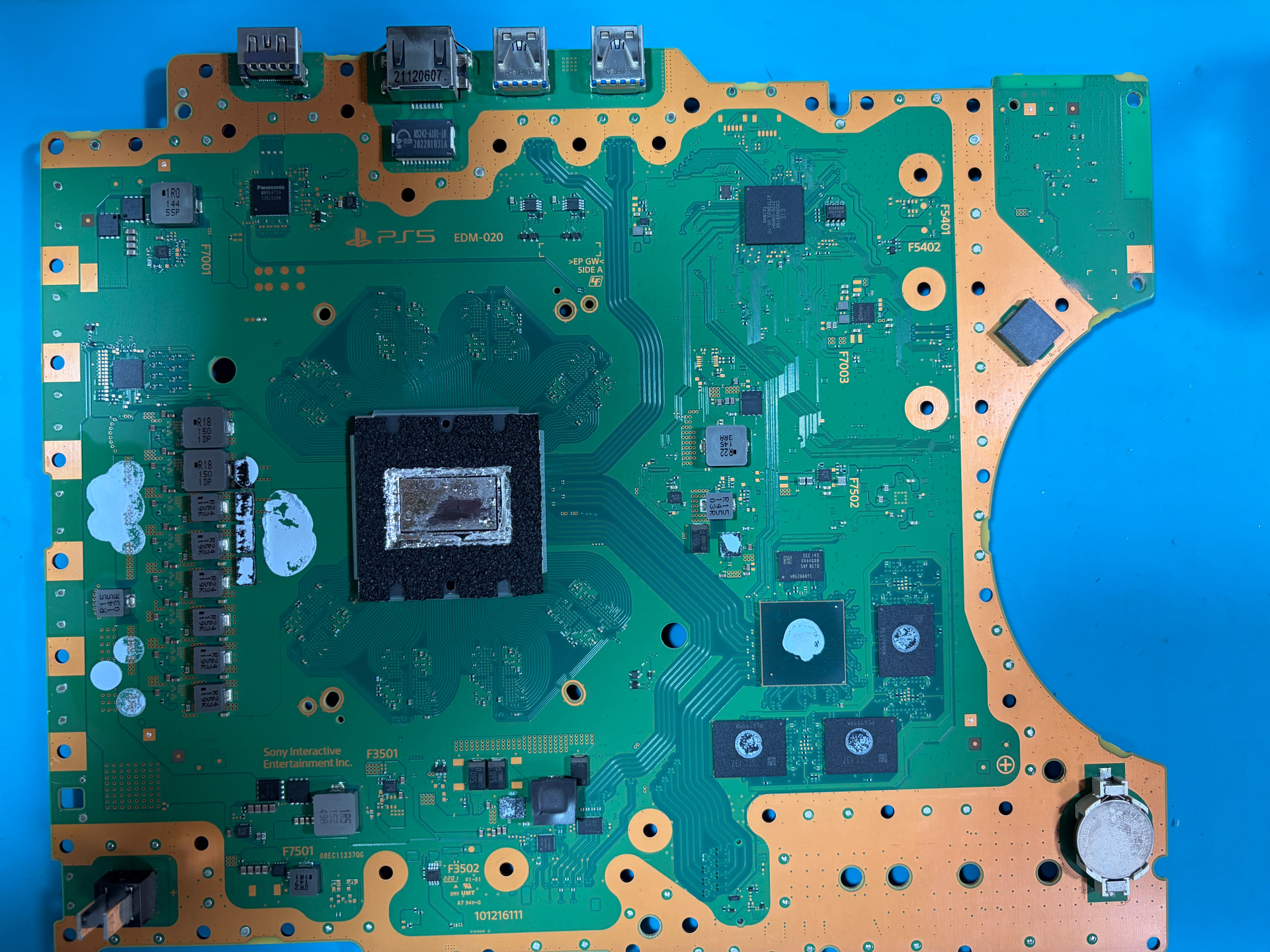

微信图片_20260725161244_78_3
微信图片_20260725161244_78_31920×1441 653 KB

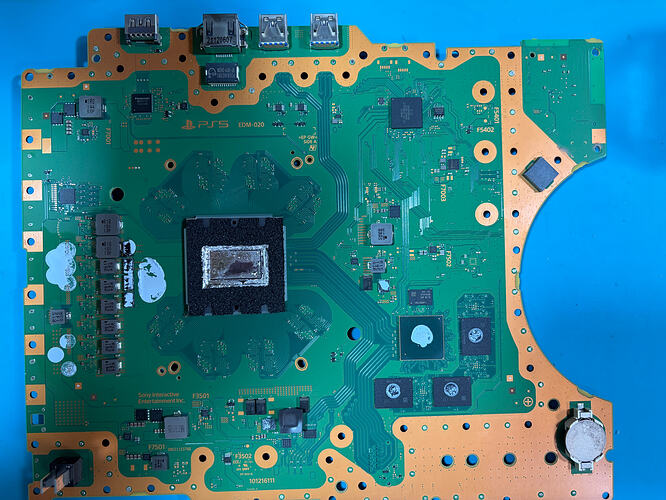

微信图片_20260725161245_79_3
微信图片_20260725161245_79_31920×1440 813 KB

Known Details:

  • Board Model: PS5 EDM-020

  • Location: Backside of RT5126 / DA9065 PMIC

  • Package Size: 0603 (Confirmed)

  • Circuit: 5V standby / filtering rail

Questions:

  1. Could anyone with donor boards or schematics verify the exact capacitance (e.g., $10\mu\text{F}$, $4.7\mu\text{F}$, or $22\mu\text{F}$)?

  2. For voltage rating, would 10V or 16V be appropriate here?

Thanks in advance for any help!

2

No beep and blue light. Missing 3.3v and 5v near RT5126 and near power button. 3.3v is missing near hdmi port but 5V near hdmi is present.

3

22uF_6.3v_0603 from schematic

10v rate is ok but since it’s on 5v rail, 6.3v is the default voltage rate for this cap

4

Great. Many thanks. I have tried 4.7 uf 16v

And it also works.

5

Some caps are a bit confusing:

C7005 =
A) at schematic: 22uF X5R 1709 metric 6.3V
B) at part table: 47UF X5R (2012 metric) 20% 6.3V
C) at TPS62822 datasheet: 4.7 μF ±20%, 6.3V, ceramic, 0603 imperial, X7R
D) own measurements: 22µF 0603’ (1608 metric) >5V = min. 6.3V
