PS5 EDM-033 one beep, no light, no power. Noob needs help please

PS5 Questions PS5
1

Hi guys. Total noob here to the PS5 board repair scene. I have an EDM-033 board that gives the one beep no light error. My knowledge is very limited concerning the process of diagnosis and possible repair of the system. I have used UART and below are the errors:

[*] Operation: Run Read Error Codes
[Slot #] [Date Time] [Error Code] [Priority] [Error Message]
01 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0000 FFFF FFFF:34)
Click for TSB Information

01 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0000 FFFF FFFF:45)
Click for TSB Information

02 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0000 FFFF FFFF:34)
Click for TSB Information

03 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0000 FFFF FFFF:45)
Click for TSB Information

04 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0004 FFFF FFFF:38)
Click for TSB Information

05 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0004 FFFF FFFF:49)
Click for TSB Information

06 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0004 FFFF FFFF:38)
Click for TSB Information

07 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0004 FFFF FFFF:49)
Click for TSB Information

08 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0004 FFFF FFFF:38)
Click for TSB Information

09 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0004 FFFF FFFF:49)
Click for TSB Information

0A 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0004 FFFF FFFF:38)
Click for TSB Information

0B 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0004 FFFF FFFF:49)
Click for TSB Information

0C 7/2/2026 1:13:21 PM 80910002 Severe Known Unknown 80910002 (SSD Controller) - Possible 504X 2v, Power Failure - Check Fuse F7001
|-(OK 00000000 80910002 FFFFFFFF FFFF00F6 10000000 2186 0004 FFFF FFFF:38)
Click for TSB Information

0D 7/2/2026 1:13:21 PM 80870003 Severe Flash Controller - Flash Controller Boot Failed - Flash Controller Boot Failed : Couldn’t read Chip Revision. Post Secure Loader Error - Check fuse F7001 - (No beep, no light)
|-(OK 00000000 80870003 FFFFFFFF FFFF00F6 10000000 217B 0004 FFFF FFFF:49)
Click for TSB Information

0E 7/2/2026 1:13:21 PM FFFFFFFF Low No Errors
|-(OK 00000000 FFFFFFFF FFFFFFFF FFFFFFFF FFFFFFFF FFFF FFFF FFFF FFFF:5A)
Click for TSB Information

I checked F7001, it was blown. I replaced it, cleared the error logs, tried to boot the system…that was unsuccessful. Checked UART again…same errors. I also did some probing and both 5V and 12V are present, did not locate any 3.3V. Any guidance on how to proceed, greatly appreciated.

2

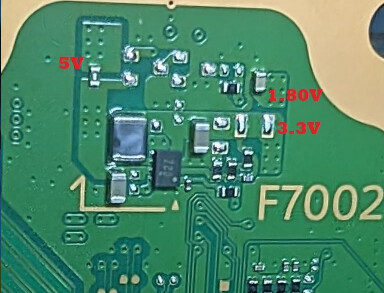

F7002 area has dc2dc ic gens 5v to 3.3v

image384×293 42.6 KB

3

Hey, Thanks so much. I checked these areas. They all have the proper voltages. Where next can I check for errors given the UART log.

4

Did you check the left and right sides of the f7001 for shorts before replacing it?

5

What do I check for and how do I check for it?……. Remember….. totally new to this scene.

6

How were you able to add a picture to your post? Every time I try it says “There was an error, you cannot add a picture” or something to that effect.

7

I replaced it because it was shorted, There was no continuity beep when I assessed it.
