PS5 HDMI port replacement with the PS4 slim port with jumpers

FXDX · December 31, 2020, 11:41am

PS5 HDMI port replacement with the PS4 slim port with jumpers. Thx Bas Heijmen, for sharing.

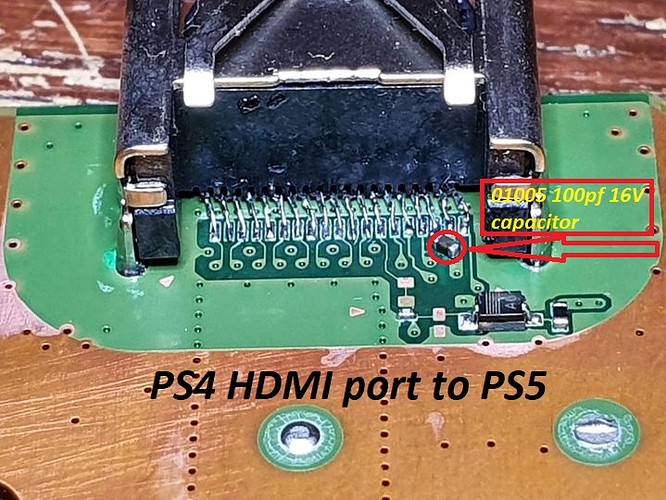

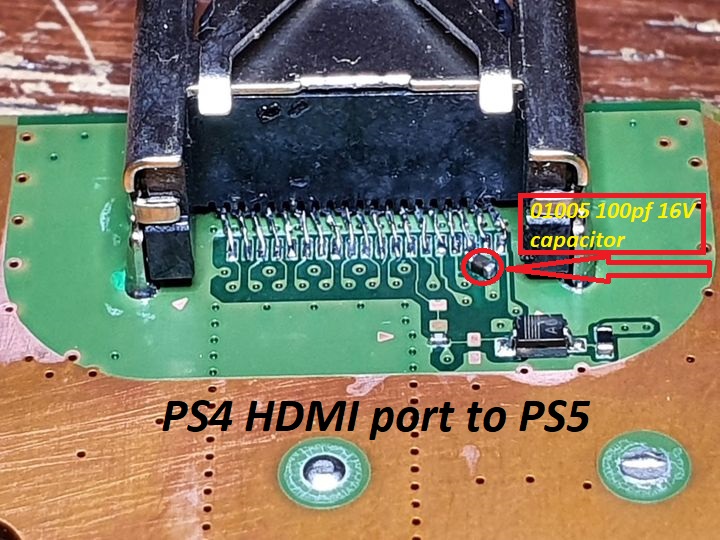

Replaced the cap with a 01005 100pf 16V capacitor and its working now.

pjhcast · January 2, 2021, 4:40am

Did you add a cap between pins and pins? Friend?

FXDX · January 2, 2021, 7:42am

The one who made the repair is called @Bas Heijmen

hobbit666 · January 2, 2021, 3:20pm

Was this from a faulty PS5 (already ) or is this a “it can be done” type situation.

FXDX · January 2, 2021, 4:07pm

PS5 HDMI port faulty.

hobbit666 · January 2, 2021, 5:10pm

Wow didn’t expect to see repairs so soon.
Bit well done on the fix

jkyoho · January 9, 2021, 10:26pm

NICE WORK. any reason replacing this cap with a big one? what was the old cap spec?

FXDX · January 10, 2021, 7:50am

Sorry but do not know.

Timarius4 · January 18, 2021, 9:25am

@FXDX can repair my ps5 the hdmi port broke

FXDX · January 18, 2021, 4:30pm

Yes. I am from Romania. You?

jkyoho · January 22, 2021, 10:17pm

I just had a chance replacing the HDMI port today, and I measure the small cap on pin 17-18 is around 40-50pf

FXDX · January 23, 2021, 8:11am

Does the console work well?

jkyoho · January 23, 2021, 1:21pm

yes, works well but jumper all pins really takes huge amount of patient

FXDX · January 25, 2021, 7:36am

Right
