I have a short on 3 capacitors on my motherboard. They are at the F7502 area and are all next to each other. I can’t find where it’s coming from. I have a EDM-010 motherboard. Anyone that can help me?
- Is F7502 blown/open?
- Do you have short on F7001/F7002?
- Do you have voltage injection/bench power supply?
F7502 is not blown or open. No shorts on f7001/f7002. I have access to a bench power supply but what do I have to do then?
Im sorry I have a open circuit on F7001 I see now.
remove and bridge F7001 then inject 1v~1.5v at 2A~5A into the bridge, if it draws a lot of current you should able to find what getting hot by you hand/palm even without thermal camera
No short on the rail of F7001 I just think it’s the fuse itself that’s broken
if you have F7502 not blown but short on those caps, you should also have short on F7001/F7002 AND F7003 since these 7001/7002/7003 fuse are all interconnected on same 5v standby rail
Yea i can’t explain. I have a photo of the caps that are short but can’t send it here. I don’t know for sure if they are on te same rail as F7502. It a little to the right of F7502. Can I send u the photo?
Send photo to imgur or somewhere and post link in form of imgur(dot)com/x/x

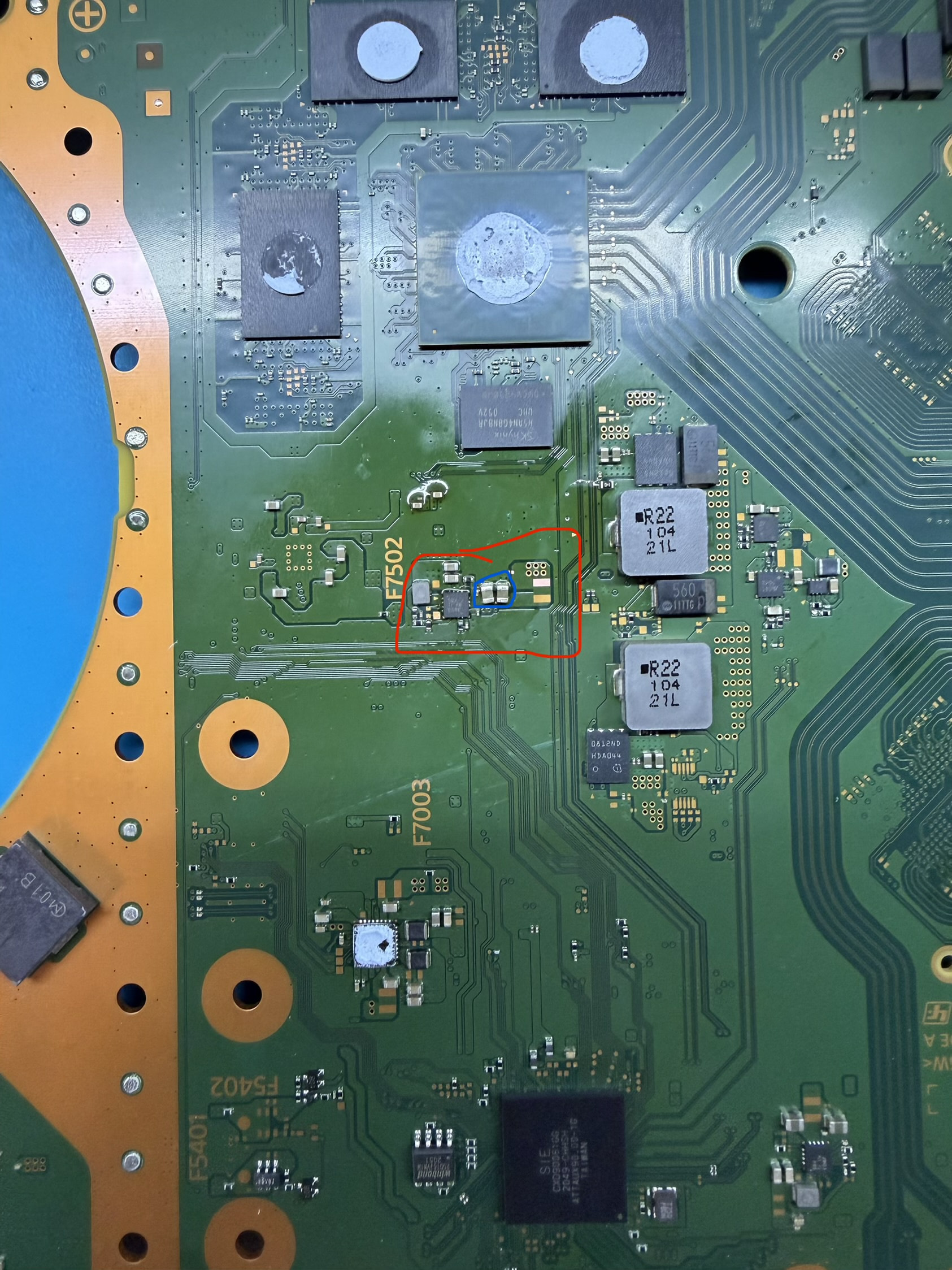

imgur .com/ a/UogUVIp This is the link. The caps circled in blue are showing short. Soldered them off 1by1 but still short.
