Ps5 slim no display still after port replacement

PS5 Questions PS5 Slim
1

I have replaced a ps5 slim broken hdmi port. Tested all pins are solid but still no display with blue light to white light on. Filters are fine.

When console is turned on I have tested all 19 pins voltage. Pin #13 is only 3v. Pin 18/16/15 have normal 5.1v. I have another working slim console this pin 13 has a normal 4v when turned on. HDMI encoder Nuvoton

Any idea guys?

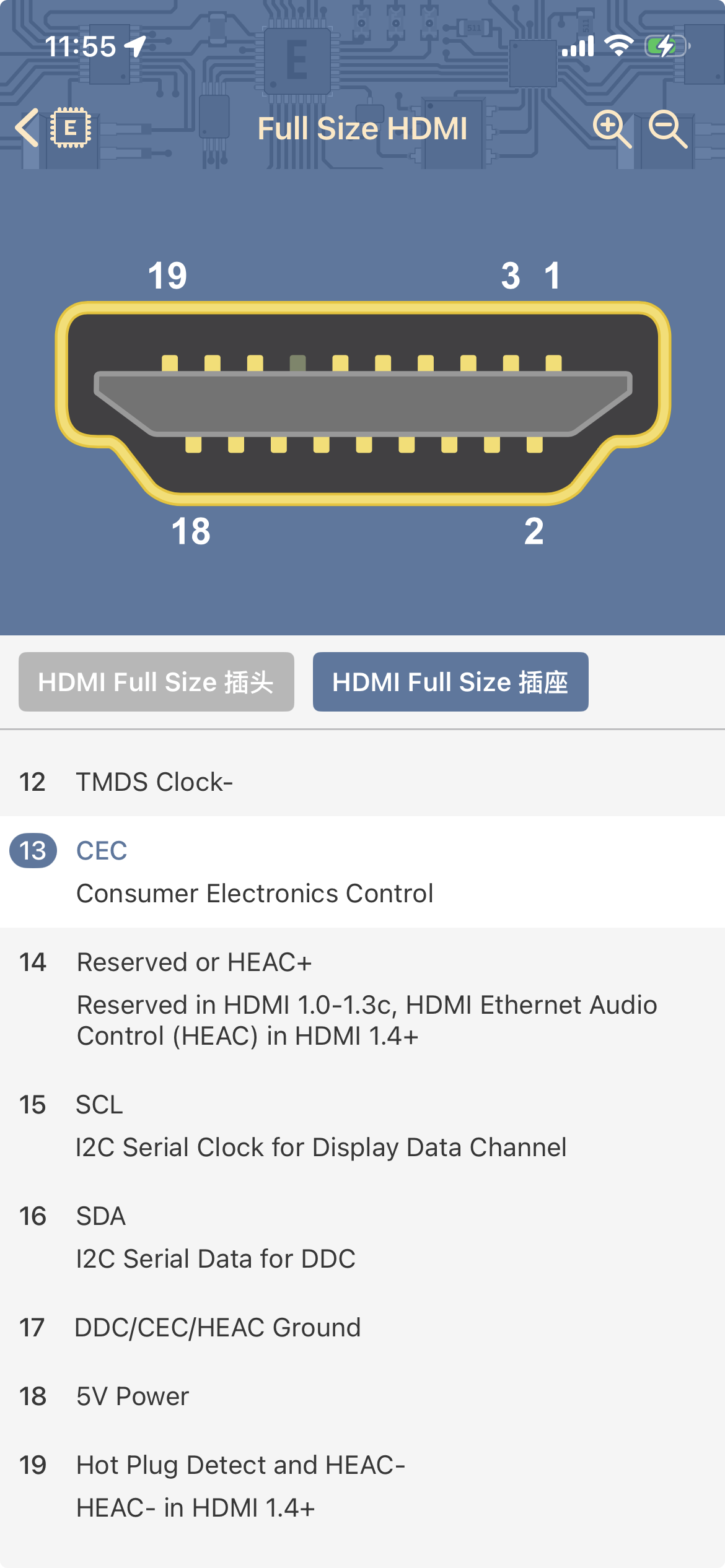

ζˆͺ屏 2025-12-01 上午11.55.58
ζˆͺ屏 2025-12-01 上午11.55.581170Γ—2532 251 KB

2

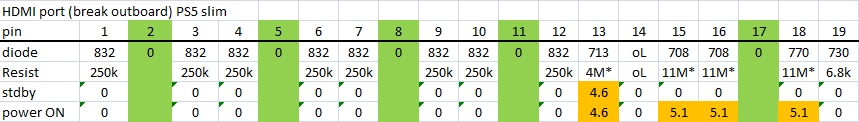

HDMI_port_readings_all_PS5slim
HDMI_port_readings_all_PS5slim859Γ—122 4.89 KB

This are my readings from a working PS5 slim.

If pin 13 is low I would check the big diode at the HDMI port and there should be one cap also on this line.
