PS5 slim no video output

PS5 Questions PS5 Slim
1

Hi guys. PS5 slim EDM-040. Boots normally without video outpput. Checked hdmi port and it is fine with solid pins. Three zener diodes multimeter forward measurement shows a voltage drop of around 0.5V, but reverse measurement shows also a voltage drop instead of OL. I have another working motherboard where zener diodes reverse measurement are all “OL”. The zener diode itsself is fine because I have tested it and replace with a new one and voltage drop still exist.

It is maybe a faulty HDMI encoder

IMG_5217
IMG_52171920×2560 1.12 MB

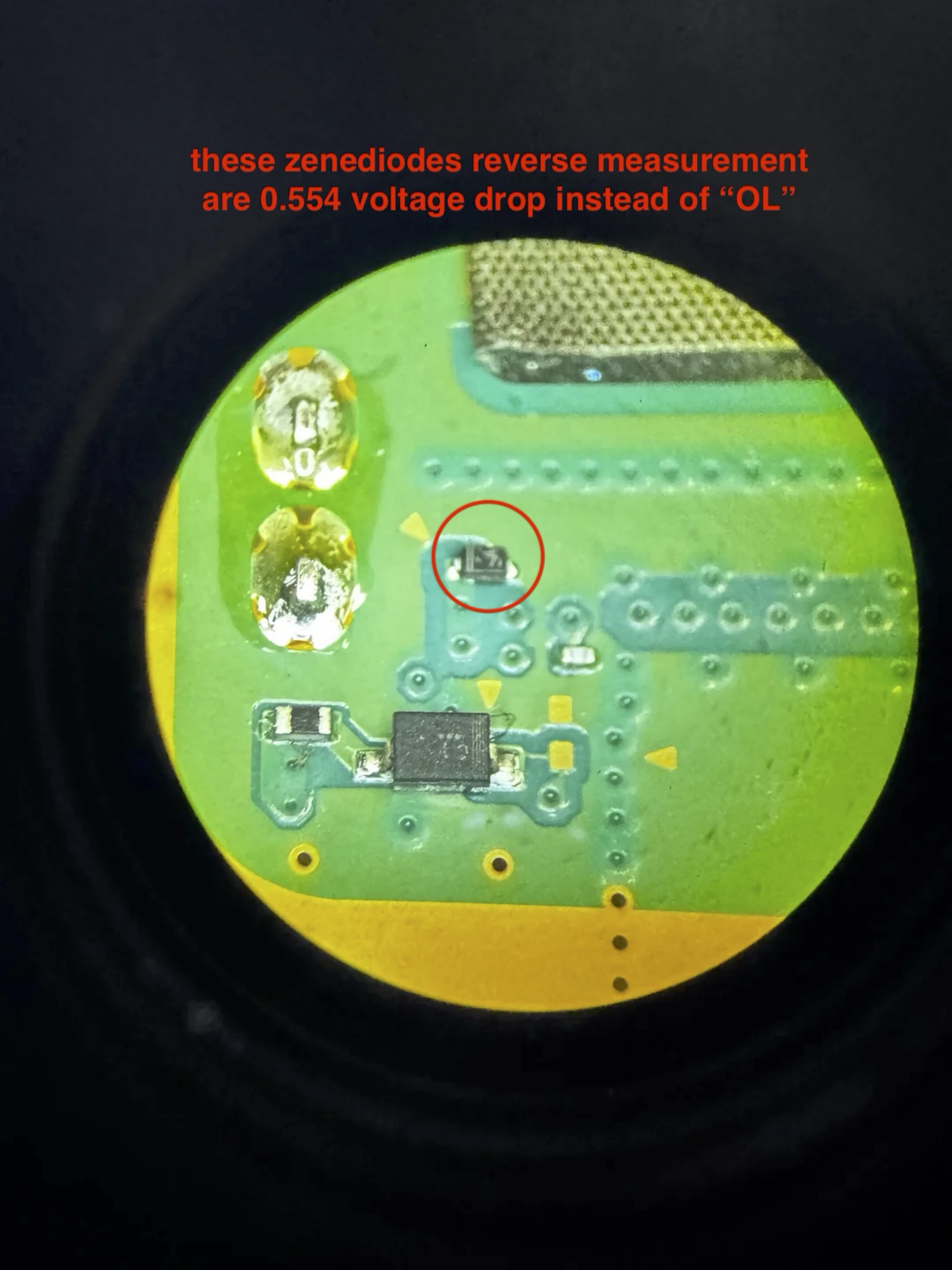

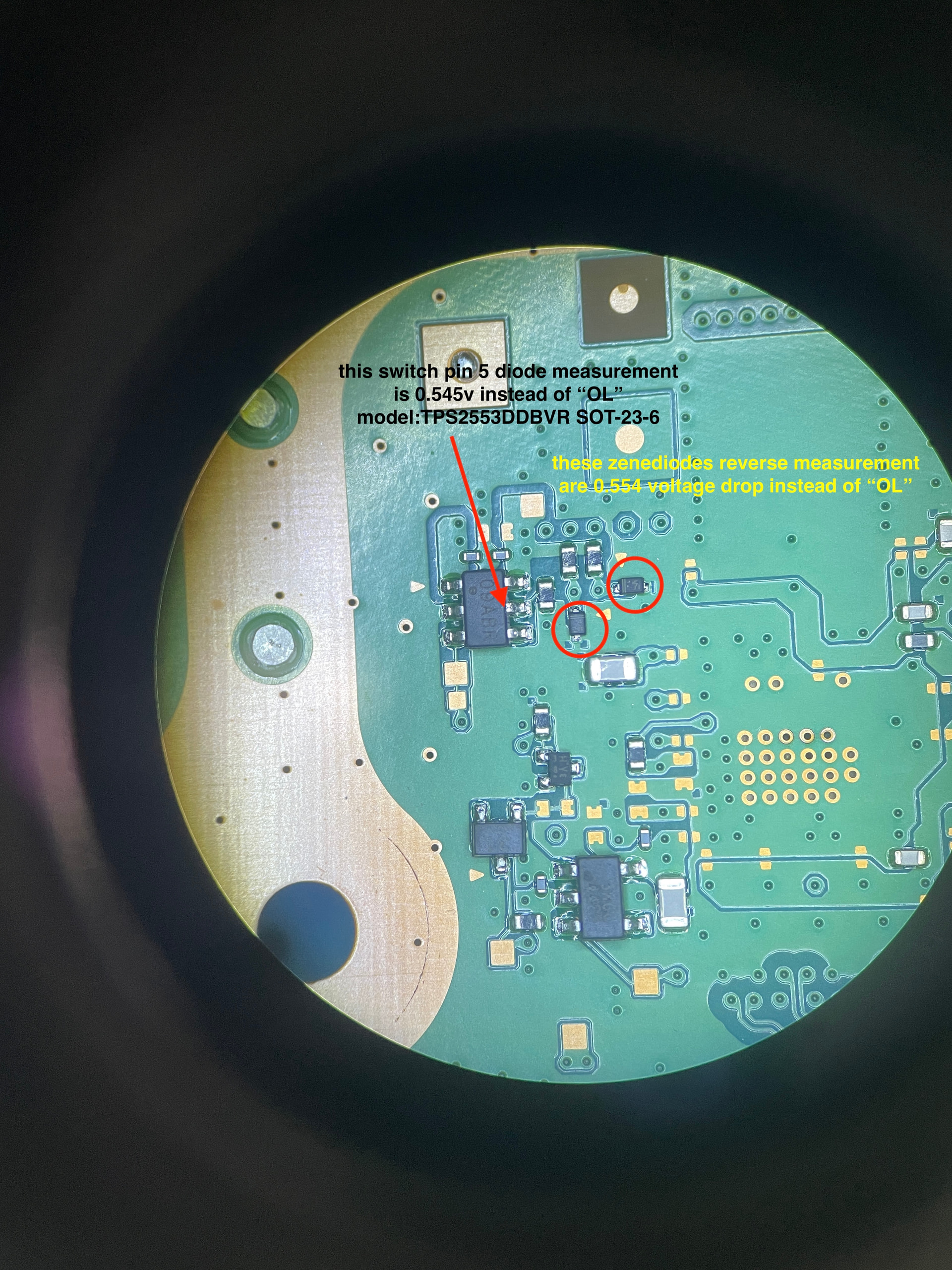

zener diode measurement
zener diode measurement2160×2880 464 KB

or somewhere is shorted?

2

I would check the readings at the HDMI port:

HDMI_port_readings_all_PS5slim
HDMI_port_readings_all_PS5slim859×122 4.89 KB

At the Zener diodes I would expect one way aprox 0.7V and reversed OL in diode mode.
And at the Zener diode near the HDMI port one way ap. 0.7V and reversed 1.2V.

1 Like
3

May thanks. I have replaced hdmi encoder Nuvoton MN864739 and it is working. I have several Panasonic spare chips but afraid it is not compatible so bought Nuvoton same brand

4

Nuvoton is only the new owner of Panasonic Semiconductor and therefore the newer chips have the new name on it. The HDMI chip itself is the same.

1 Like
