Hello everyone
I have got a switch from my friend,he said it dead with Orange screen,and he sent to repaire but failed. now the switch cannot display anything, and no charging icon.I don’t have the repaire schema,I have read some topics here,
now the motherboard looks only wifi ic was being hot repaired,
I test the battery ,it has 3.8v, and I turned on the motherboard with only battery on

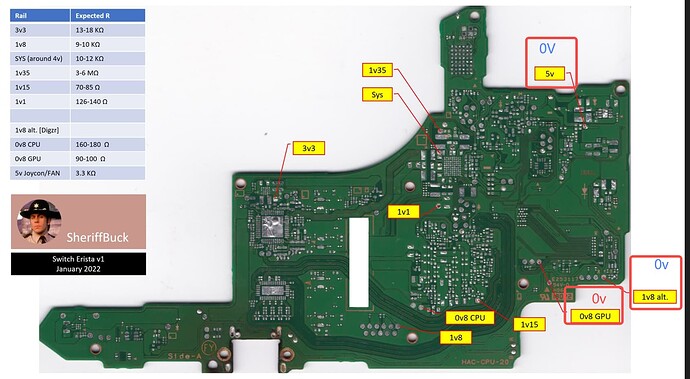

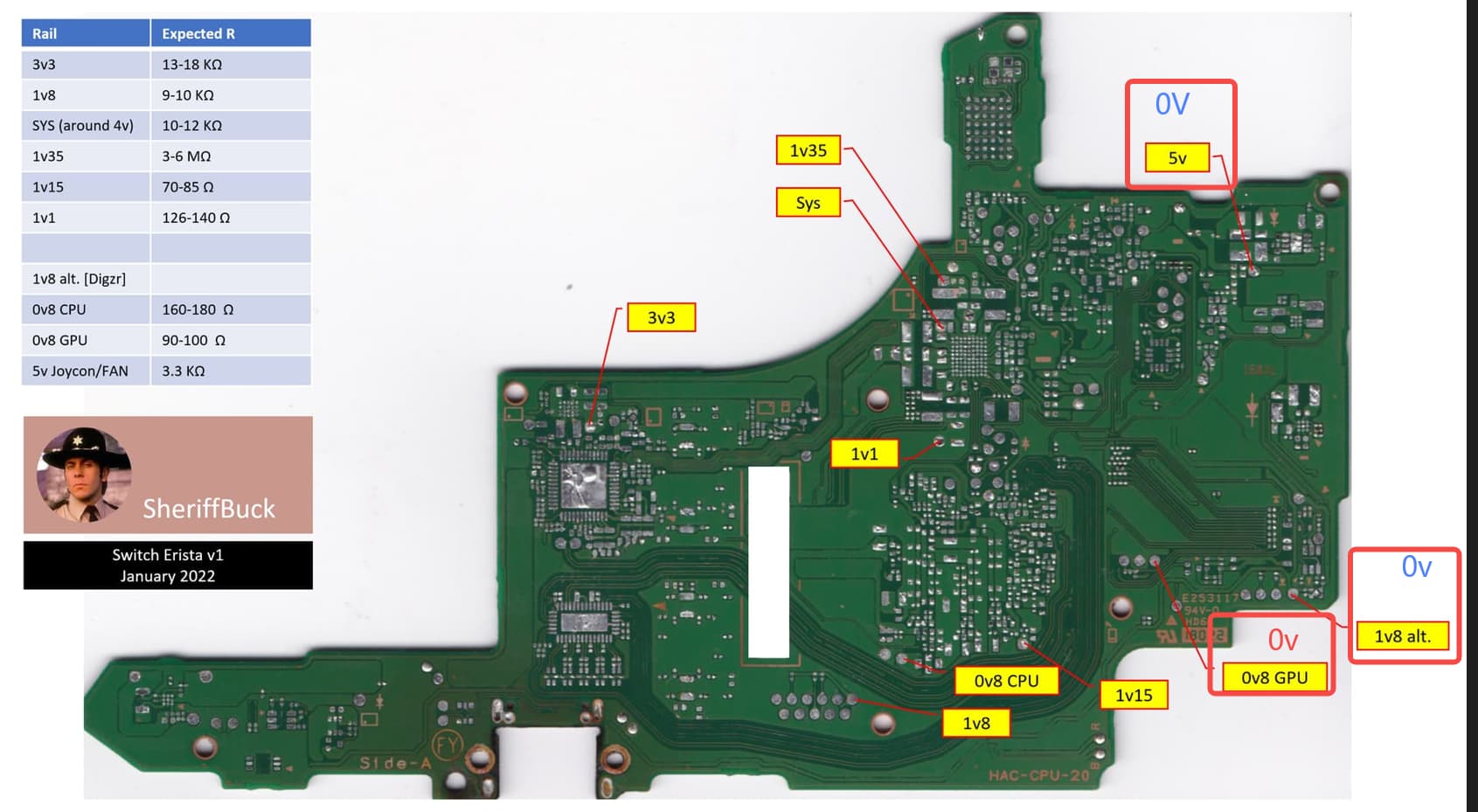

and test the voltage as picture,only have three 0v testpad there i had marked in picture,
-
I used the offical charger to charge, got a 15v,0.465a
-
the lcd connector around I had tested,no +5v and -5v
-
the max77620 voltage i had tested the stage 1 is ok. and no short,but no stage 2
-
the wifi ic 80% is broken,but i had test the wifi area capacitance no short
-
the max77621 below cpu output is 0.95v,the one left of cpu has no output
*now I don't have the idea of what to do next,need your help!*
