Nintendo Switch and Nintendo Switch Lite - Diode Measurements!

Nintendo Questions Nintendo Switch
1

I found these pictures on the internet with Nintendo Switch and Nintendo Switch Lite Diode Measurements.
I decided to post them here to help the community. Thanks a lot to @ Steve TheMicrosolderist Ybarra and @ Jeremy Miller , the authors of these pictures, for the hard work and for making them public. I hope it helps us.

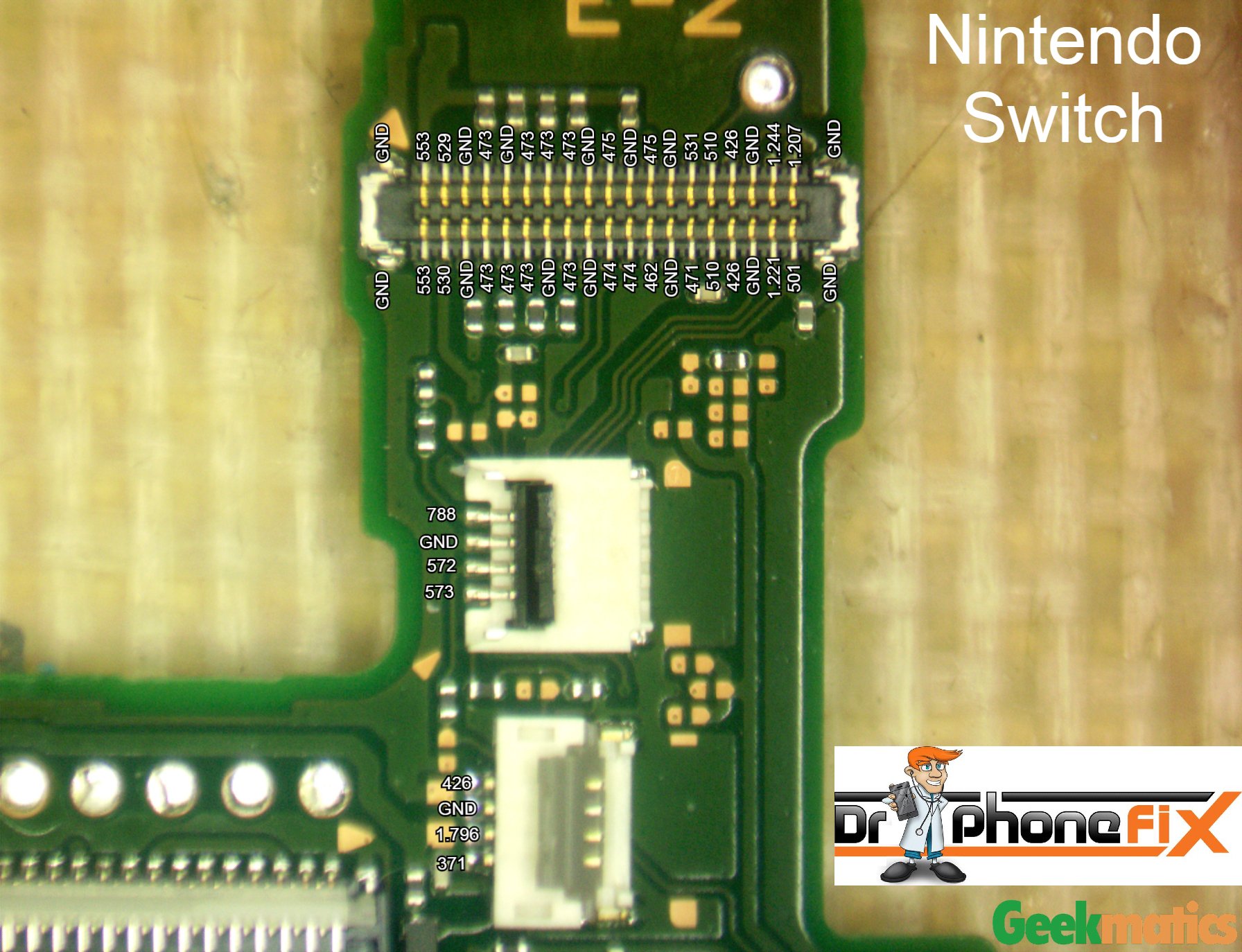

Nintendo Switch Diode Measurements pictures:

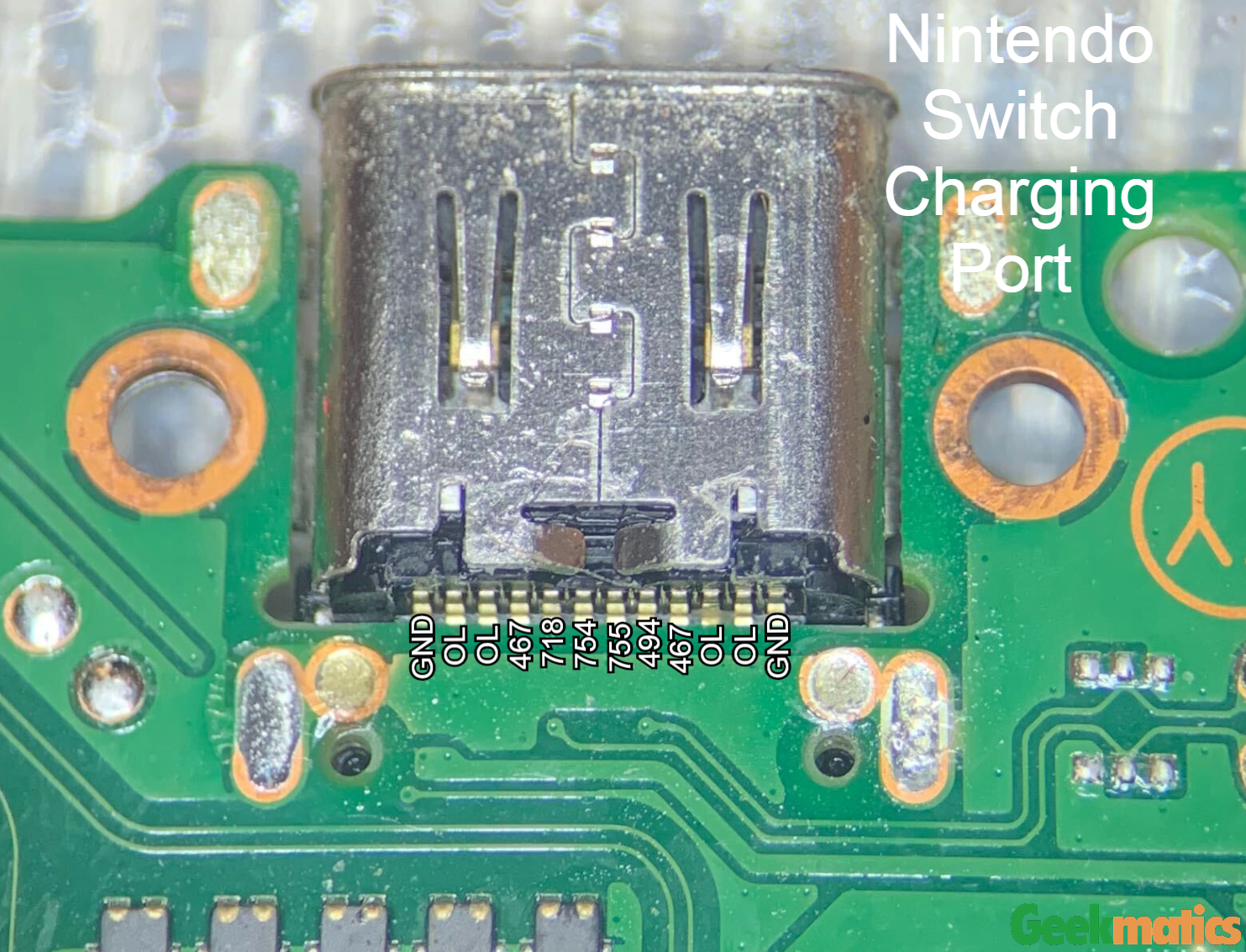

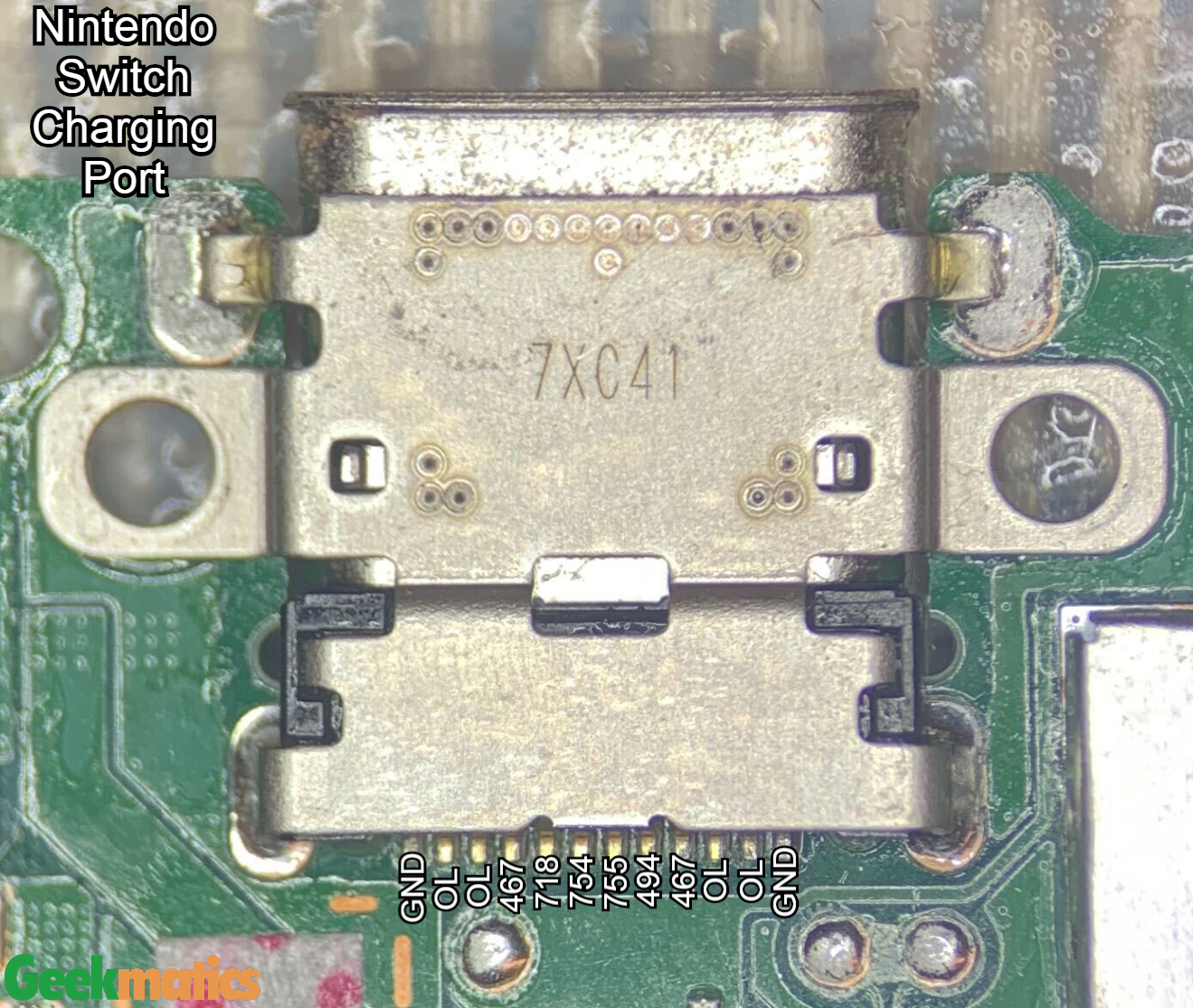

Charging_Port_Edited_2
Charging_Port_Edited_21319Ɨ1115 1.22 MB

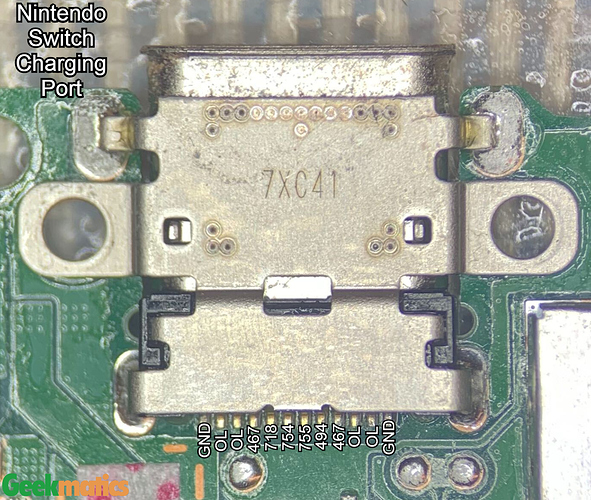

Charging_Port_View_1
Charging_Port_View_11483Ɨ1133 1.41 MB

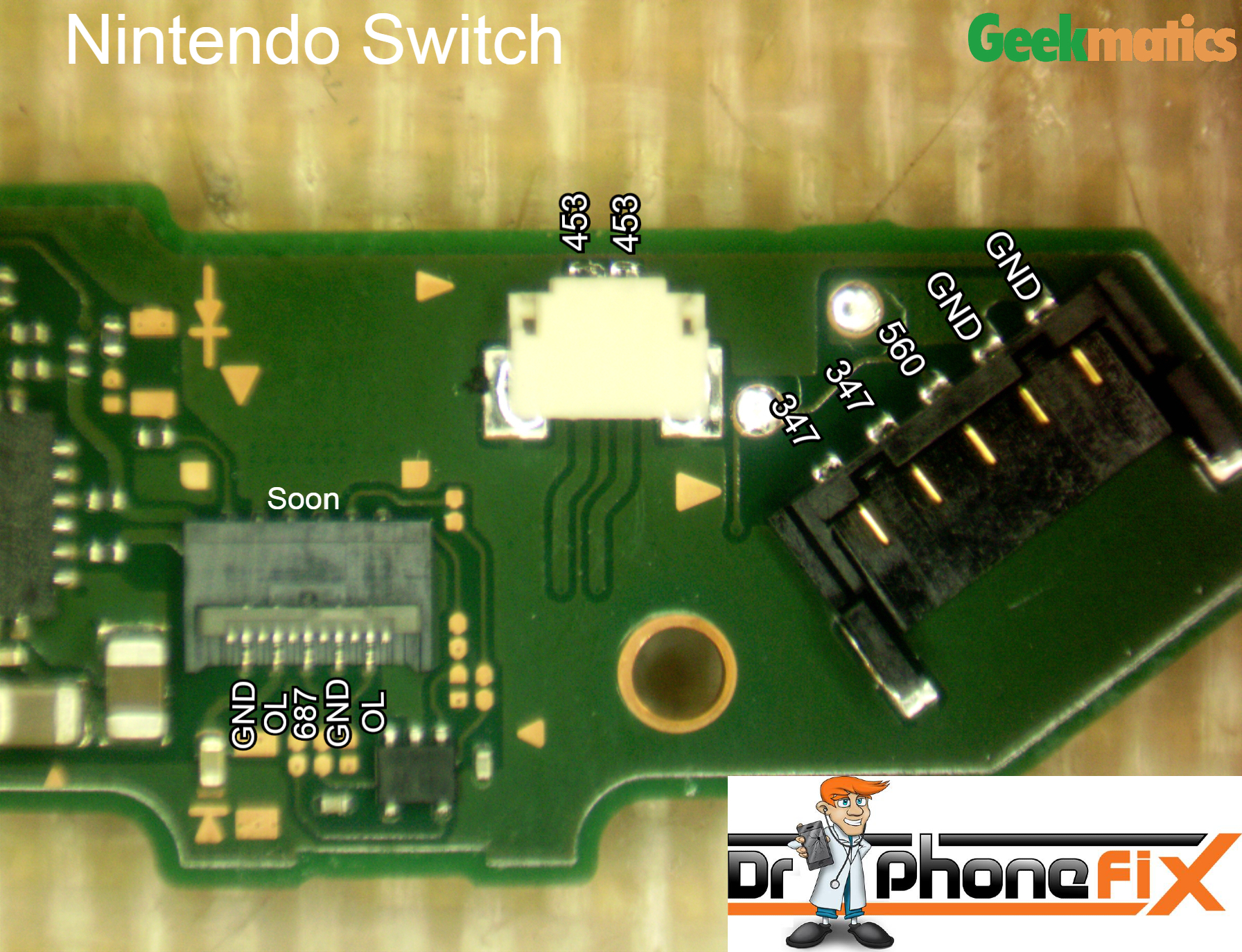

Nintendo_Switch_3_Edited
Nintendo_Switch_3_Edited1792Ɨ1374 2.08 MB

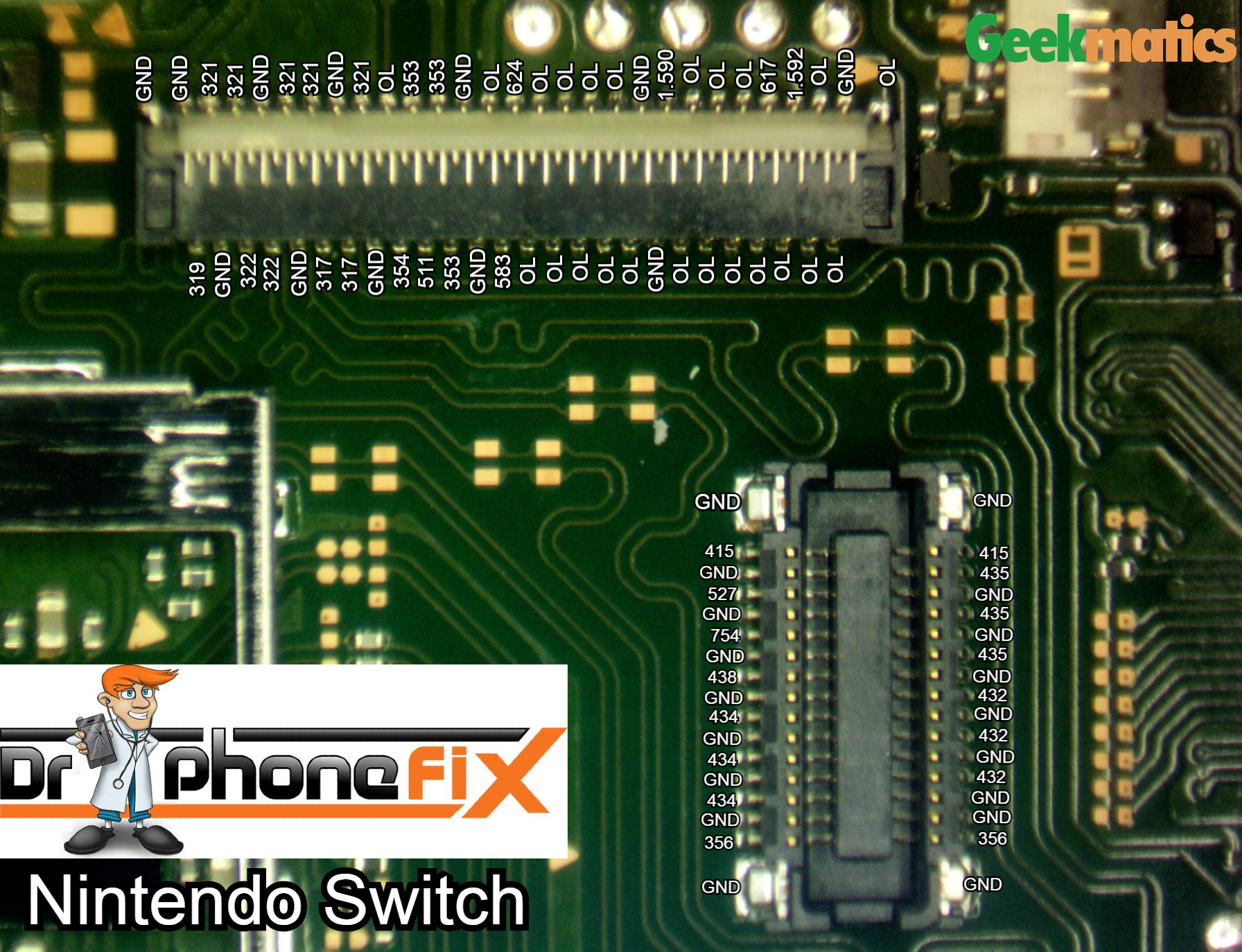

Nintendo_Switch_FPC_1_Edited
Nintendo_Switch_FPC_1_Edited1792Ɨ1374 1.76 MB

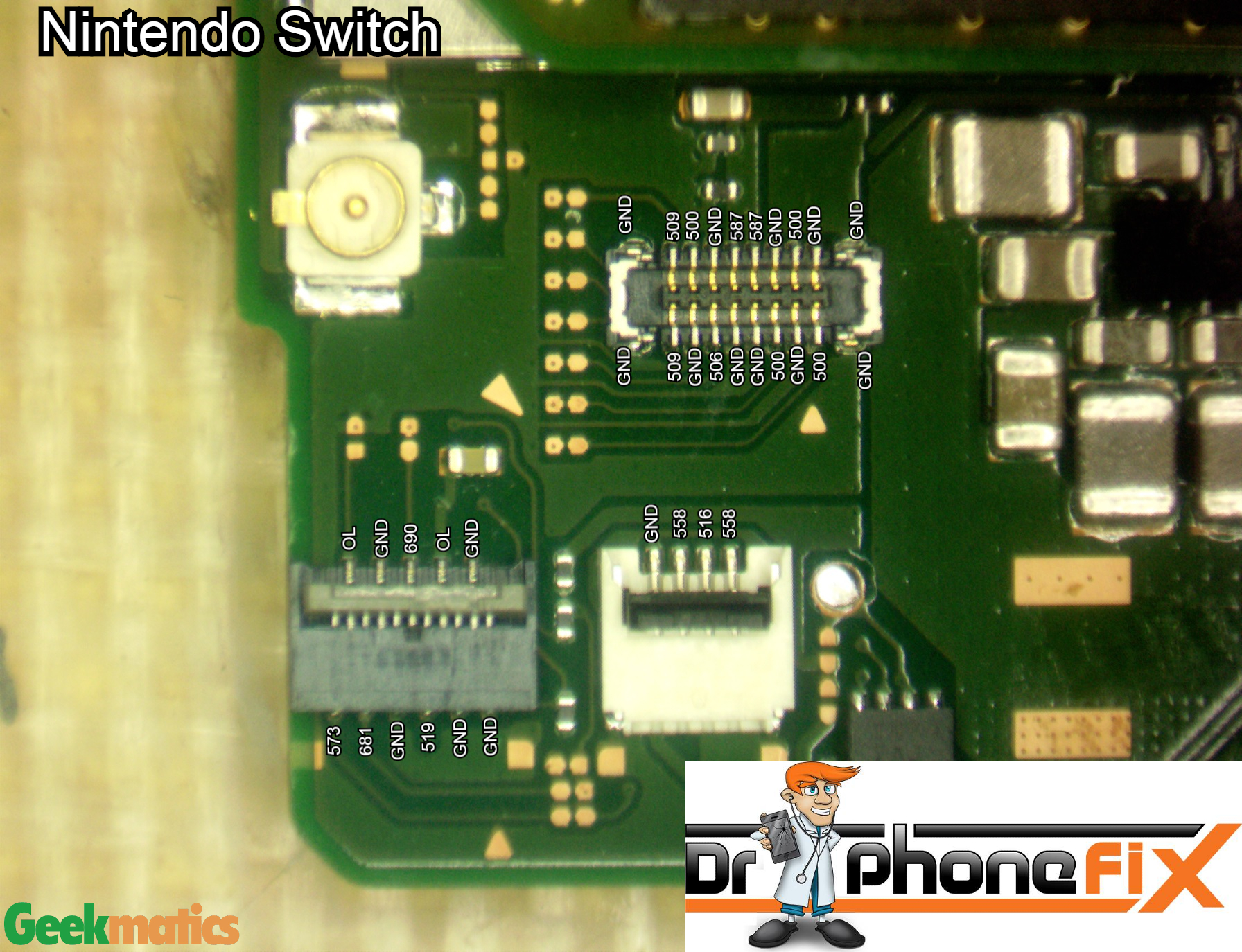

Nintendo_Switch_2_Edited
Nintendo_Switch_2_Edited1792Ɨ1374 2.55 MB
Nintendo_Switch_4_Edited
Nintendo_Switch_4_Edited1792Ɨ1374 2.54 MB

Nintendo Switch Lite Diode Measurements pictures:

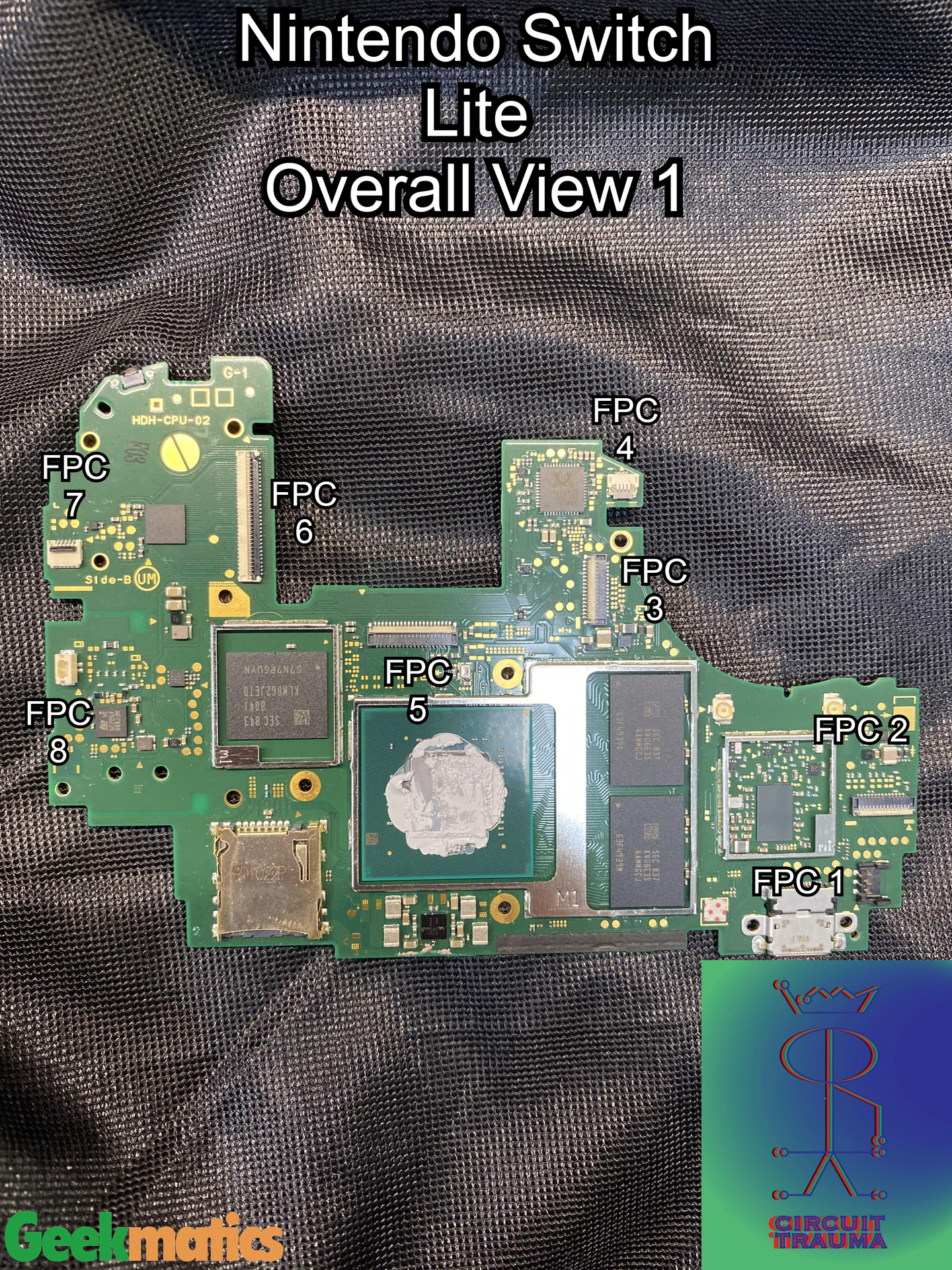

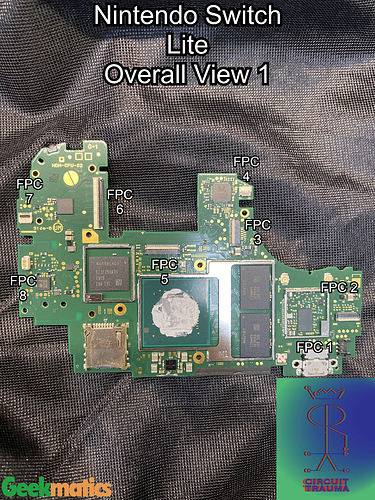

Nintendo_Switch_Lite_Overall_View_1_Edited
Nintendo_Switch_Lite_Overall_View_1_Edited1440Ɨ1920 3.4 MB

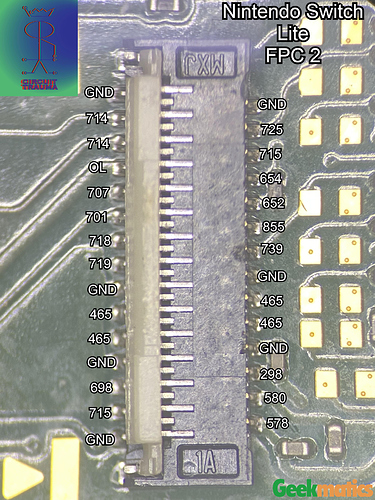

Nintendo_Switch_Lite_FPC_2_Edited
Nintendo_Switch_Lite_FPC_2_Edited1440Ɨ1920 2.14 MB

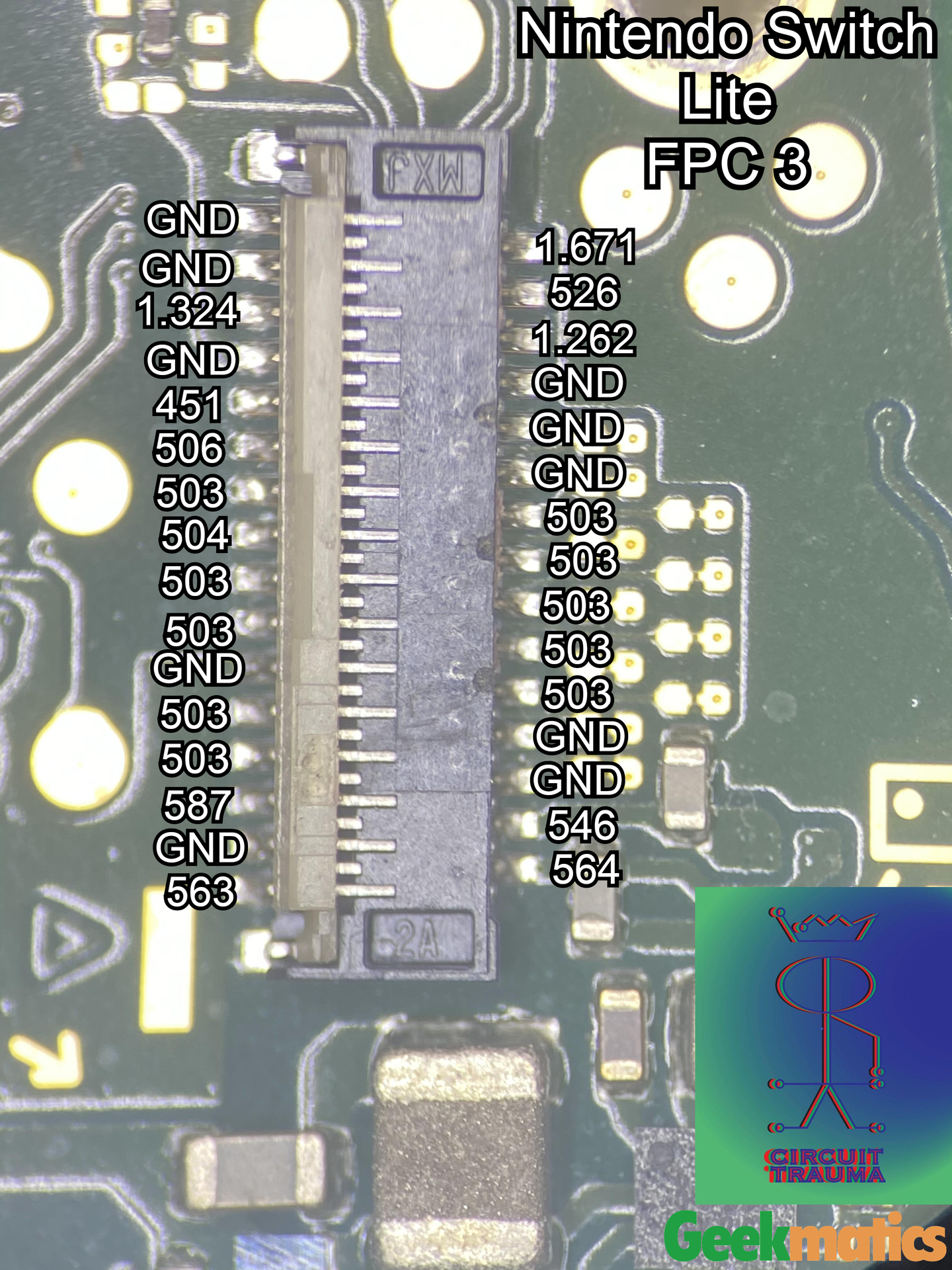

Nintendo_Switch_Lite_FPC_3_Edited
Nintendo_Switch_Lite_FPC_3_Edited1440Ɨ1920 1.97 MB

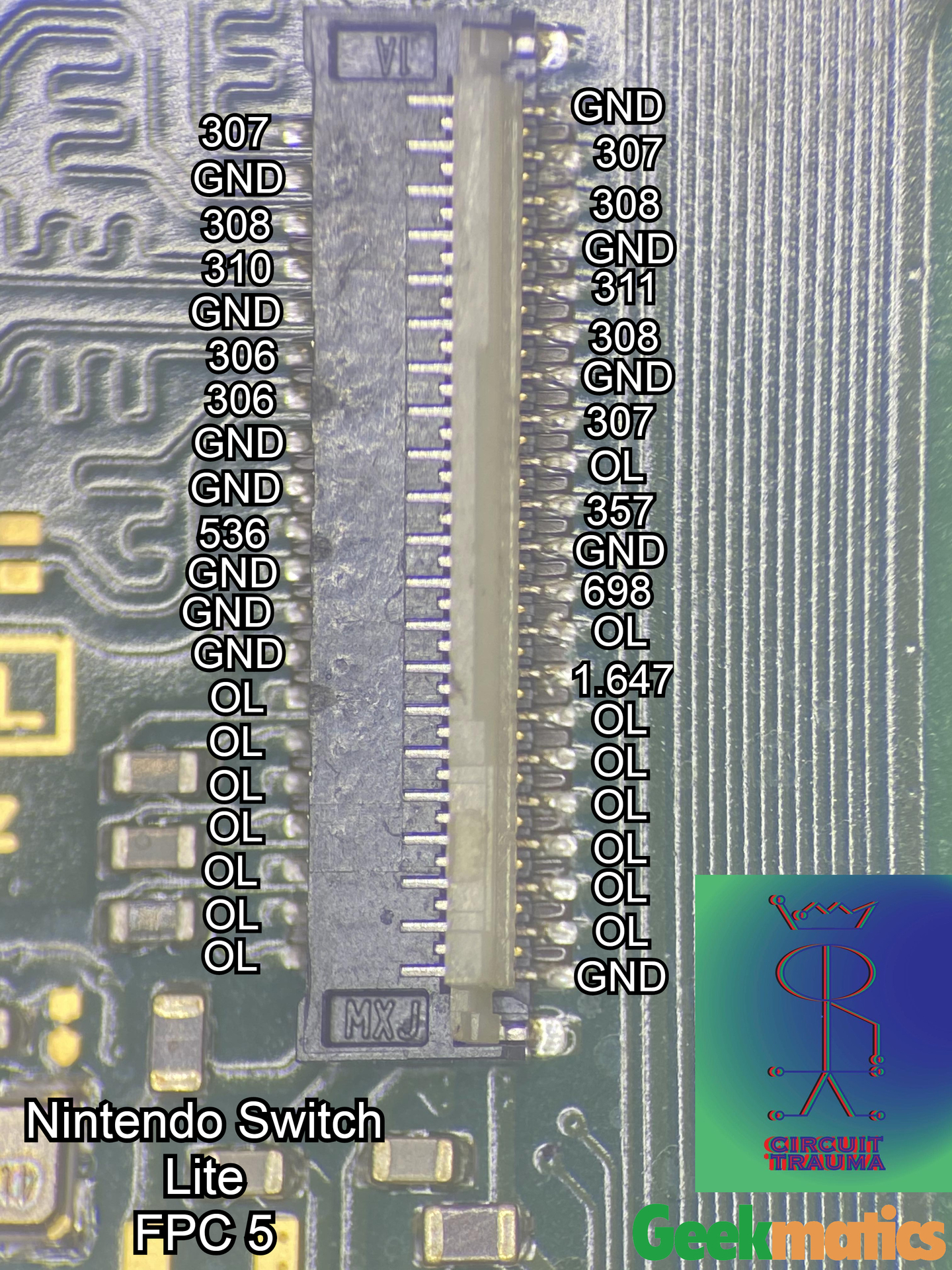

Nintendo_Switch_Lite_FPC_5_Edited
Nintendo_Switch_Lite_FPC_5_Edited1440Ɨ1920 2.45 MB

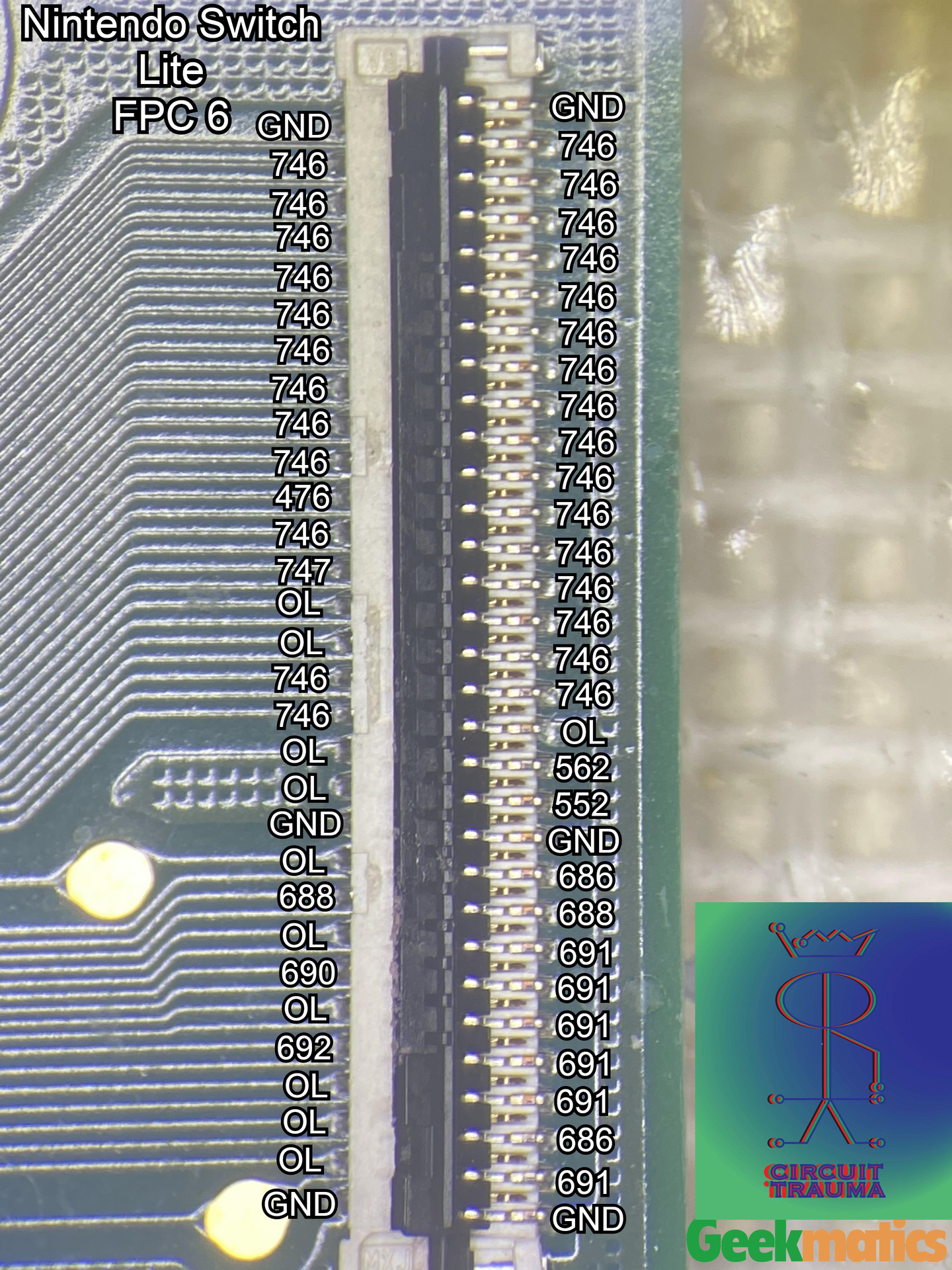

Nintendo_Switch_Lite_FPC_6_Edited
Nintendo_Switch_Lite_FPC_6_Edited1440Ɨ1920 2.27 MB

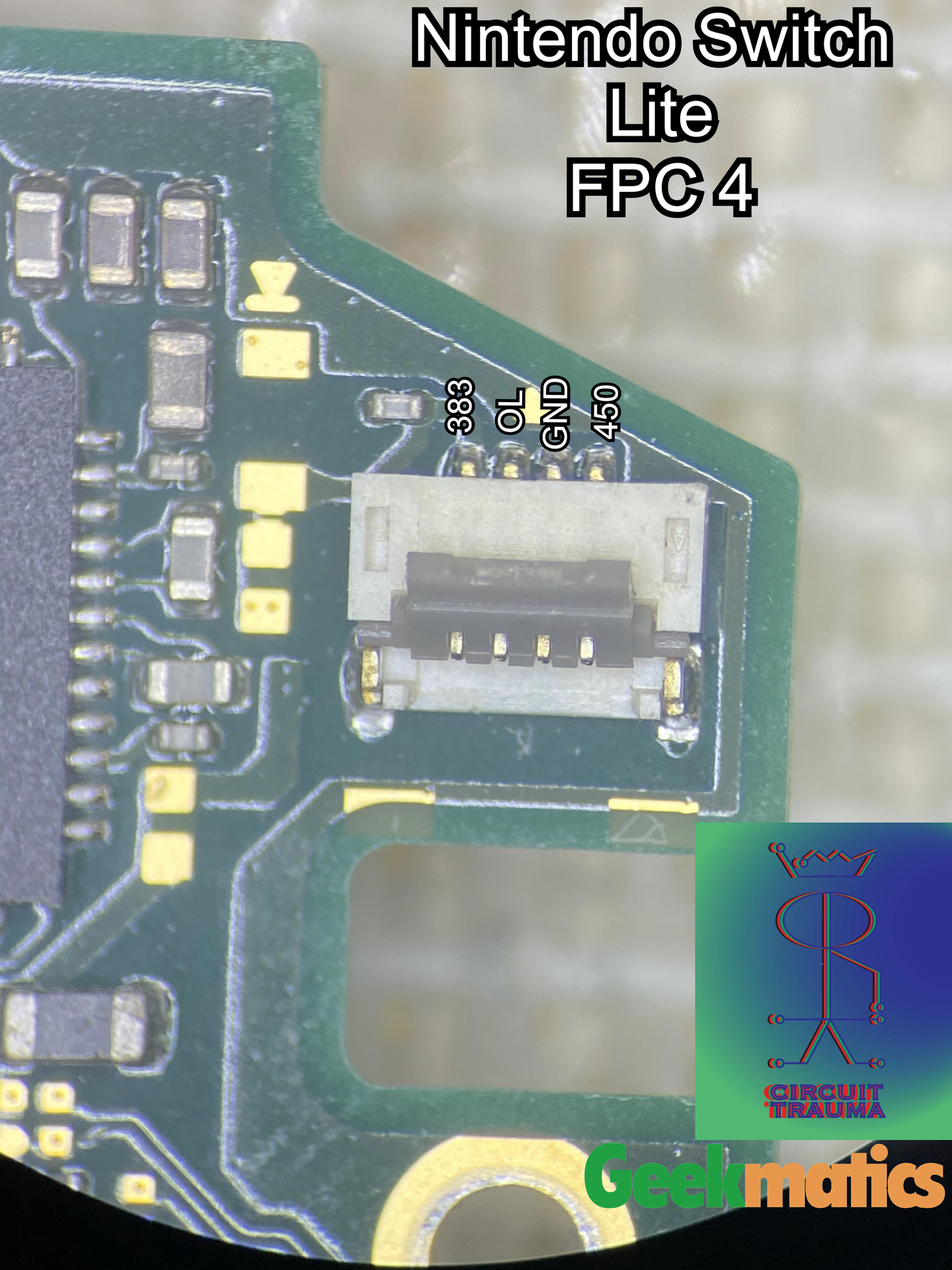

Nintendo_Switch_Lite_FPC_4_Edited
Nintendo_Switch_Lite_FPC_4_Edited1440Ɨ1920 1.69 MB

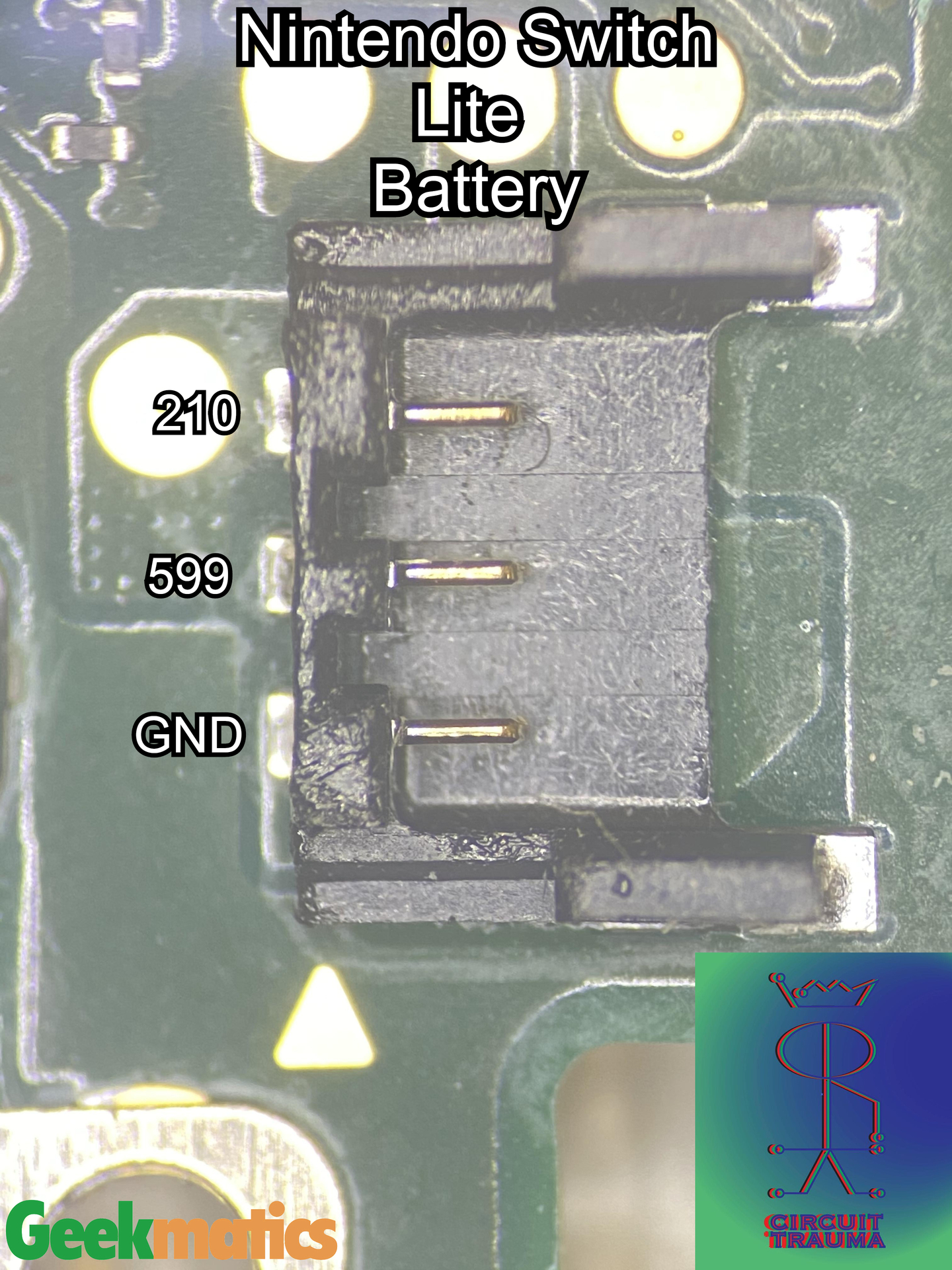

Nintendo_Switch_Lite_Battery_Edited
Nintendo_Switch_Lite_Battery_Edited1440Ɨ1920 1.72 MB

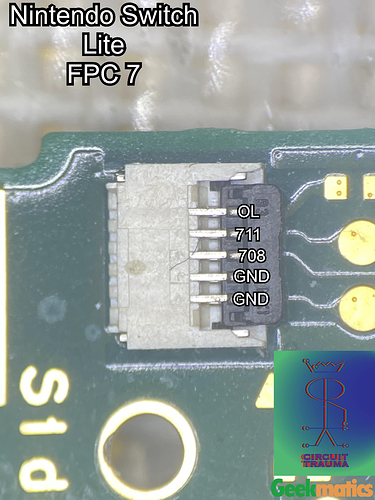

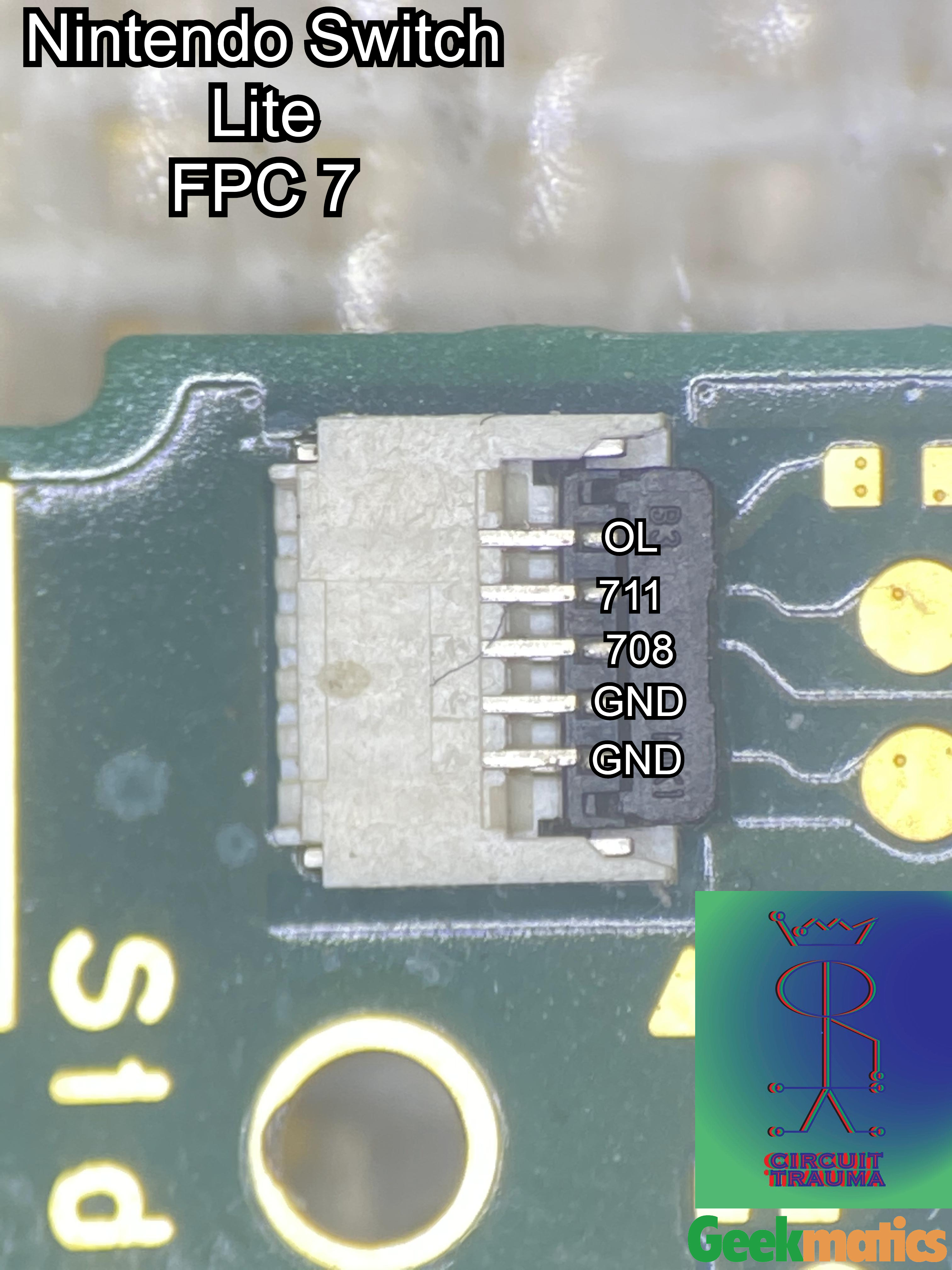

Nintendo_Switch_Lite_FPC_7_Edited
Nintendo_Switch_Lite_FPC_7_Edited2880Ɨ3840 3.79 MB

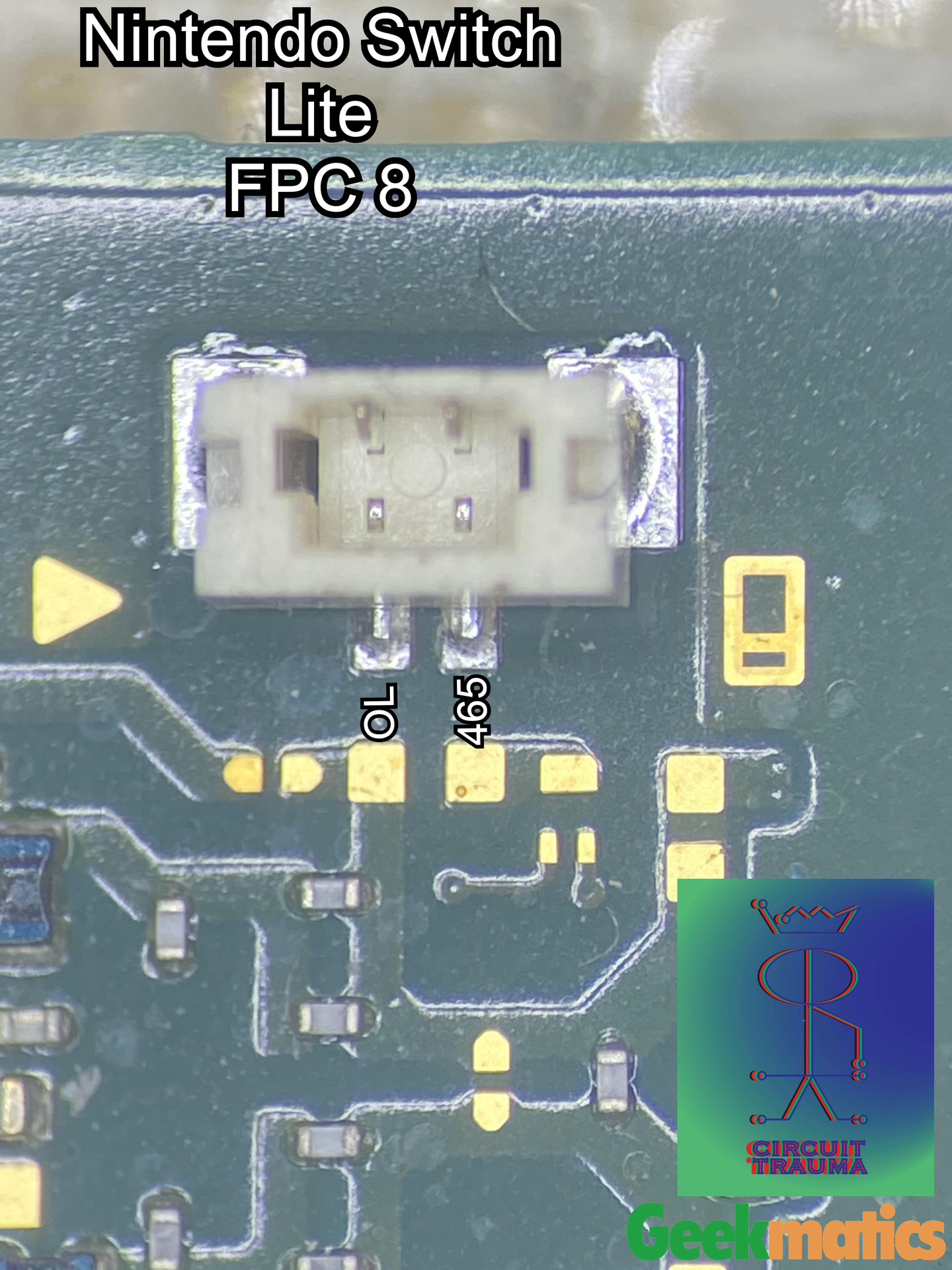

Nintendo_Switch_Lite_FPC_8_Edited
Nintendo_Switch_Lite_FPC_8_Edited1440Ɨ1920 1.64 MB

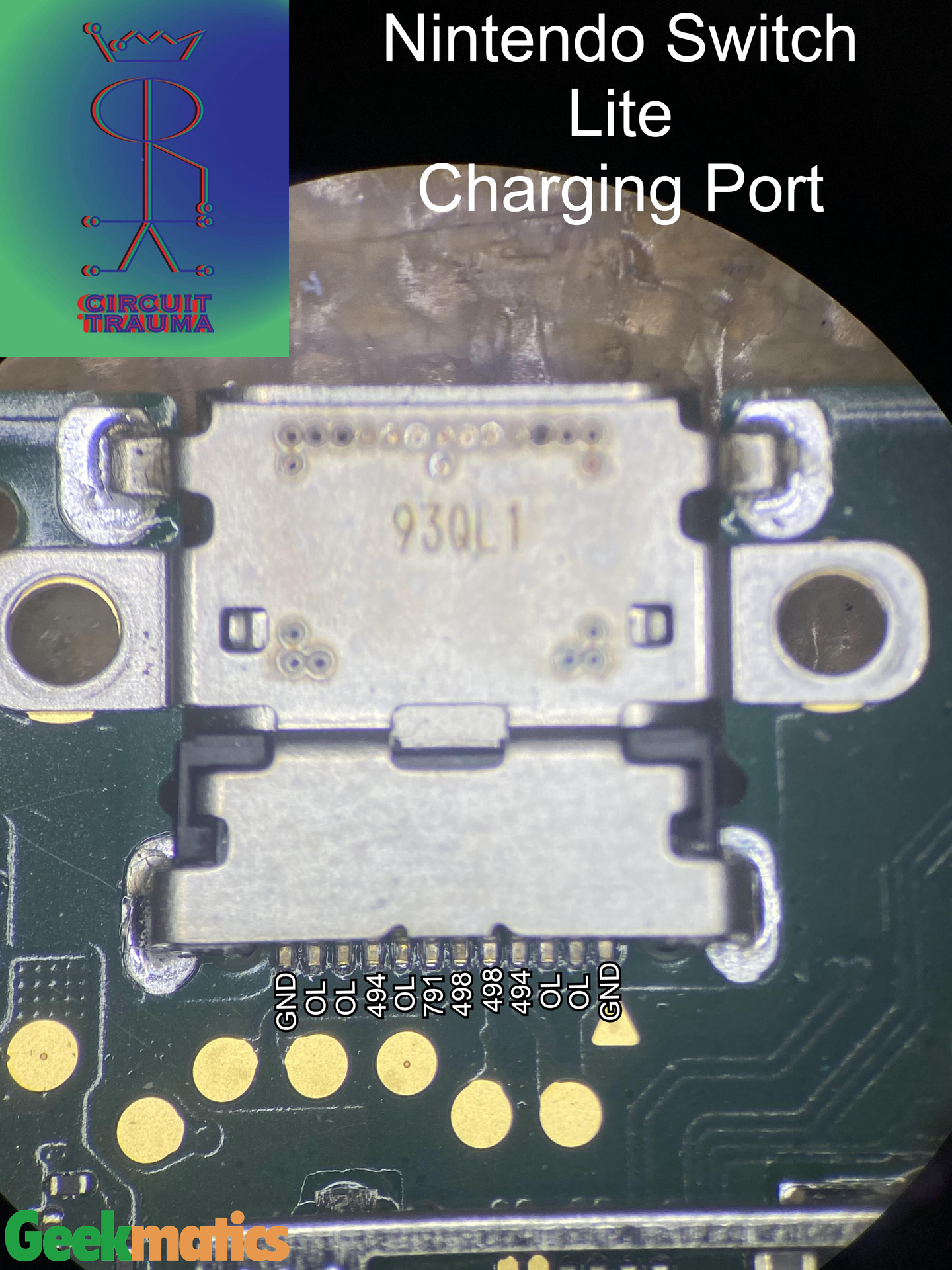

Switch_Lite_Charging_Port_1_Edited
Switch_Lite_Charging_Port_1_Edited1440Ɨ1920 1.88 MB

2 Likes
2

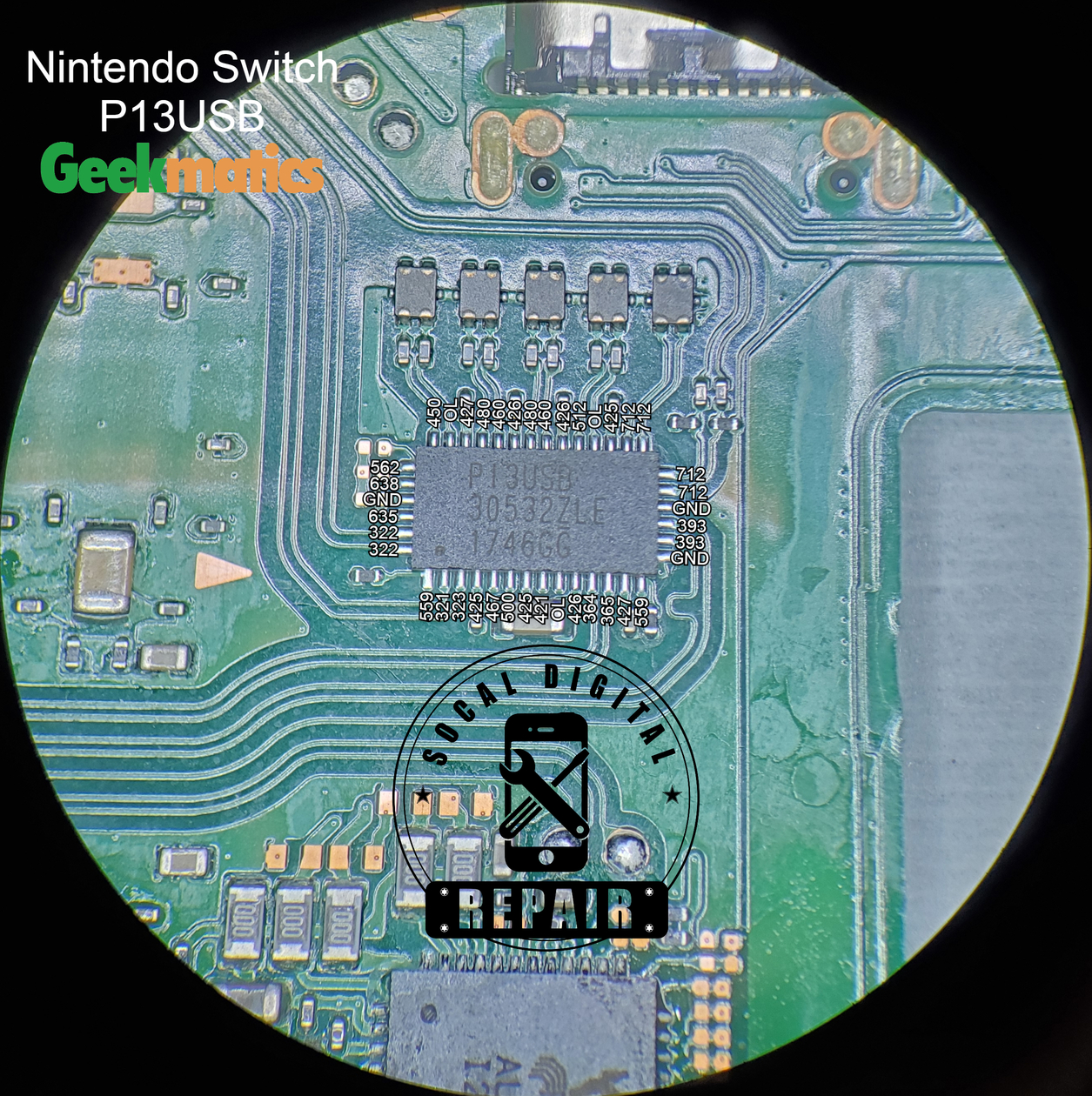

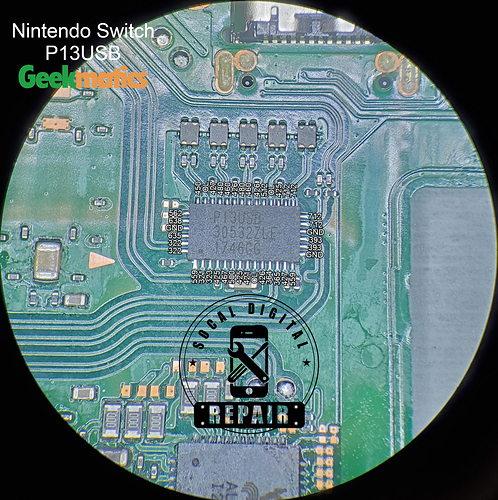

Nintendo Switch P13USB Diode measurements

Switch_P13USB_Edited
Switch_P13USB_Edited1255Ɨ1260 1.7 MB

3

Hello guys, whats that chip under the CPU in switch lite board? Is surrounded by filters or inductors?

4

Hi guys any advice would be much appreciated. I have a switch lite with damaged USB port. So replaced it there was some shorts around mt92
So replaced that short had gone great. Still no voltage to the battery terminal. So replaced bq chip still the same.

Looks like Iā€™m getting some different readings from these pictures in diode mode.

Particularly on fpc7 I get 700 on bottom pin instead of GND
and on fpc8 I get 465 on both pins.

anyone got any ideas what might be wrong?

1 Like
5

Screenshot_20221208_201017
Screenshot_20221208_201017702Ɨ776 129 KB

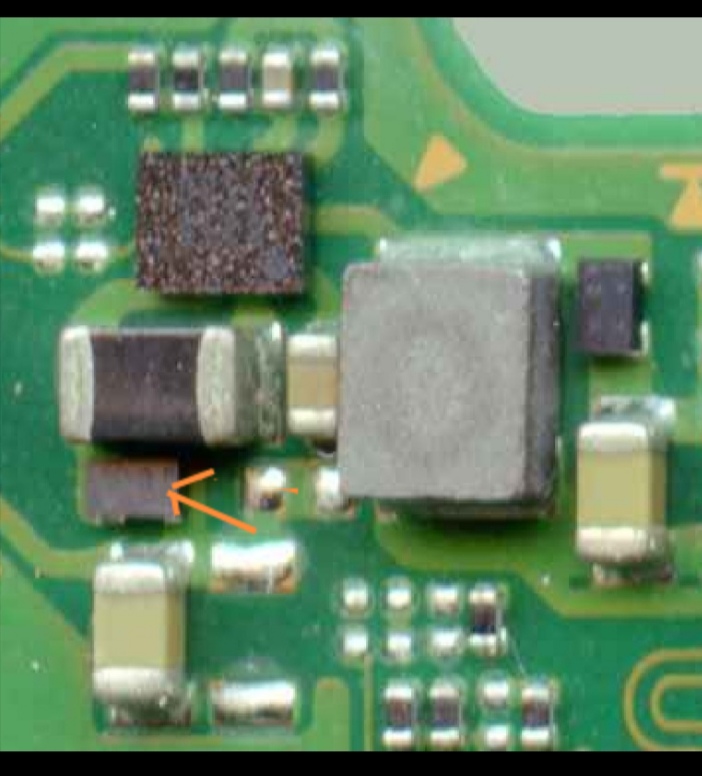

Hello name composant Switch lite

6

Diode ? fusible ?please
